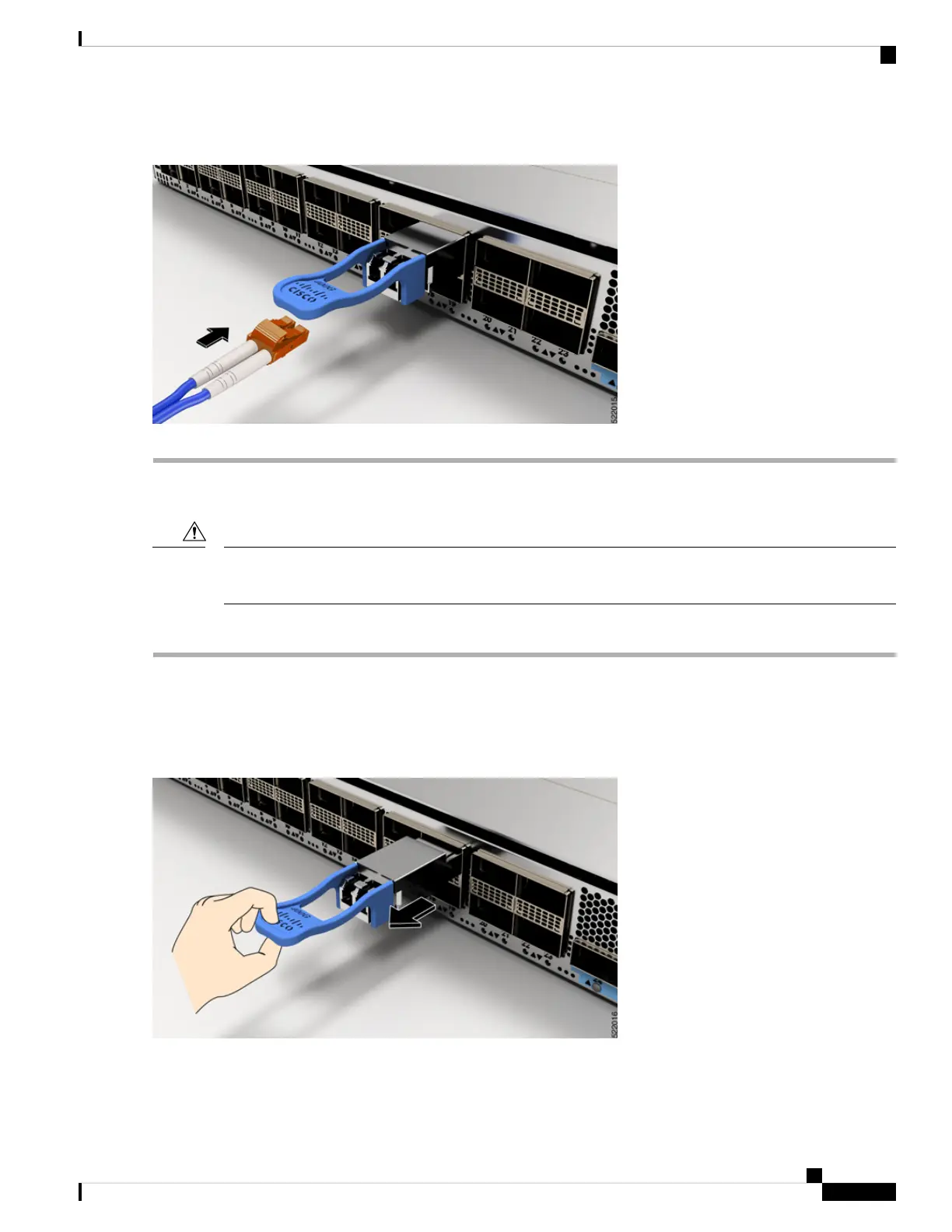

Figure 16: Cabling a Transceiver Module
Removing the QSFP Transceiver Module
The QSFP transceiver module is a static-sensitive device. Always use an ESD wrist strap or similar individual
grounding device when handling transceiver modules or coming into contact with modules.
Caution
To remove a QSFP transceiver module, follow these steps:
Step 1 Disconnect the network interface cable from the transceiver connector.
Step 2 Install the dust plug immediately into the transceiver’s optical bore
Step 3 Grasp the pull-tab and gently pull to release the transceiver from the socket.
Figure 17: Removing the QSFP Transceiver Module
Step 4 Slide the transceiver out of the socket.
Connect Router to the Network
19
Connect Router to the Network
Removing the QSFP Transceiver Module
