Step 5 Place the transceiver module into an antistatic bag.
Installing and Removing CFP2 Modules
Before you remove or install a CFP2 module, read the installation information in this section.
Invisible laser radiation may be emitted from disconnected fibersor connectors. Do not stare into beams
or view directly with optical instruments. Statement 1051
Warning
The CFP2 module is a static-sensitive device. Always use an ESD wrist strap or similar individual grounding
device when handling the CFP2 modules or coming into contact with the modules.
Caution
Installing a CFP2 Module
To install a CFP2 module, follow these steps:
Step 1 Attach an ESD-preventive wrist or ankle strap and follow its instructions for use.
Step 2 Align the CFP2 module into the transceiver port socket of the line card.

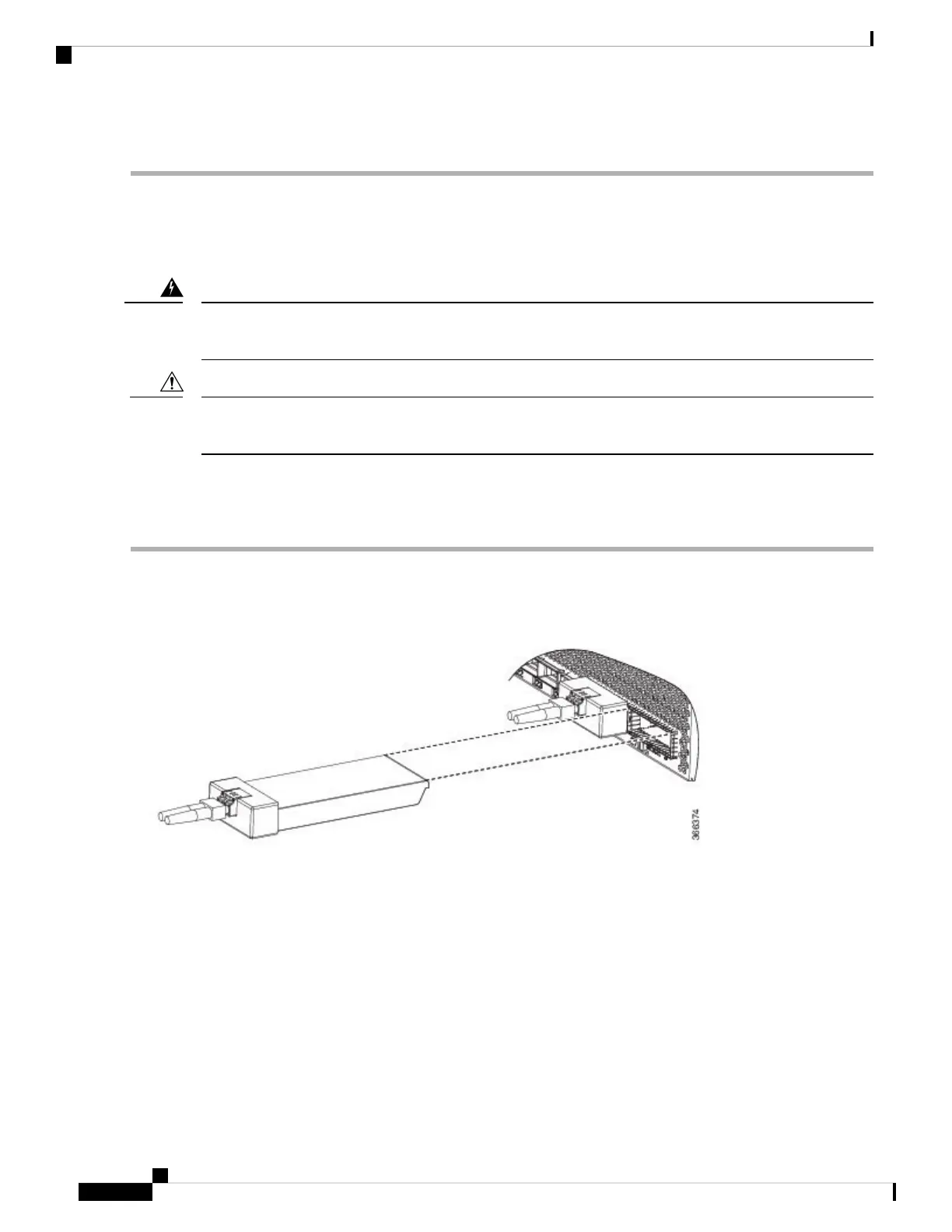

Figure 18: Aligning a CFP2 Module into a Port Socket
Step 3 Slide the CPT2 module in until the EMI gasket flange makes contact with the line card faceplate.
Step 4 Press firmly on the front of the CFP2 module with your thumbs to fully seat it in the transceiver socket.
The CFP2 module is properly seated in the slot by applying symmetrical force of at least 80N on its front surface, along
the centerline. The latching mechanisms on both the sides of the pluggable should be fully engaged, and the electrical
connectors should be completely mated.
