The following image shows the rack-mount brackets on the Cisco NCS 5501. The bracket installation is the
same for the Cisco NCS 5501-SE and Cisco NCS 55A1-24H.
Note

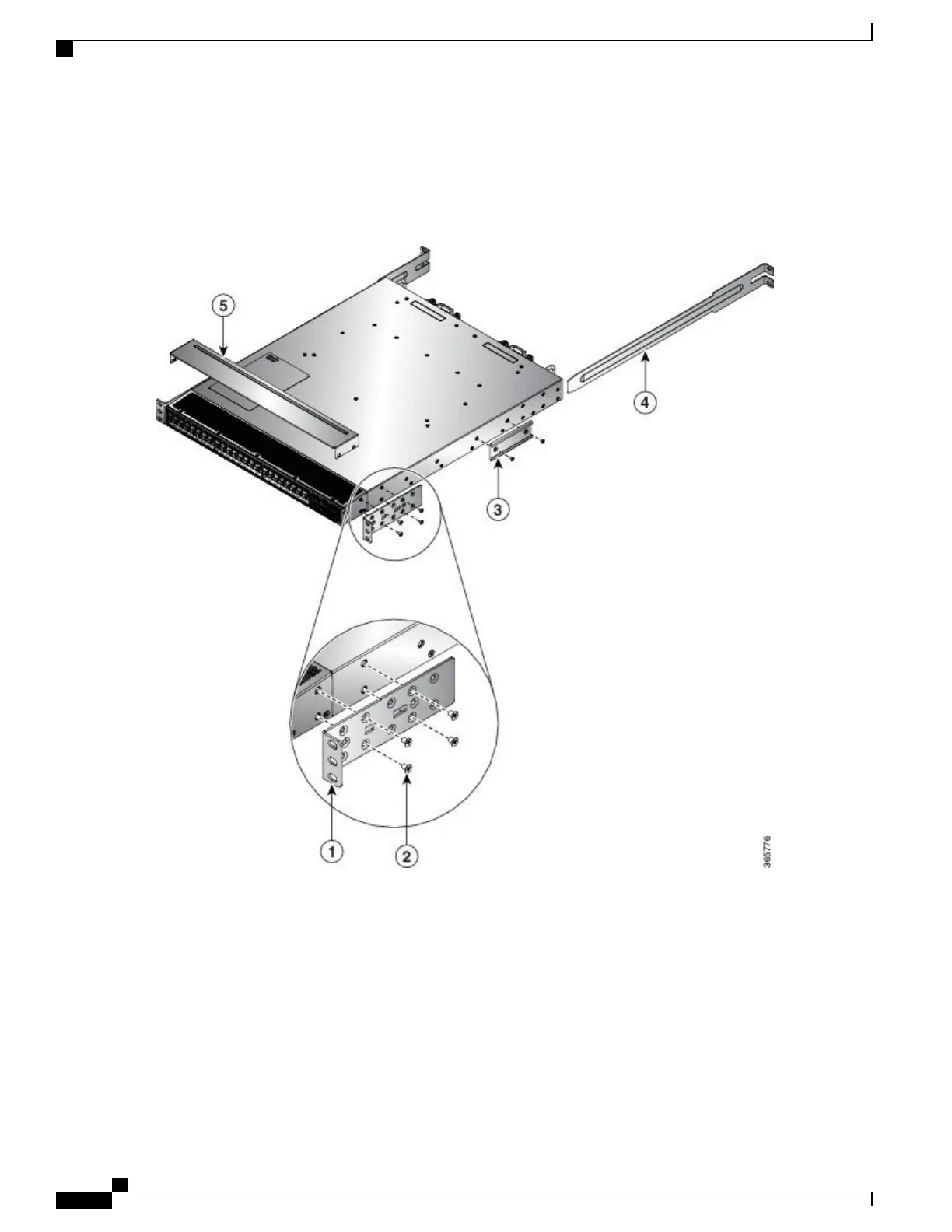

Figure 5: Rack-mount brackets on the front side of Cisco NCS 5501
Figure 6: Rack-mount brackets on the rear side of Cisco NCS 5501
Hardware Installation Guide for Cisco NCS 5500 Series Fixed-Port Routers
16
Install the Chassis
Rack-Mount the Chassis on a 4-Post Rack
