Screw thread adapter at the
Front End- Outer slider
member
2Rear End- Outer slider
member
1
Outer slider member3
(NC55-2RU-ACC-SL2) Adjust the slider (push and pull) to place and fix the slider behind the front post. Attach
the slider to the front post with 2 counter sink screws (10-32) and washers. See Figure 34: Rear and Front End
(NC55-2RU-ACC-SL2) of the Outer Slider Member.
Remove the screw thread adapter present at the front end of the outer slider member if you are unable to
pass the slider through the rack holes. Tighten the screws later after passing the slider through the rack
holes.
Note

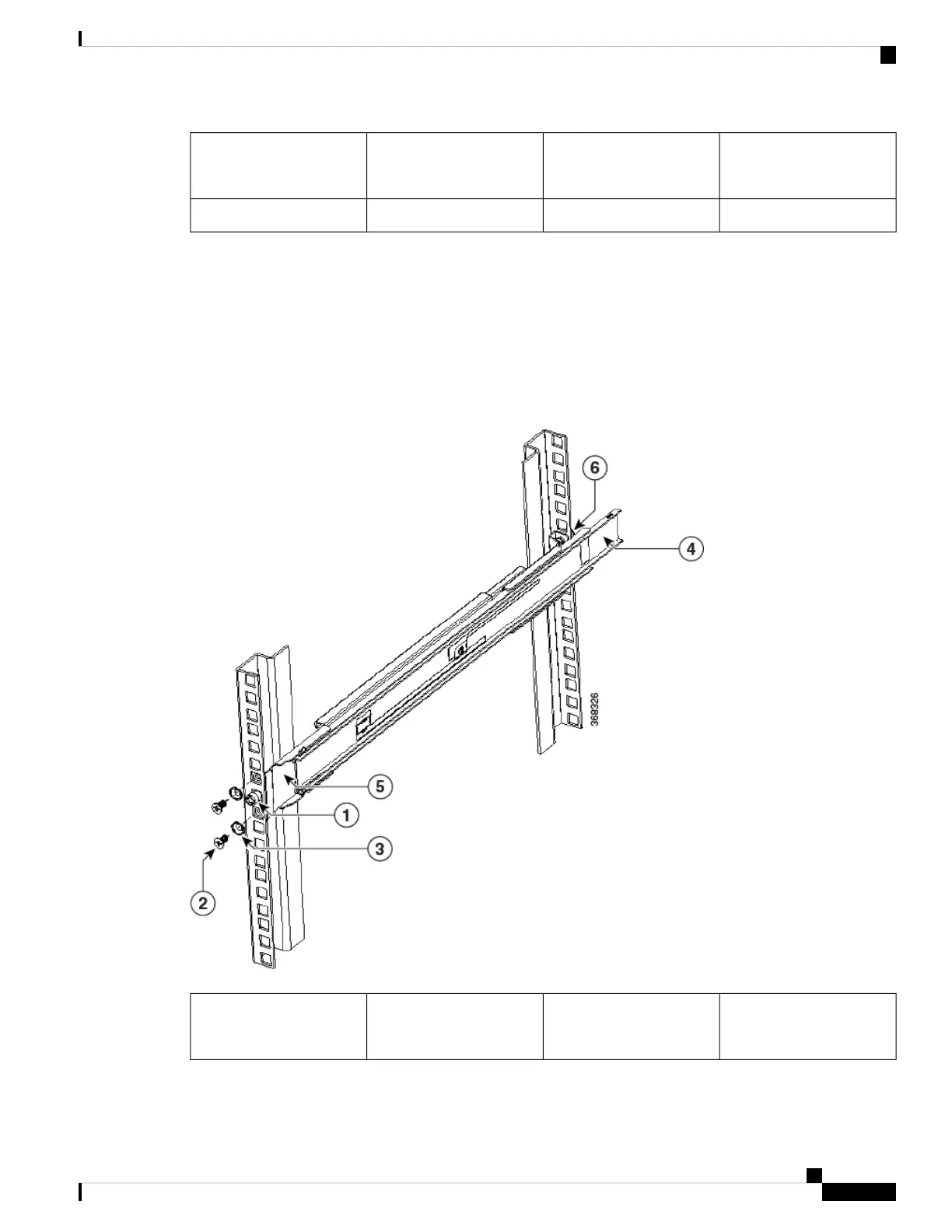

Figure 34: Rear and Front End (NC55-2RU-ACC-SL2) of the Outer Slider Member
Counter sink screws2Screw thread adapter at the
Front End- Outer slider
member
1
Hardware Installation Guide for Cisco NCS 5700 Series Fixed-Port Routers
47
Install the Chassis
Rack Mount the NCS-57C3-MOD Chassis in a 4-Post Rack using Sliders
