Cisco Network Device Cisco 2800 User Manual

6
Installing Network Modules in Cisco 2800 Series Routers
OL-5790-01
Installing and Removing Filler Panels in Network Module Slots

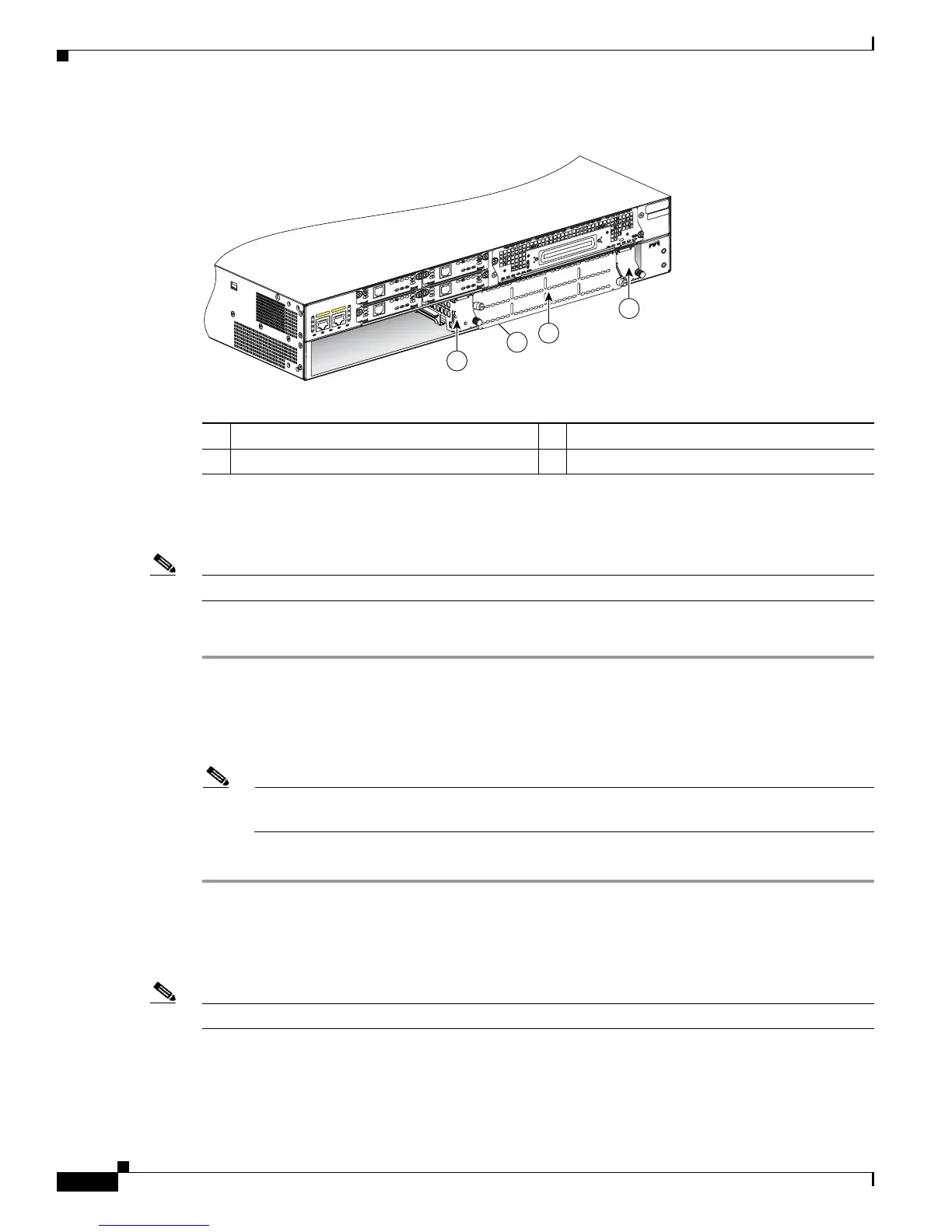

Figure 8 Filler Panels for NME and NM
Installing Filler Panels in Network Module Slots
Note A network module slot must be empty before you install a filler panel.
Install filler panels as follows:
Step 1 Orient the filler panel for insertion, with the captive retention screw at the right side.
Step 2 Insert the filler panel into the far right edge of the slot.
Step 3 Guide the inner end of the filler panel into the square hole at the rear of the network module slot, and
align the retention screw with the threaded screw hole in the chassis, slot divider, or adjacent filler panel.
Note You may be securing the filler panel to the router chassis, to another filler panel, or to a slot
divider, depending on its installation location.
Step 4 Tighten the retention screw.
Removing Filler Panels from Network Module Slots
Note A network module slot must be empty before you remove a filler panel.
To remove a filler panel, loosen the captive retention screw and pull the filler panel straight out of the
slot.
1 Filler panel 3 Blank panel
2 Slot divider 4 Filler panel
121068
T
D
M
0
A=
AC
T
G
E
0/1
PV
D
M
2
P
V
D
M
1
P
V
D
M
0
A
IM
1 AIM
0
G
E 0/0
S
= S
PE
E
D
A
=
F
D
X
A=
L
IN
K
A
F
S
L
A
F
S
L
S
L
O
T
2
S
L
O
T
0
S
L
O
T
3
S
L
O
T
1
4
1
2
3
