Installing and Upgrading Internal Modules in Cisco 2800 Series Routers
OL-5792-04
Locating Modules
Locating Modules
Figure 8 shows the locations of the DIMMs, AIMs, PVDMs, and power supply in Cisco 2801 routers.
Figure 9 shows the locations of the DIMMs, AIMs, PVDMs, and power supply in Cisco 2811 routers.
Figure 10 and Figure 11 show the locations of the DIMMs, AIMs, PVDMs, and power supply in
Cisco 2821 and Cisco 2851 routers.

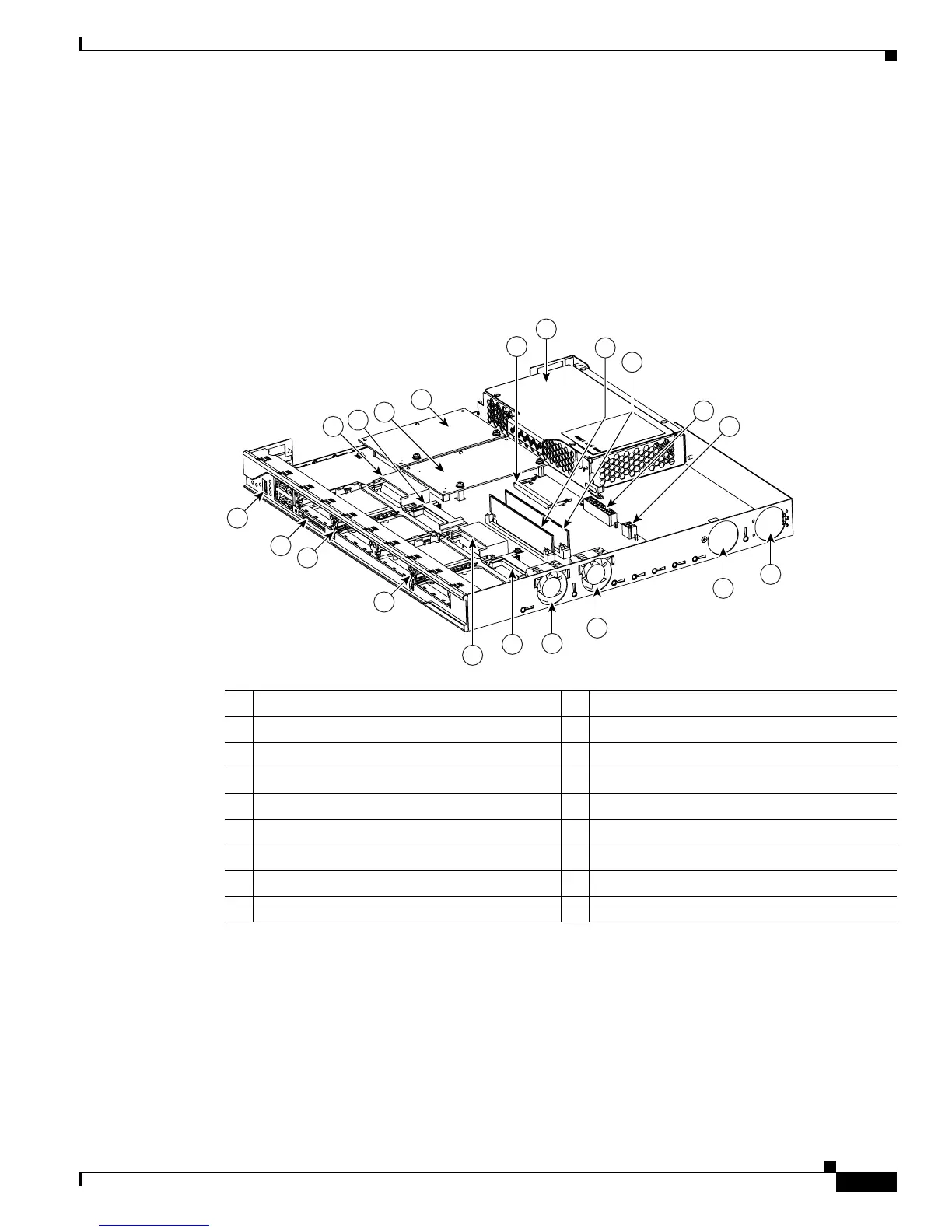

Figure 8 Module Locations in Cisco 2801 Routers
1 ILP fan vents/vent blocking plate 10 AIM 0
2 System fans 11 AIM 1
3 VIC or VWIC connector 12 DIMM socket
4 VIC, VWIC, WIC, or HWIC connector 13 Mainline power supply
5 Card guide center rail 14 PVDM 1
6 External CompactFlash memory card slot 15 PVDM 0
7 Universal serial bus (USB) port 16 Main power supply connector
8 VIC, VWIC, WIC, or HWIC connector 17 ILP supply connector
9 VIC, VWIC, or WIC connector
95907
12
13
14
15
2
2
1
1
3
4
5
5
6
7
8
9
10
11
17
16
