Installing and Upgrading Internal Modules in Cisco 2800 Series Routers
OL-5792-04
Removing the Chassis Cover

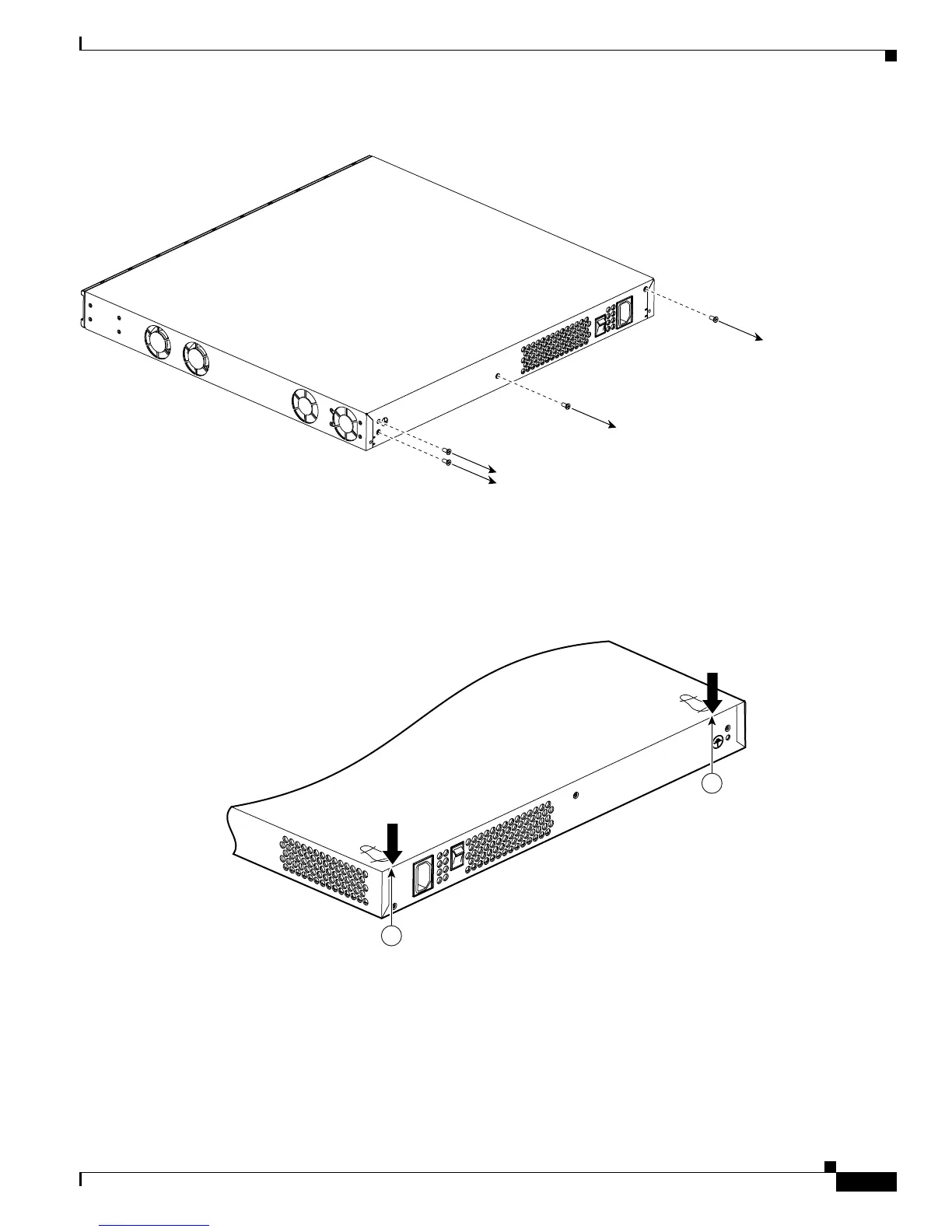

Figure 1 Removing the Cisco 2801 Chassis Screws
Step 3 Insert a flat-blade screwdriver between the chassis and chassis cover at the screwdriver pry points on the
bottom of the chassis, indicated in Figure 2. Rotate the screwdriver 90 degrees to disengage the chassis
cover from the chassis. It may be necessary to turn the unit upside down on a flat surface to access the
pry points.
Figure 2 Screwdriver Pry Points
Step 4
Gently slide the chassis cover of the router away from the bottom of the chassis, as shown in Figure 3.
103167
121070
1
1
