14
Installing and Upgrading Internal Modules in Cisco 2800 Series Routers
OL-5792-04
Installing and Removing DRAM DIMMs

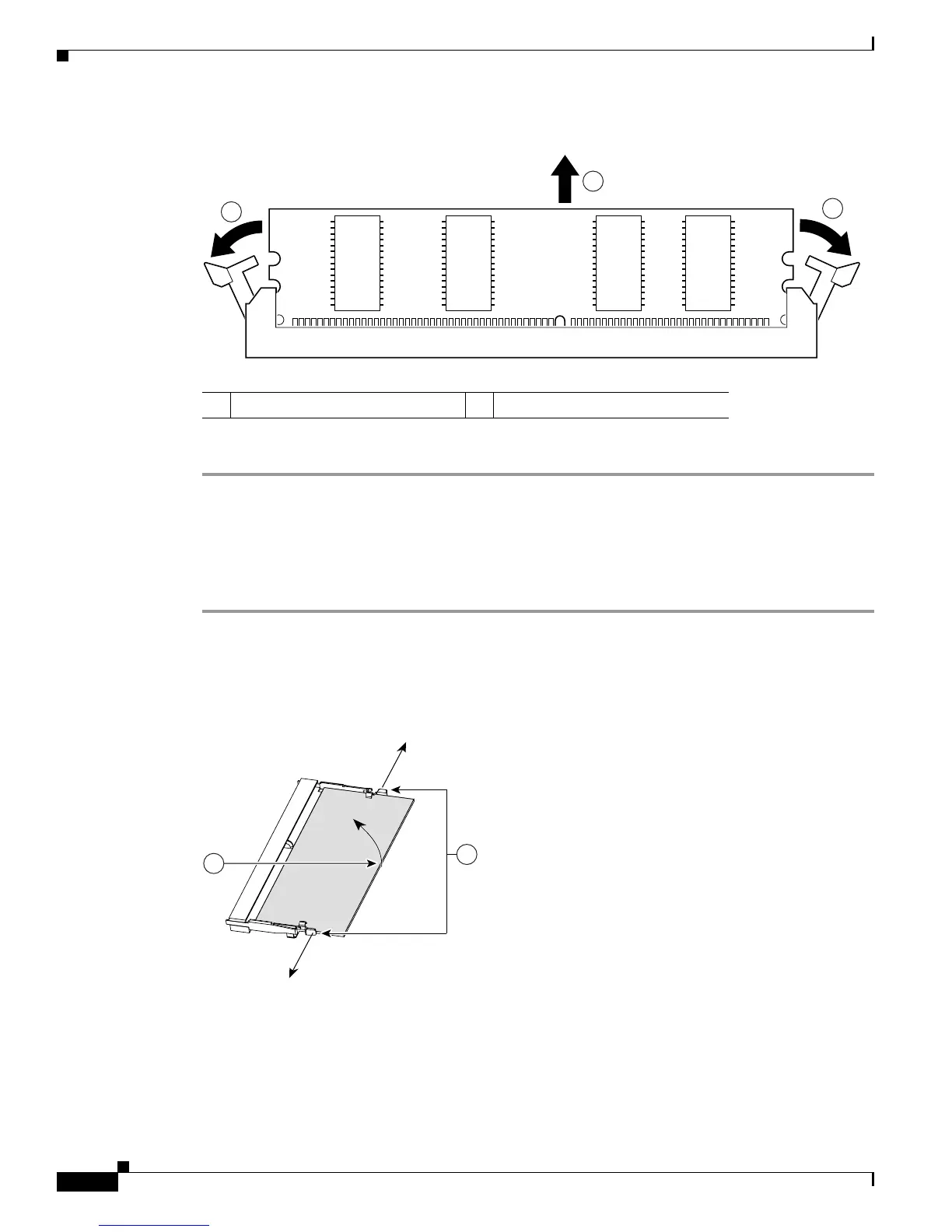

Figure 13 Removing a DRAM DIMM
Step 3
Place the DIMM in an antistatic bag to protect it from ESD damage.
Installing a DRAM DIMM in a Cisco 2801 Router
To install a DRAM DIMM in a Cisco 2801 router, follow these steps:
Step 1 Locate the DIMM socket on the motherboard.
Step 2 Remove any existing DIMM by gently pulling the spring-loaded clips on the end of the socket far enough
to clear the DIMM, and gently pulling the DIMM up and away from the socket. See Figure 14.
Figure 14 Removing a DIMM
Step 3 Insert the DIMM into the DIMM socket, as shown in Figure 15.
1 Release the latches 2 Remove the DRAM DIMM
103466
1
1
2
103155
1
2
