Installing and Removing AIMs

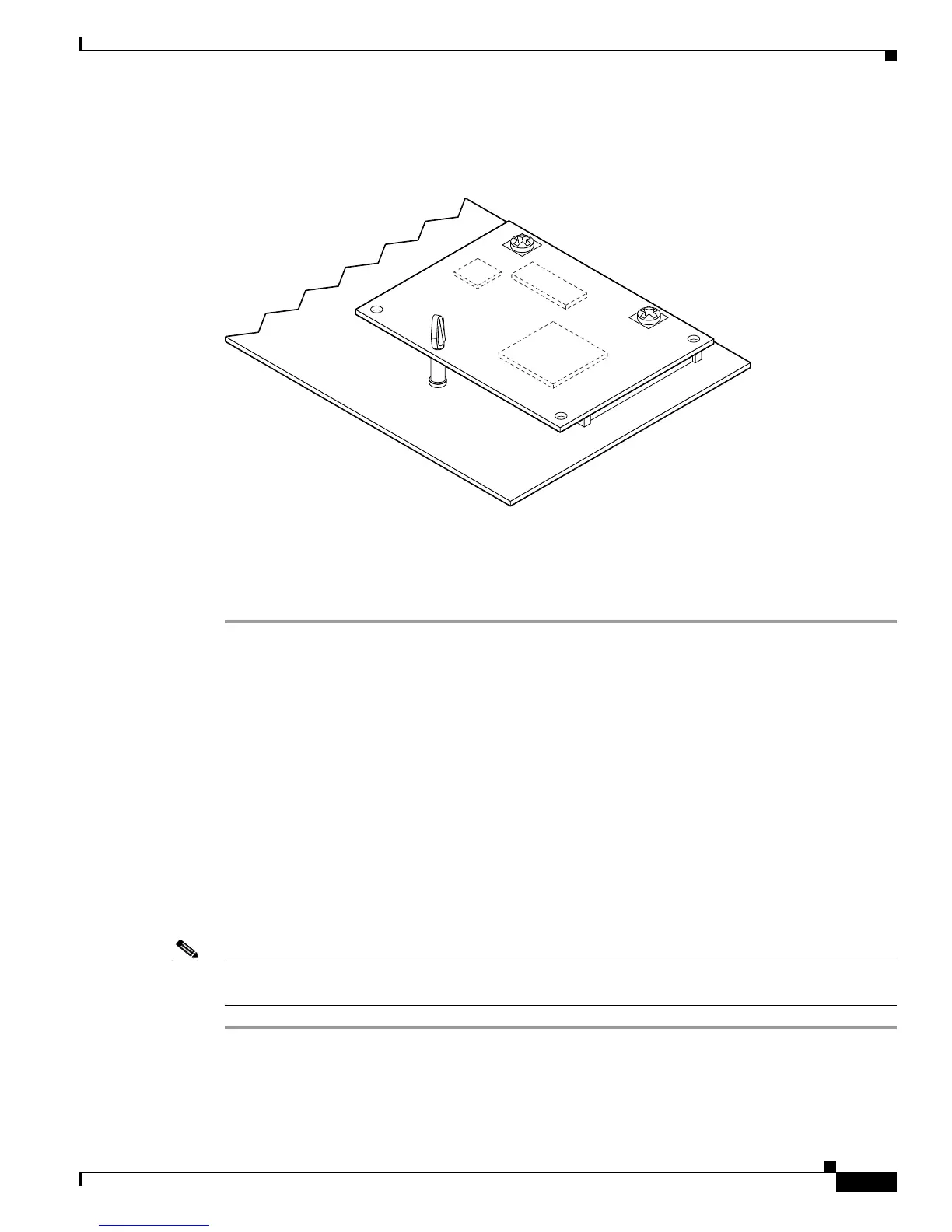

Step 7 Check that the AIM is installed correctly on the system board. See Figure 21.
Figure 21 Correctly Installed AIM
Step 8
If you are finished installing modules, install the cover on the router. See the “Installing the Chassis
Cover” section on page 51.
Step 9 Apply the AIM label to the outside of the chassis as described in the “Applying the AIM Label” section
on page 26.
Installing an AIM in a Cisco 2811, Cisco 2821, or Cisco 2851 Router
Cisco 2811, Cisco 2821, and Cisco 2851 routers have two AIM connectors—AIM slot 0 and AIM slot 1.
You can install a virtual private network (VPN) encryption AIM or a voice-mail AIM in either slot, but
not in both slots. You can install voice and data compression AIMs and ATM AIMs in both slots.
Accessory Kit to Use
To install AIM modules in Cisco 2811, Cisco 2821, or Cisco 2851 routers, use accessory kit number
69-0926-01.
Installation Procedure
To install an AIM in a Cisco 2811, Cisco 2821, or Cisco 2851 router, follow these steps.
Note If the mounting hardware is already in place on the system board, or if you are replacing an existing AIM,
skip Step 2 through Step 4.
Step 1 Locate the AIM connector.
Step 2 Remove the three screws from the system board near the AIM connector that you are going to use.
(Figure 22 shows the screws to remove for AIM installation in AIM slot 1.)
58696
