4

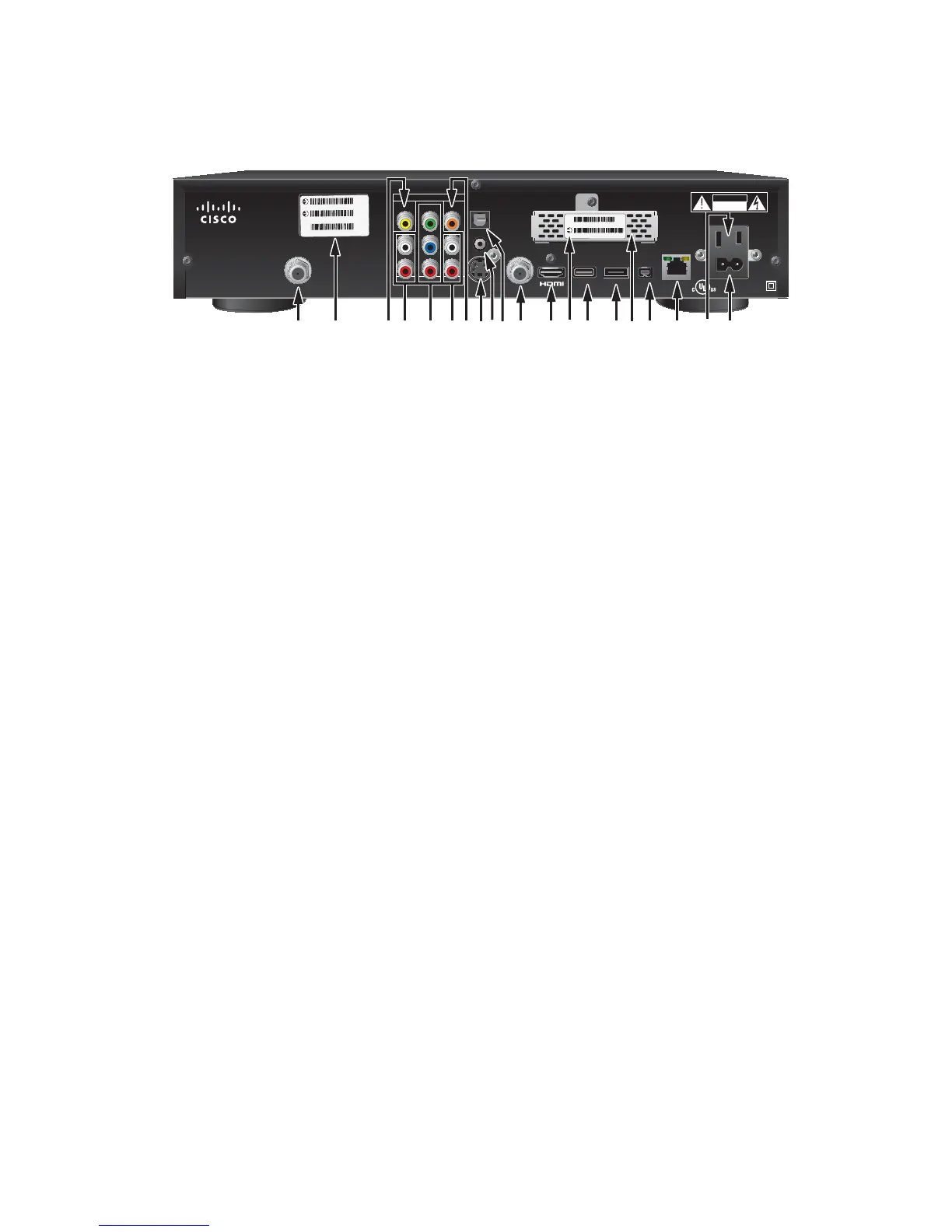

Back Panel
1 Cable In Connects to a coaxial cable that delivers the signal from your service provider
2 Bar Code Label Contains set-top serial number and MAC addresses
3 Video 1 (Composite) Connects to a video input of another device, such as a TV or VCR
4 Audio Out (Left/Right) Connects to RCA cables that send analog audio signals (left/right) to a stereo receiver
or TV with stereo inputs
5 YPbPr Connects to the component video input (YPbPr) on an HDTV. Do not use
these cables if you are using the HDMI connection
6 Out 2 Connects to either a VCR or to another set of inputs (composite) on your TV
(Secondary Audio Out)
7 Digital Audio Out Connects to an RCA cable that sends a digital audio signal to a surround-sound receiver
or other digital audio device
8 S-Video Out Connects to S-Video input of a standard TV or VCR
9 IR Connector reserved for future use
10 Optical Audio Out Connects to an optical cable that sends a digital audio signal to a surround-sound
receiver or other digital audio device
11 Cable Out Connects to a coaxial cable that sends analog audio and video signals to a TV or VCR.
These signals are SDTV video and stereo audio
12 HDMI Connects an HDMI
™
cable to the HDMI input of an HDTV. HDMI supports both digital audio
and video. May be used to connect to a DVI interface using an HDMI-to-DVI adapter for
video and separate audio connections. Any of the following audio connections may be used:
Digital Audio Out (7); Audio Out: Left, Right (4); or Optical Audio Out (10)
13 M-Card Label Contains M-Card serial number and MAC address
14 USB 2.0 Connects to external USB equipment approved by your service provider, software controlled
15 eSATA Connects to an external Serial ATA (eSATA) hard disk drive for expanded drive space.
A connected eSATA drive is not an archival device. Support for your eSATA may vary by
service provider
16 M-Card Slot for M-Card module, which decrypts subscription digital channels. This set-top will not
operate correctly without an M-Card module, which is installed by your service provider
17 1394 Connects to display devices that are equipped with a 1394 input
18 Ethernet Connects to an Ethernet-equipped device (Reserved for future use)
19 AC Outlet Connects to the AC power cord from another device, such as a TV
20 AC Power Input Connects to the power cord to deliver power to the set-top
Note: This illustration may vary from the actual product.
THIS DEVICE IS INTENDED TO BE ATTACHED
TO A RECEIVER THAT IS NOT USED TO
RECEIVE OVER-THE-AIR BROADCAST
SIGNALS. CONNECTION OF THIS DEVICE
IN ANY OTHER FASHION MAY CAUSE
HARMFUL INTERFERENCE TO RADIO
COMMUNICATIONS AND IS IN VIOLATION
OF THE FCC RULES, PART 15.
CABLE OUT
S-VIDEO
OUT
USB 2.0
120VAC
60Hz 80W
120 VAC
60Hz 4.2A
500W
OPTICAL
AUDIO
OUT
MULTI-STREAM
CABLE CARD
OUTPUT
VIDEO
L
R
Pb
Y
Pr
DIGITAL
AUDIO
L
R
IR
AVI S:
RISQUE DE CHOC
ELECTRIQUE NE PAS OUVRIR
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
1394 ETHERNETeSATA
CABLE IN
CATV CONVERTER
MADE IN MEXICO
LISTED 36MW
VIDEO PRODUCT
eCM MAC: 001AC3F4F757
STB RF MAC: 001AC3F$F756
STB SN: SABPQBQGD
MCARD SN: PXCPRPSLV
MCARD MAC: 00 1BD73E17D9
T14760
97
5 64
14
11
1 2 12 13 168151817 20
10
3 19
