Cisco RNG200 User Manual

12

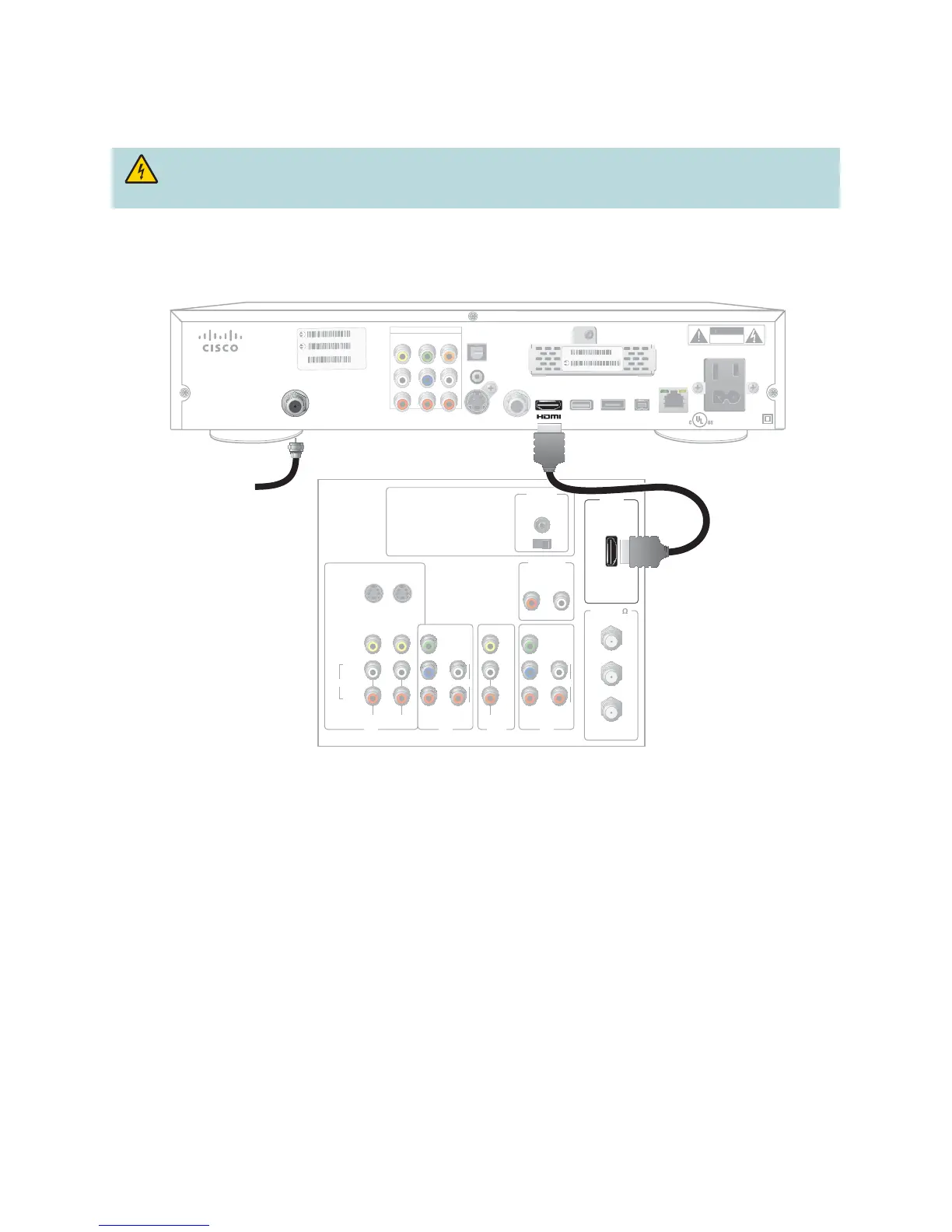

Connecting to an HDTV with an HDMI Connector
Required cables:
• 1 HDMI cable
Important Notes Regarding the HDMI Interface on the Set-Top
The HDMI interface automatically confi gures the audio output for a format supported by the television. Because not all
TVs support the Dolby Digital input, the HDMI interface may automatically select a 2-channel stereo audio confi guration
instead of Dolby Digital, which it carries over to the other digital audio outputs of the set-top. This prevents your home
theater system or Dolby Digital decoder from providing the full Dolby Digital surround-sound effect.
You can override this confi guration by completing the following steps.
1. Press SETTINGS twice on the remote control to open the General Settings menu.
2. Press MOVE UP or MOVE DOWN to select the option Audio: Digital Out.
3. Press MOVE RIGHT to select Dolby Digital. (On some models, after you press MOVE RIGHT, you must press
MOVE UP or MOVE DOWN to select Dolby Digital from the list.) This setting will send Dolby Digital audio to the
HDMI, DIGITAL AUDIO OUT, and OPTICAL AUDIO OUT connectors on the set-top.
Notes:
• If the TV is not Dolby Digital capable, it may not produce audio through its speakers when the Audio: Digital Out
setting on the set-top is set to Dolby Digital. You can either switch the Audio: Digital Out setting back to HDMI when
you are not using the home theater or Dolby Digital decoder, or you can connect the baseband audio outputs (OUT
1 Audio Left and Right) to the TV.
• Digital content is encrypted with High-Bandwidth Content Protection (HDCP) on the DVI/HDMI port. This set-top
is not compatible with devices that do not support HDCP. You must use either the YPbPr or 1394 connection to
connect the set-top to these devices.
WARNING: Electric shock hazard! Unplug all electronic devices before connecting or disconnecting
any device cables to the set-top.
T
HIS DEVICE IS INTENDED TO BE ATTACHED
T
O A RECEIVER THAT IS NOT USED TO
RECEIVE OVER-THE-AIR BROADCAST
SIGNALS. CONNECTION OF THIS DEVICE
IN ANY OTHER FASHION MAY CAUSE
HARMFUL INTERFERENCE TO RADIO
COMMUNICATIONS AND IS IN VIOLATION
OF THE FCC RULES, PART 15
.
CABLE OU
T
S-VIDEO
OU
T
U
SB 2.0
120VAC
C
60Hz 80
W
120 VAC
60Hz 4.2
A
500
W
OPTICAL
AUDIO
OU
T
M
ULTI-STREA
M
C
ABLE
C
AR
D
OUTPU
T
V
IDEO
L
R
Pb
Y
Pr
D
IGITAL
AUDIO
L
R
IR
AVI S: RISQUE DE CHOC
E
LECTRIQUE NE PAS OUVRIR
139
4
E
THERNE
T
e
SAT
A
C
ABLE I
N
CATV CONVERTER
M
ADE IN MEXICO
L
ISTED 36M
W
V
IDEO PRODUC
T
eCM MAC: 001AC3F4F757
STB RF MAC: 001AC3F$F756
STB SN: SABPQBQGD
MC
ARD
S
N: PX
C
PRP
S
L
V
MC
ARD MA
C
:
00
1BD7
3
E17D
9
CAUTION
RISK OF ELECTRIC SHOCK
D
O NOT OPEN
CABLE IN
Back of HDTV
HDMI
AUDIO
CENTER
CHANNEL IN
AUDIO IN
DVI/HDCP
ANT (75 )
INOUT
LR
ANT-1
HD 2
Y
OUT
ANT-2
PB
PR
L
R
VIDEO
L/
MONO
R
L/
MONO
R
AUDIO
IN
ON OFF
IN
HD 1
S-VIDEO
VIDEO
Y
PB
PR
L
R
AUDIOAUDIO
RNG200N
Cable
Input
T13985
