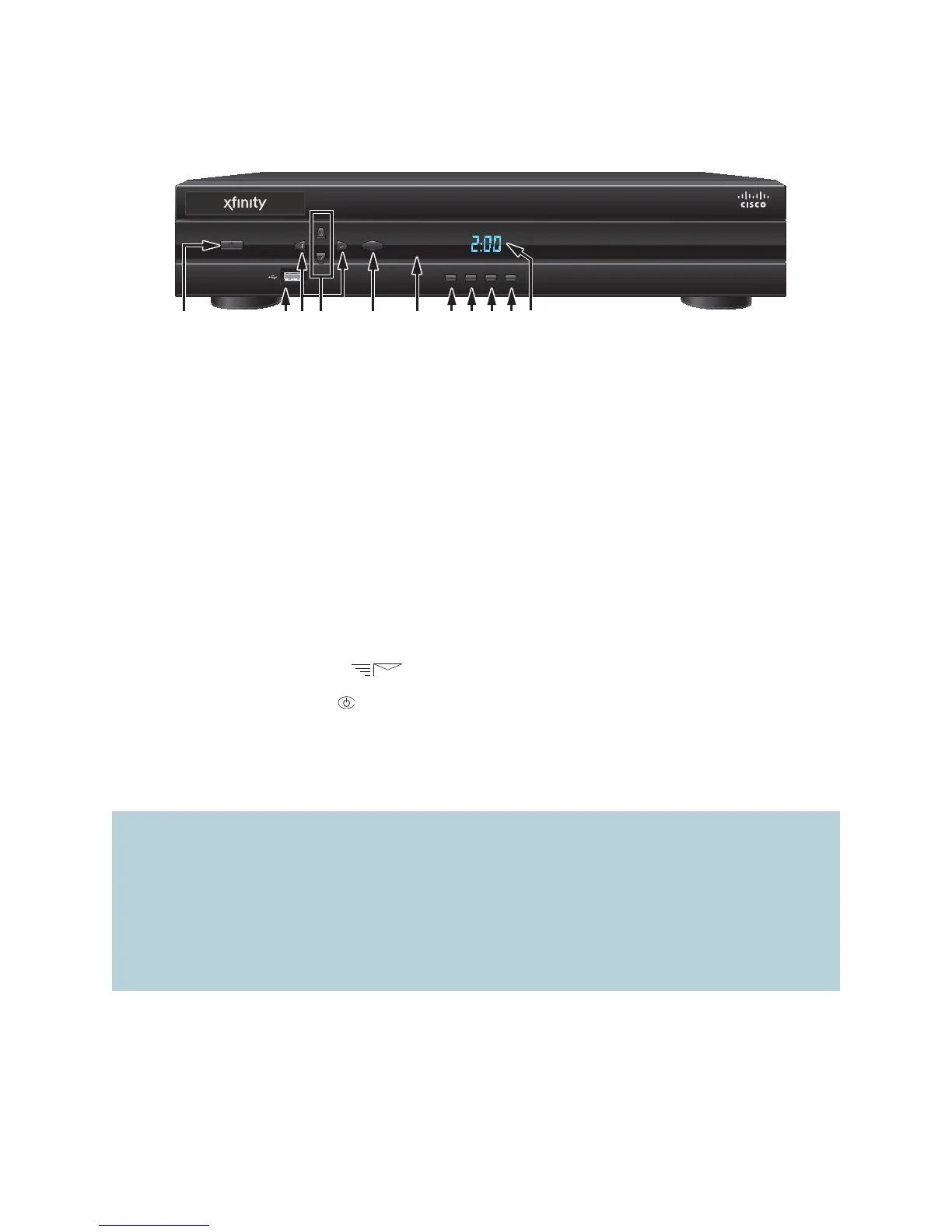

Front Panel
1 Power Turns the DVR on and off
2 USB 2.0 Connects to external USB equipment approved by your service provider, software controlled
3 VOL -, VOL + Decreases and increases the volume
4 CH+, CH - Scrolls up and down through the channels
5 Select Accesses your on-screen selection
6 IR Sensor Receives the infrared signal from the remote control
7 Menu Accesses on-screen menu services, such as video-on-demand or pay-per-view
8 Info Displays a description of the selected program. This button is available from the on-screen
guide and while viewing a program
9 Exit Exits menus, the on-screen guide, and program information
10 List Displays the recorded list
11 Display Displays the selected channel number and time of day. The display shows the following:
• Message (
)
• HDTV
• Power (
)
• Output Resolution (1080i, 720p, 480p, or 480i)
• AUTO - Automatically outputs native scan rates that your TV can accept
Note: This illustration may vary from the actual product.
CAUTION: The DVR is equipped with a hard disk drive to store programs that you record and to allow you to rewind
and pause live TV. Any time the DVR is powered on (power LED is illuminated) or a recording is in progress (the
record LED is illuminated) the hard disk is in use.
If you need to move the DVR, complete the following steps to allow the hard disk to shut down properly. First, make
sure that no recording is in progress (record LED is off). Then, turn off power by pressing the Power key. Finally,
unplug the unit and wait 10 seconds for the hard disk drive to spin down (stop). At this point the unit can be moved
safely.
You should handle this product with the same level of care you would use when handling other electronics containing
a hard disk drive, such as a laptop computers or other hard disk drive equipped devices.
T14761
POWER
SELECT
VOL+VOL-
CH+
CH-
LISTEXITINFOMENU
RNG200N
178910653
11
2 4
