Cisco SCE 8000 Installation Guide

4
System Installation Overview
Figure 1 shows the order of in which the Cisco Service Control solution must be installed.

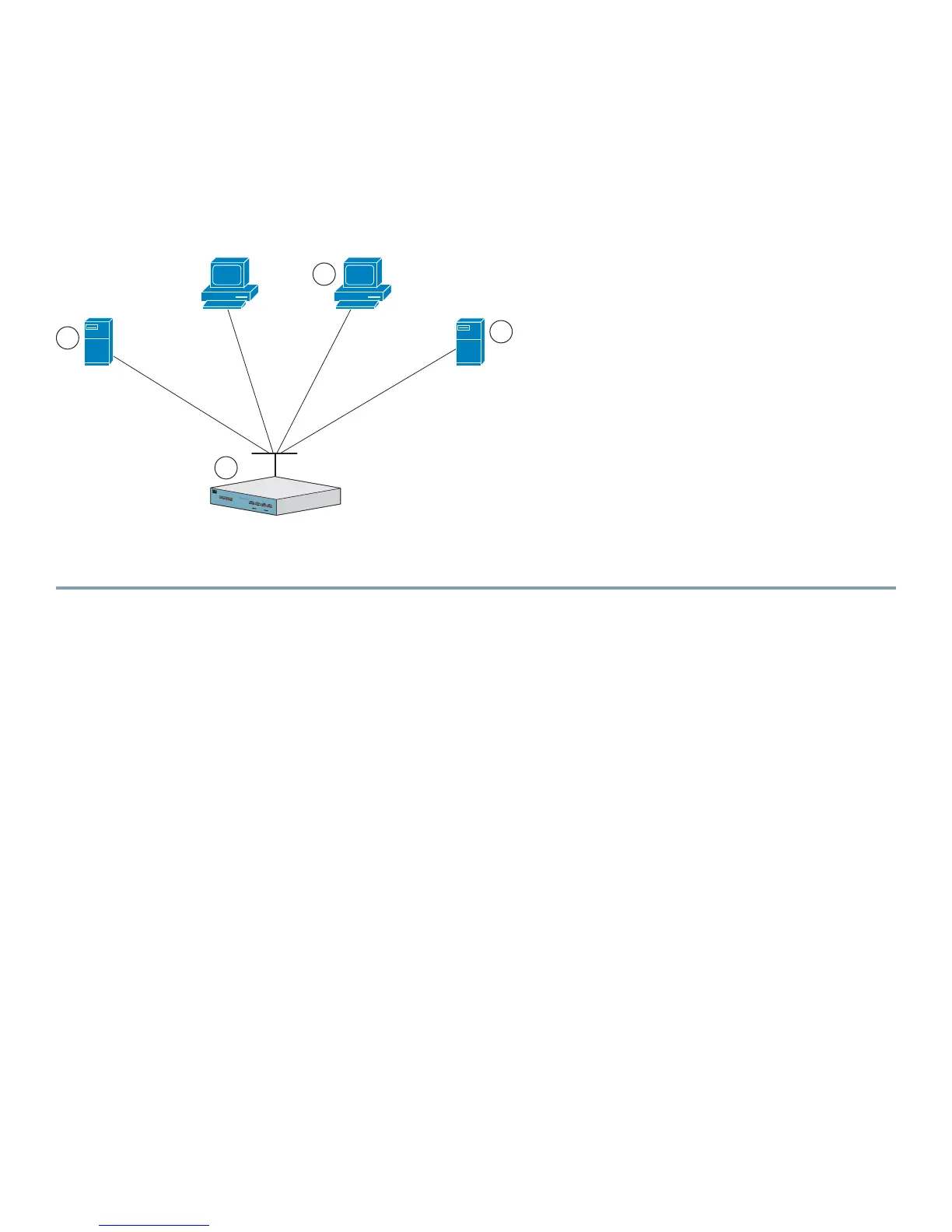

Figure 1 Installing the Complete Cisco Service Control Solution
To install the complete Cisco Service Control solution, complete these steps:
Step 1 Install the Cisco SCE platform (see the “Installing the Cisco SCE 8000 Platform” section on page 11).
This task includes:
• Installation in the rack
• Initial configuration by using a local console
• Cabling management and line ports
Step 2 Install the Subscriber Manager (see the “Installing the Subscriber Manager” section on page 13).
This task includes:
• Preliminary configuration (memory settings and configuration file.)
• Installing the SCMS Subscriber Manager software
• Adding a user for Proprietary Remote Procedure Call (PRPC) authentication
Step 3 Install the Collection Manager (see the “Installing the Collection Manager” section on page 15).
This task includes:
• Installing the SCMS Collection Manager software
• Configuration related to the various adapters
• Adding a user for PRPC authentication
• Configuring the SCMS Collection Manager to be able to connect to the database
Step 4 Install the Cisco SCA BB Console and optional Cisco SCA BB configuration utilities (see the “Installing the Cisco SCA
BB Application” section on page 18).
L
INK
RX
Cisco SCE 2000
Se
r
ies
4xGBE
T
X
RX
M
M
T
X
L
I
NK
RX
TX
RX
MM
TX
LINK
RX
TX
RX
MM
TX
LI
NK
RX
TX
RX
M
M
TX
GBE-1
SUB
LI
N
E
NET
P
WR
B
S
T
A
TUS
PW
R
A
BY
P
A
S
S
10/
10
0/
10
00
LI
NK
/
A
CT
IVE
1
0/
1
0
0/
1000
LINK/
A
CTIVE
G
B
E-
2
SU
B
LINE/CAS
C
ADE
NET
A
UX
CONSOLE
MNG
2
MNG 1
274176
SCE platform
RDRs
CLI and
SNMP
XML/RPC
Subscriber info
Subscriber
Manager
SCA BB application
Service policy and
quota management
Network
management
Collection
Manager
1
2
3
4
