Cisco UCS C200 Server Installation and Service Guide
OL-20732-02
Chapter 2 Installing the Server
System BIOS and CIMC Firmware
Motherboard Jumpers
These jumpers are adjacent to the CMOS battery (see Figure 2-6). This section contains the following
topics:
• Using the BIOS Recovery Jumper J1E5 to Recover Corrupt BIOS, page 2-16
• Clearing the CIMC Admin Password Using Jumper J45, page 2-17
• Using the Clear CMOS Jumper J1E6, page 2-18
• Clearing the BIOS Admin Password Using Jumper J1E4, page 2-19

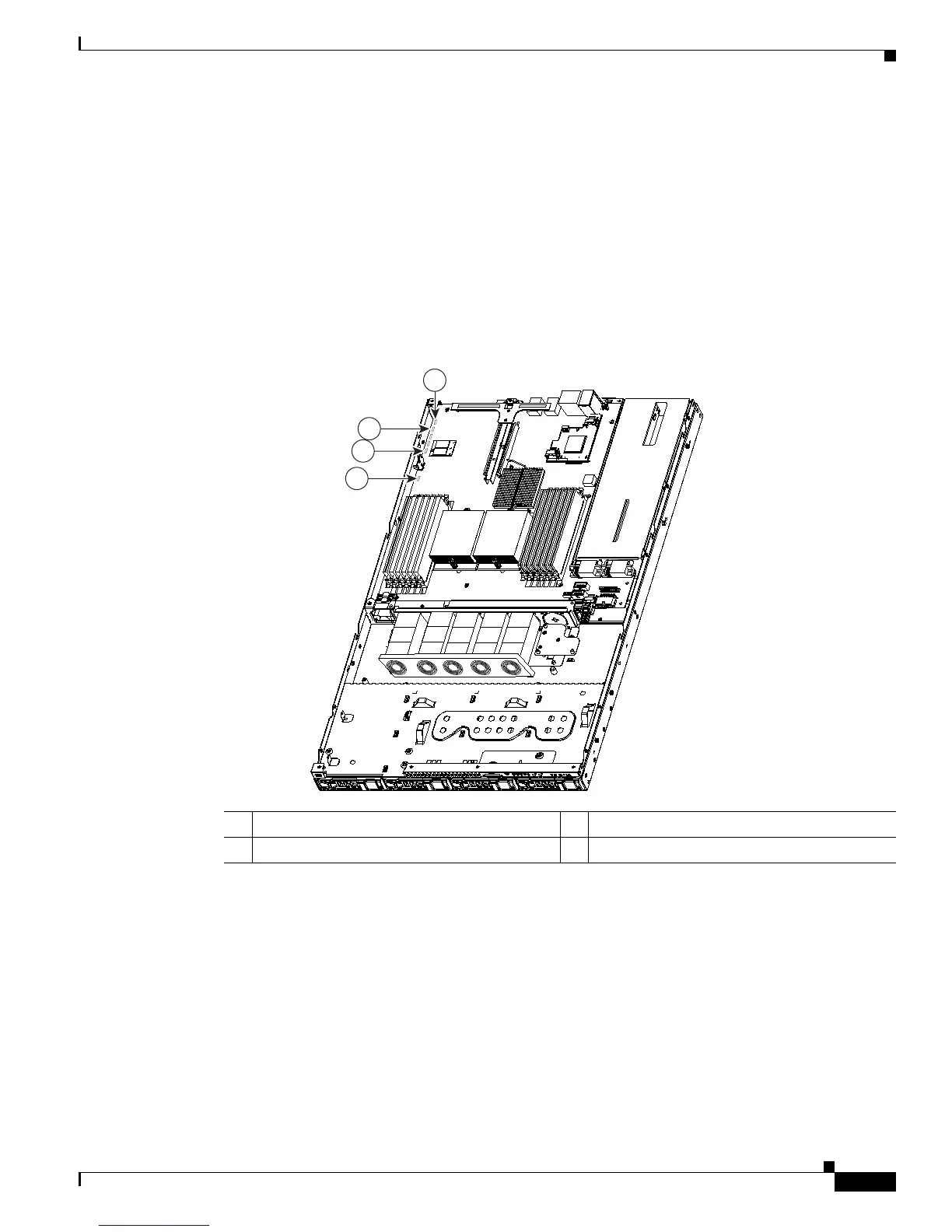

Figure 2-6 Service Jumper Locations
1 Jumper J1E6 (clear CMOS) 3 Jumper J45 (clear CIMC password)
2 Jumper J1E5 (BIOS recovery) 4 Jumper J1E4 (clear BIOS password)
199626
1
2
3
4
