Chapter 3 Maintaining the Server
Installing or Replacing Components

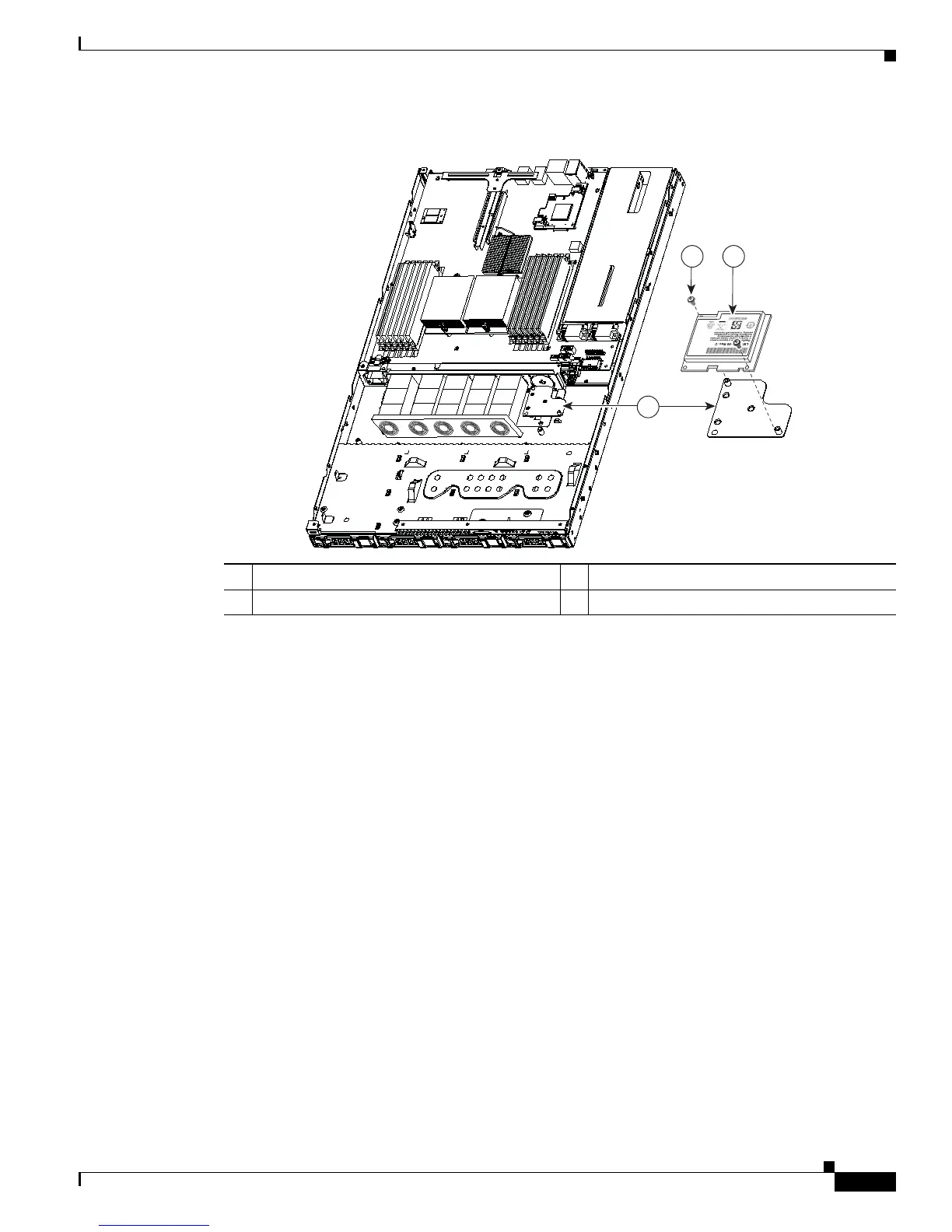

Figure 3-27 Removing and Replacing an LSIiBBU06 BBU
1 BBU bracket on fan tray 3 BBU (connector J2 is on the underside)
2 Securing screws (two)
331003
1
2 3
