Cisco UCS C22 User Manual

C-17
Cisco UCS C22 Server Installation and Service Guide
OL-26646-01
Appendix C RAID Controller Considerations
RAID Controller Cabling
RAID Controller Cabling
This section includes the following topics:
• Cable Routing, page C-17
• Cisco UCS C22 Server Cabling, page C-18
Cable Routing
The RAID controller connectors in this server are shown in Figure C-2.
The red line indicates the recommended cable routing path from the backplane to the possible controller
locations.

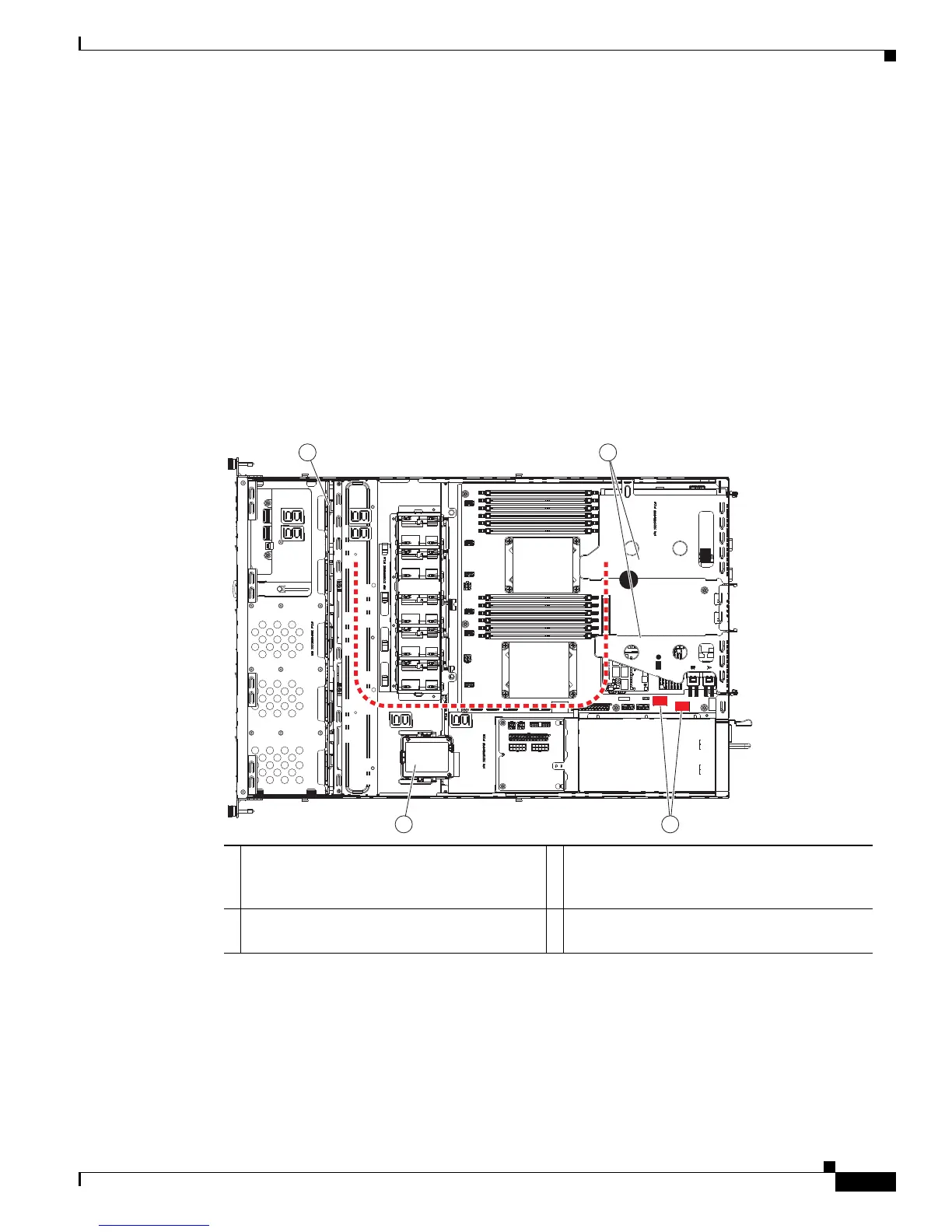

Figure C-2 RAID Controller Connectors and Cable Routing
1 Drive backplane 3 Embedded RAID SAS connectors 
on motherboard 
(Left to right: SCU_Port 0, SCU_Port 1)
2 SCPM mounting location 
(bracket on chassis floor)
4 PCIe risers for RAID controller cards
PCIe 1
PCIe 2
SYS FAN2SYS FAN2
SYS FAN3SYS FAN3
SYS FAN4SYS FAN4
SYS FAN5SYS FAN5
SYS FAN6SYS FAN6
SYS FAN1
SYS FAN2
SYS FAN3
SYS FAN4
CPU 1
CPU 2
SYS FAN5
343732
2 3
41
