3-23
Cisco UCS C22 Server Installation and Service Guide
OL-26646-01
Chapter 3 Maintaining the Server
Installing or Replacing Server Components

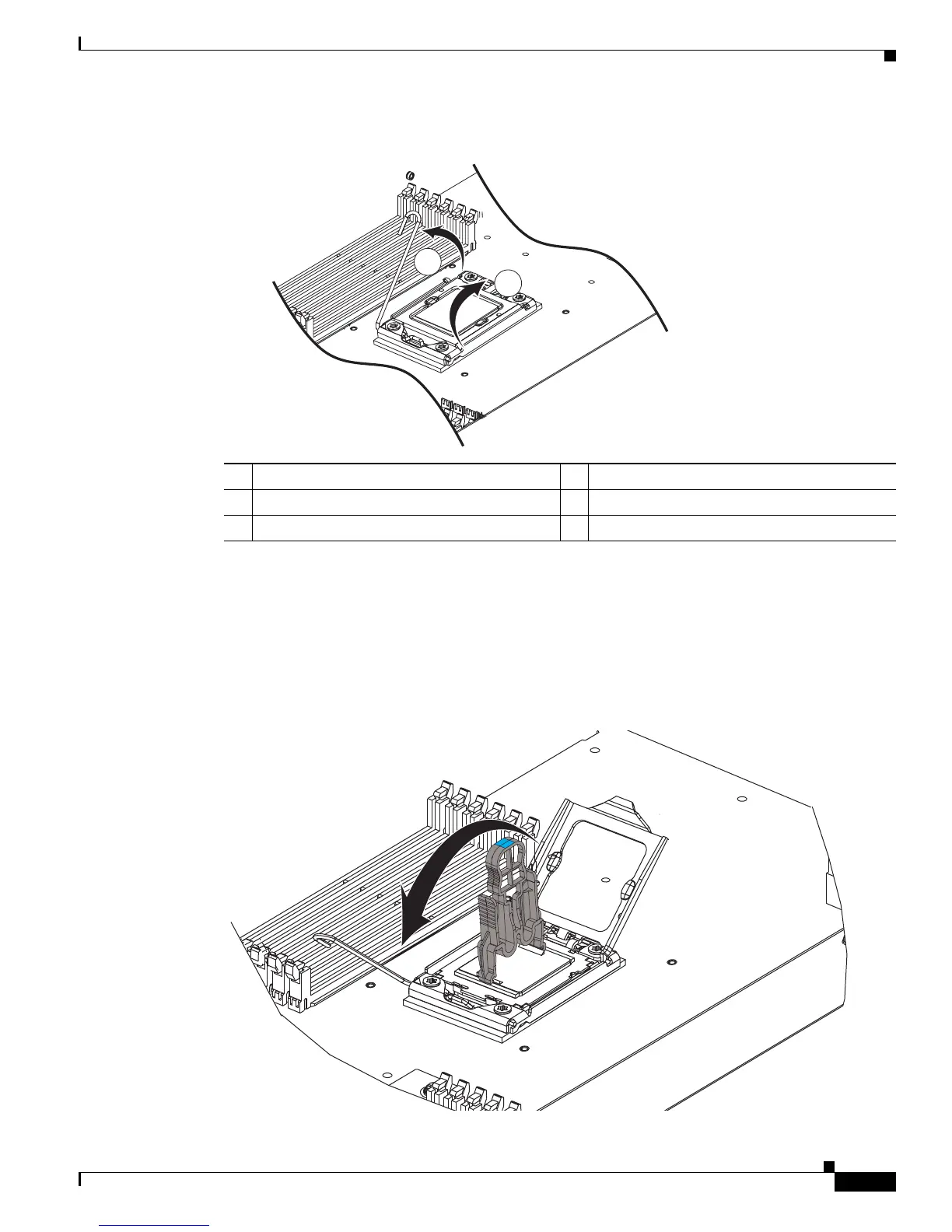

Figure 3-12 CPU Socket Latches
Step 2 Remove a protective cap or an old CPU from the socket (if present):
• If you are removing an old CPU, skip to Step 3.
• If you are installing a new CPU to a socket that was shipped empty, the socket has a protective cap
that is intended to prevent bent contact pins. Use the tool as shown in
Figure 3-13 to grasp the
protective cap and then pivot to remove the cap.
Figure 3-13 Protective Cap Removal Tool
1 Heatsink screws (four) 4 Hinged CPU cover plate
2 Heatsink 5 CPU
3 CPU retaining latch
1
2
334645
