Cisco UCS C240 M3 User Manual

Cisco UCS C240 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)
4
DETAILED VIEWS
DETAILED VIEWS
Chassis Front View

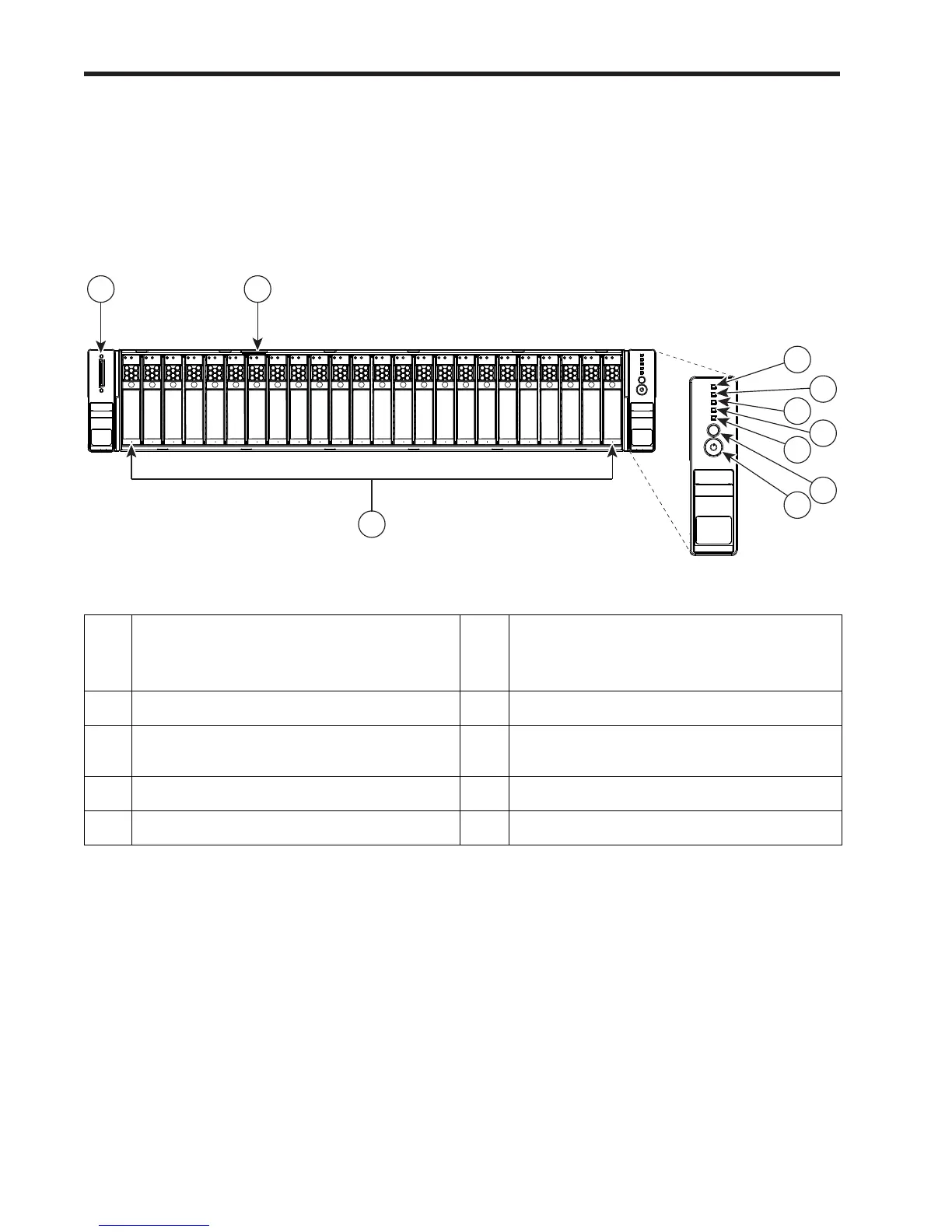

Figure 2 shows the Cisco UCS C240 M3 High-Density SFF Rack Server.
Figure 2 Chassis Front View
For more information about the KVM cable connection, see KVM CABLE, page 57.
1 KVM connector
(used with KVM cable that provides two USB,
one VGA, and one serial connector)
6 Temperature status LED
2 Asset tag (serial number) 7 Fan status LED
3 Drives (up to 24 2.5-inch hot-swappable
drives)
8 System status LED
4 Network link activity LED 9 Identification button/LED
5 Power supply status LED 10 Power button/power status LED
HDD 1 HDD 2 HDD 3 HDD 4 HDD 5 HDD 6 HDD 7 HDD 8 HDD 9 HDD 10 HDD 11 HDD 12 HDD 13 HDD 14 HDD 15 HDD 16 HDD 17 HDD 18 HDD 19 HDD 20 HDD 21 HDD 22 HDD 23 HDD 24
331807
4
5
6
7
8
10
9
3
21

Cisco UCS C240 M3 Specifications

General

Processor cores	8
Processor model	E5-2600
Processor frequency	2.7 GHz
Number of processors installed	2
HDD size	2.5 \
RAID support	Yes
HDD interface	-
Optical drive type	No
Total storage capacity	300 GB
Maximum storage capacity	- TB
Number of HDDs installed	16
Memory slots	24
Internal memory	96 GB
Memory clock speed	1866 MHz
Internal memory type	DDR3-SDRAM
Maximum internal memory	- GB
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
PCI Express x8 slots	3
Chassis type	Rack (2U)
Power supply	650 W
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 12000 m
Operating temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 93 %
Operating relative humidity (H-H)	10 - 90 %
Harmonized System (HS) code	84714100

Weight and Dimensions

Depth	712 mm
Width	445 mm
Height	87 mm
