Cisco UCS C240 M3 - Motherboard Ports and RAID Backup Locations

Cisco UCS C240 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)
58
SUPPLEMENTAL MATERIAL
Motherboard USB and SD Ports, and RAID Card Backup Locations
The C240 M3 SFF motherboard has a general-purpose USB socket and two SD sockets, as shown in Figure 11.
The mounting locations for RAID card backup are also shown

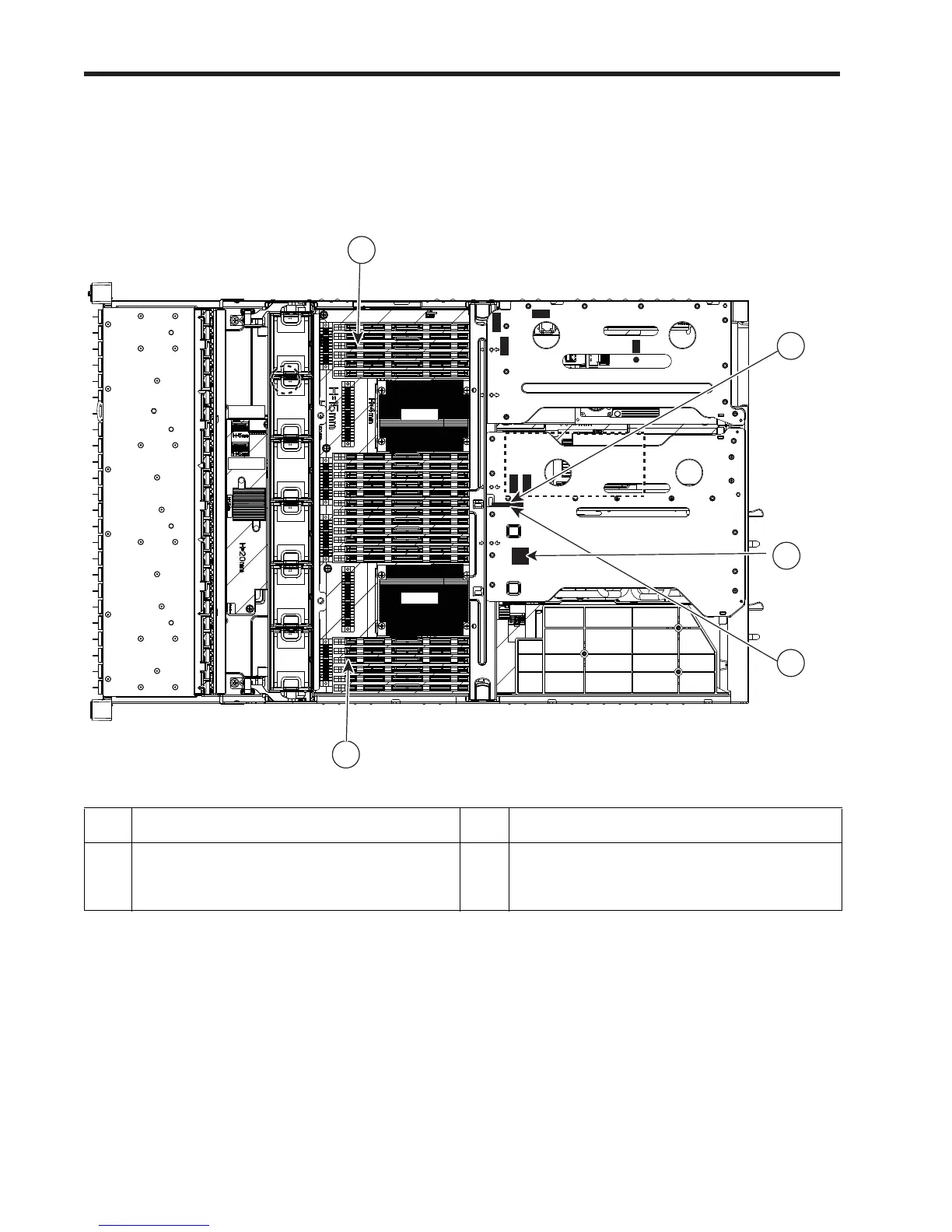

Figure 11 Motherboard USB and SD Ports and RAID Backup Location
1 SD1 connector (on riser 2 board) 3 USB connector (on motherboard)
2 SD2 connector (on riser 2 board) 4 SuperCap RAID data cache power backup
unit mounting locations (two, on air baffle
not shown in this view)
SAS2
SAS1
FAN1
FAN2
FAN3
FAN4
FAN5
FAN6
CPU1
CPU2
SAS1
SAS2
Riser 1
Riser 2
SAS1 SAS2
2
1
3
4
4
