Cisco UCS C240 M3 - Chassis Rear View

Cisco UCS C240 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)
DETAILED VIEWS
5
Chassis Rear View

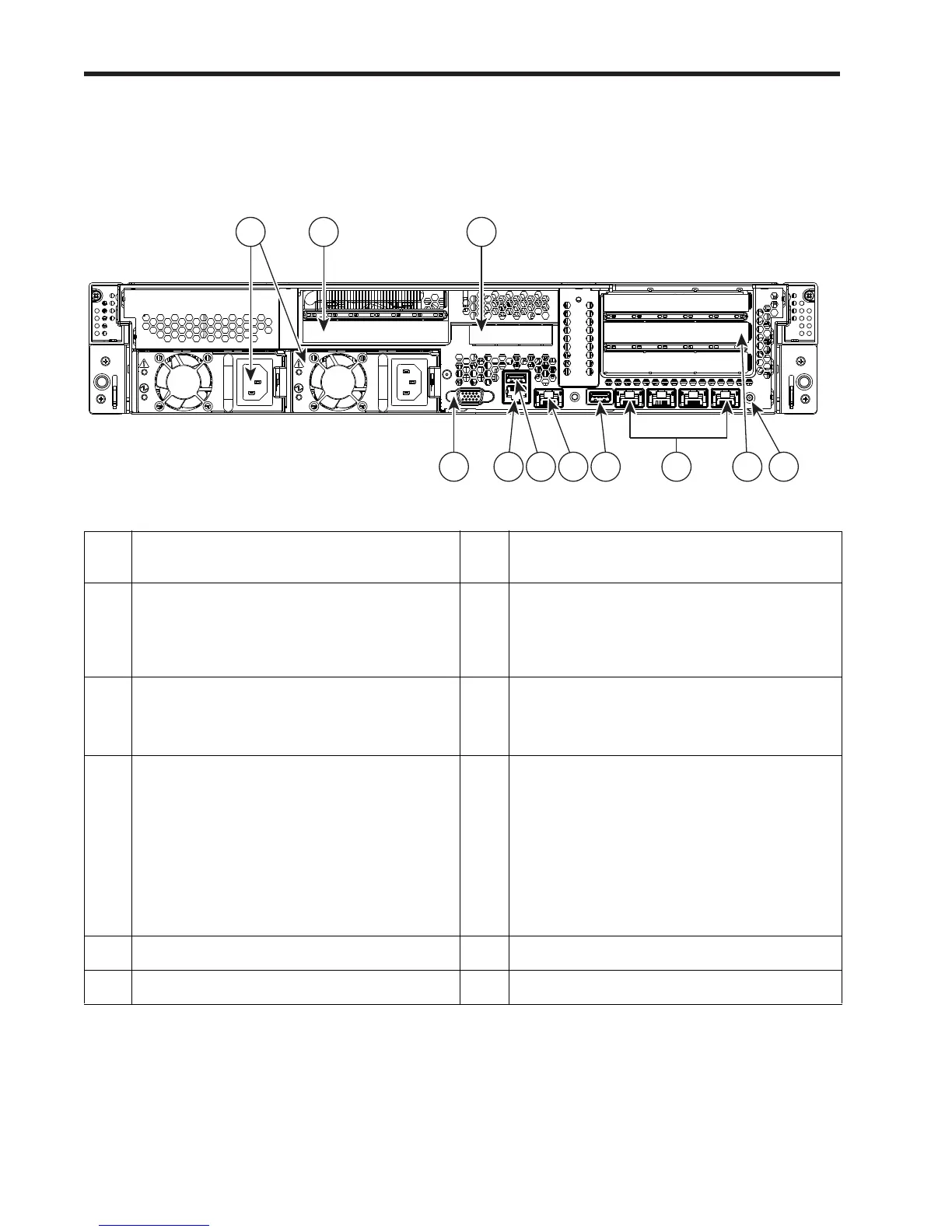

Figure 3 shows the external features of the rear panel.
Figure 3 Chassis Rear View
1 Power supplies (up to two) 7 One RJ-45 10/100/1000 Ethernet dedicated
management port
2 Standard-profile PCIe slot on riser:
PCIe 5—full-height, 3/4-length, x16 lane
width, x24 connector, GPU ready, supports
Cisco CNIC
a
and NCSI
b
Notes . . .
a. CNIC = Cisco Network Interface Card.
b. NCSI = Network Communications Services Interface protocol.
8 USB 2.0 port
3 Low-profile PCIe slot on riser:
PCIe 4—half-height, 3/4-length, x8 lane
width, x16 connector, no NCSI
2
support
9 Quad 1-Gb Ethernet ports
(LAN1, LAN2, LAN3, and LAN4)
4 VGA video connector 10 Standard-profile PCIe slots on riser (three):
PCIe 1—full-height, half-length, x8 lane
width, x8 connector
PCIe 2—full-height, half-length, x8 lane
width, x24 connector, supports Cisco CNIC
1
and NCSI
2
PCIe 3—full-height, half-length, x8 lane
width, x16 connector
5 Serial connector (RJ-45) 11 Rear Identification button/LED
6 USB 2.0 port -
PSU1 PSU2
PCIe 1
PCIe 2
PCIe 3
PCIe 4
PCIe 5
4 98 107 1165
2 3
331826
1
