Solution Design
24
Network Topology

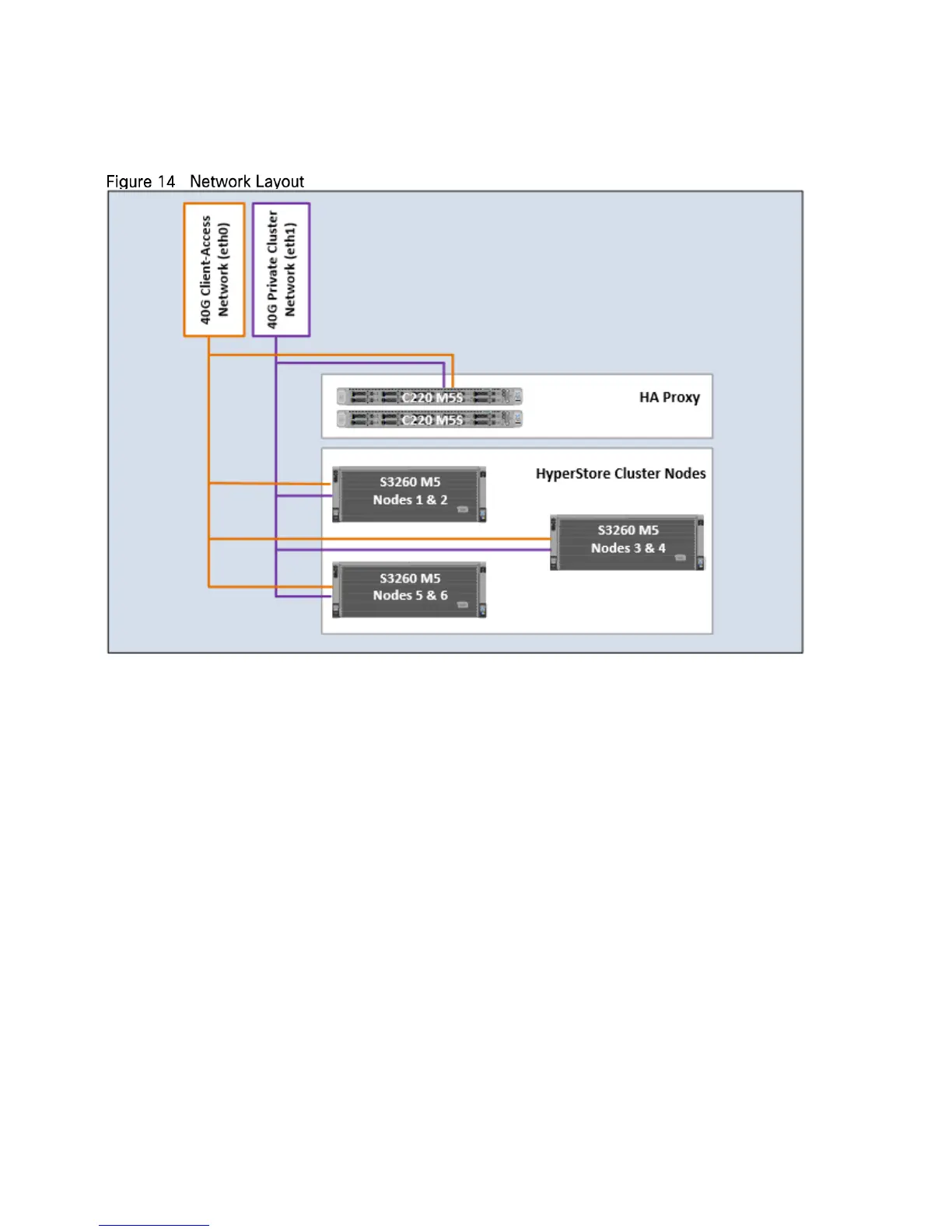

Figure 14 illustrates the Network Topology used in the setup.
High Availability
As part of the hardware and software resiliency, the following tests will be conducted on the test bed. The results
of the tests will be included in the deployment guide (to be published).

Cisco UCS S3260 M5 Specifications

General

Processor	Intel Xeon Scalable processors
Memory	Up to 3TB per node (24 DIMM slots per node)
Storage	Up to 600 TB
Drive Bays	60 x 3.5-inch or 2.5-inch drive bays
Form Factor	4U
Management	Cisco Integrated Management Controller (IMC)
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
