Cisco UCS S3260 Storage Server Chassis Installation and Service Guide
Chapter 3 Maintaining the System
Preparing for System Component Installation or Replacement
Step 6 Power on the server node that you powered off in the first step.

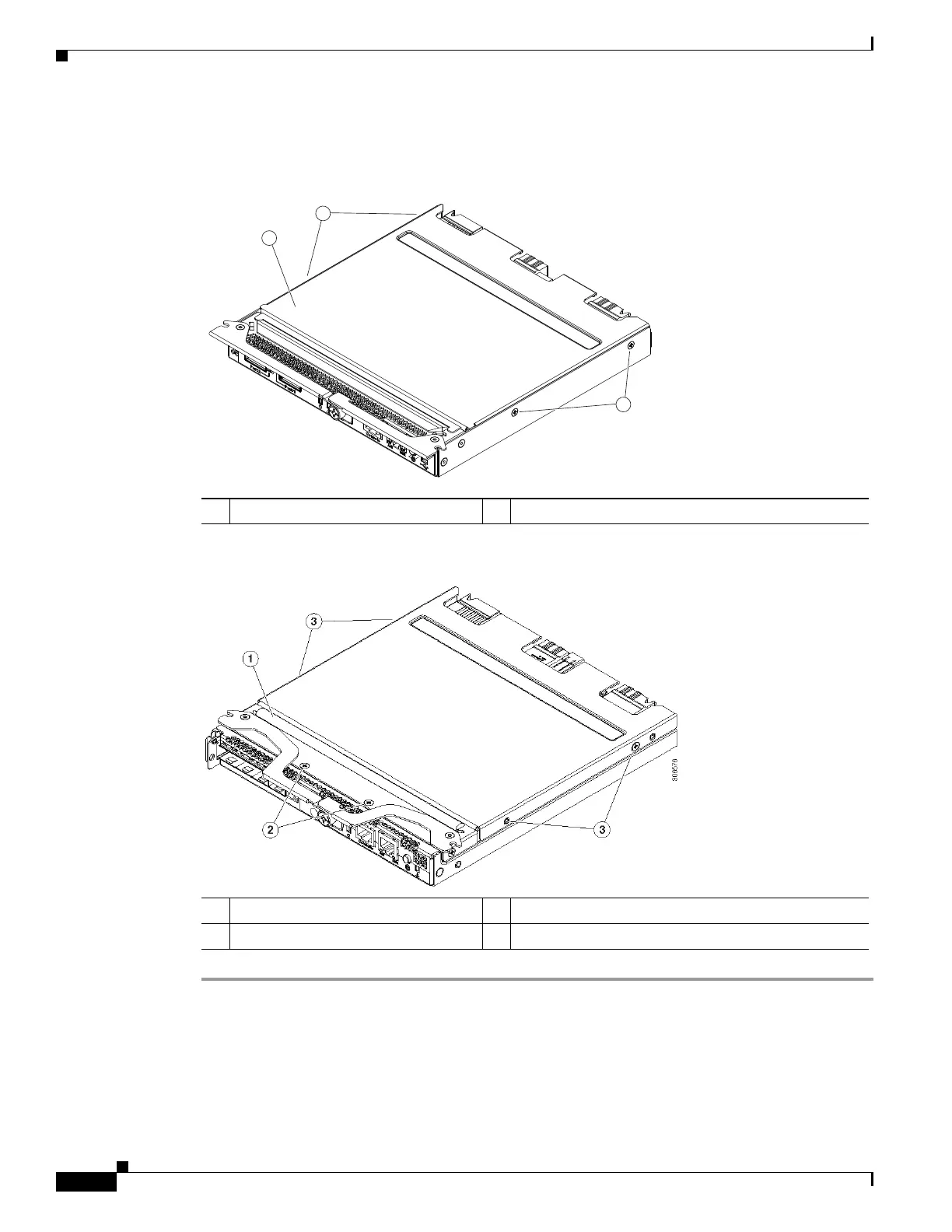

Figure 3-5 Removing the SIOC Cover (Version 02 SIOC, UCS-S3260-SIOC)
Figure 3-6 Removing the SIOC Cover (Version 03 SIOC, UCS-S3260-PCISIOC)
1 SIOC cover 2 Cover screws, four (two on each side of the SIOC)
305042
1
2
2
1 SIOC cover, including ejector levers 3 Four securing screws on sides of cover (two each side)
2 Two securing screws on top of cover

Cisco UCS S3260 Specifications

General

Drive Bays	Up to 56
Maximum Storage Capacity	Up to 600 TB
Power Supply	Up to 4 hot-plug power supplies
Product Type	Storage Server Chassis
Supported Drives	SAS, SATA
Processors	Up to two Intel Xeon Scalable processors
Memory	Up to 1.5 TB DDR4 RAM
Power Supplies	Redundant 80+ Platinum power supplies
Total Drive Bays	56
Management	Cisco UCS Manager
Compatibility	Cisco UCS system
Form Factor	4U rack
