Cisco UCS S3260 Storage Server Chassis Installation and Service Guide
Chapter 3 Maintaining the System
Installing or Replacing System Components

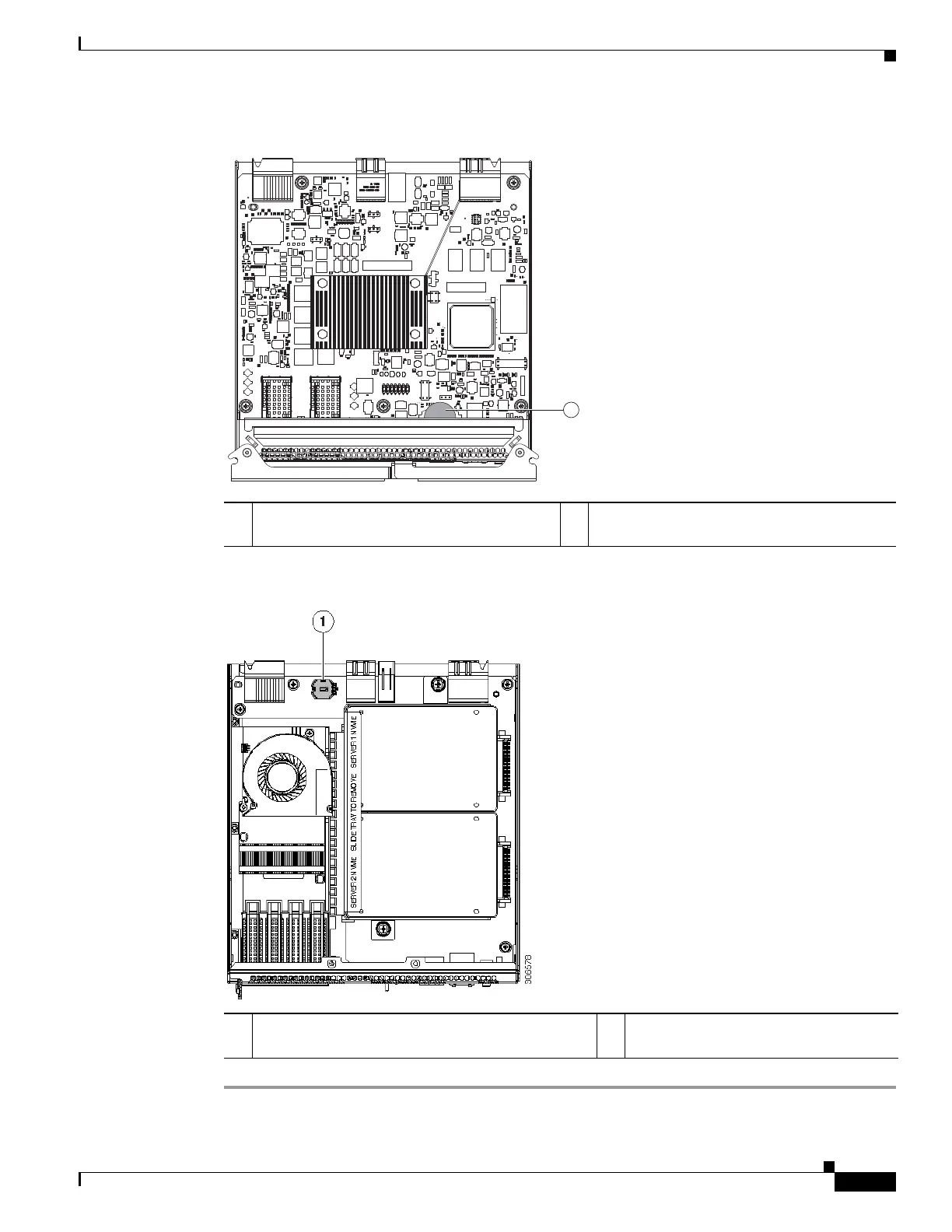

Figure 3-18 RTC Battery Location Inside the Version 02 S3260 SIOC (UCS-S3260-SIOC)
Figure 3-19 RTC Battery Location Inside the Version 03 S3260 SIOC (UCS-S3260-PCISIOC)
1 Battery socket on version 02 SIOC board,
with CR1632 battery
305039
1
1 Battery socket on Version 03 SIOC board,
with CR1632 battery
