3-45
Cisco UCS S3260 Storage Server Chassis Installation and Service Guide
Chapter 3 Maintaining the System
Installing or Replacing System Components
Step 5 Remove the three screws that secure an SSD to the sled. Two screws enter from the outside edge and one
screw enters from the underside of the sled.

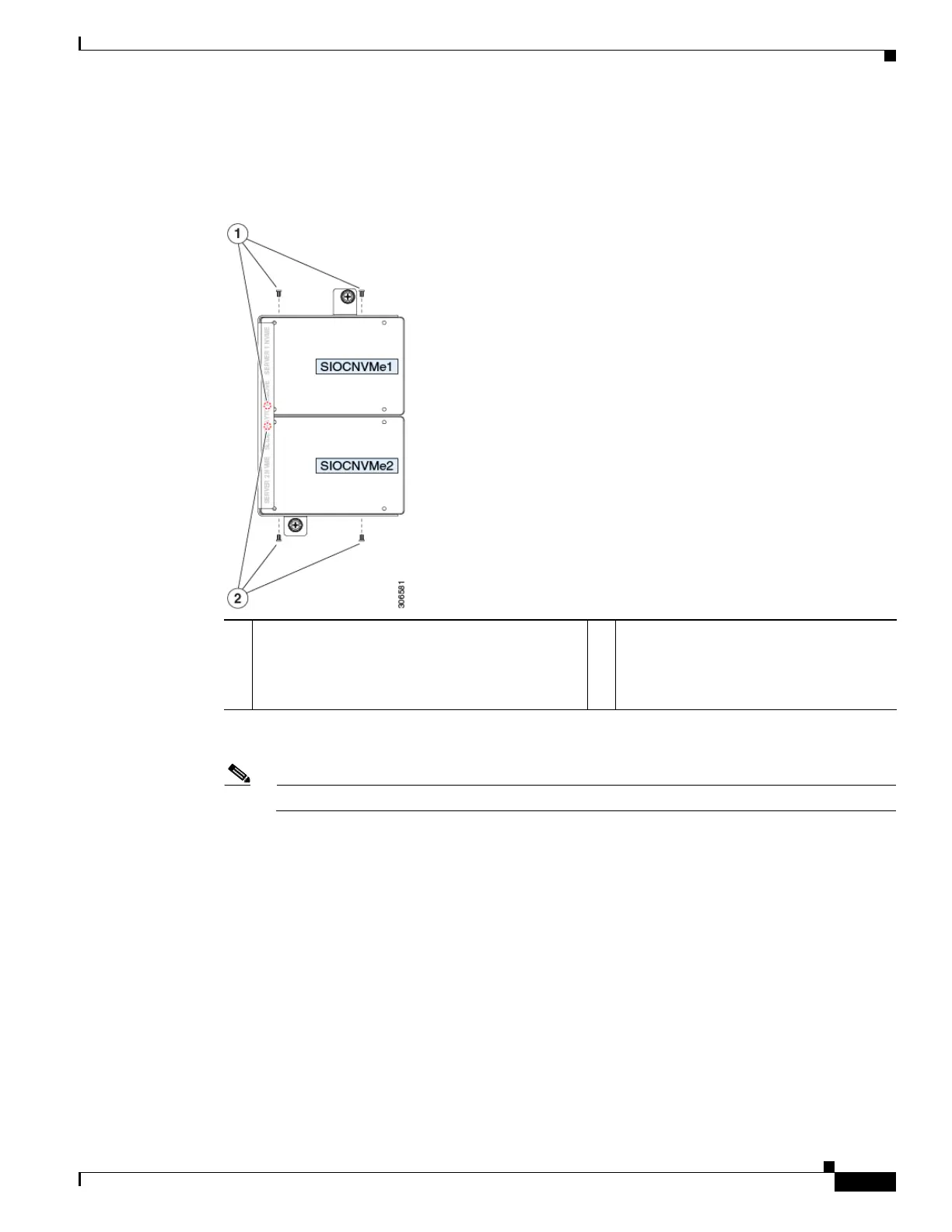

Figure 3-23 NVMe SSD Securing Screws on Sled
Step 6
Install a new NVMe SSD:
Note Before installing, see the SIOC NVMe SSD Population Rules, page 3-42.
a. Install the new SSD to the sled. Set the SSD in place so that the connector end faces away from the
bracket.
b. Install the 3 screws that secure the SSD to the sled.
c. Set the sled into the SIOC so that the connectors on the two SSDs align with the two sockets on the
SIOC board.
d. Slide the SSD connectors into the sockets as you tilt the sled down flat.
e. Tighten the two thumbscrews on the sled assembly to secure it to the SIOC board standoffs.
Step 7 Reinstall the SIOC cover.
Step 8 Replace the SIOC to the system:
a. Push the SIOC into its bay until it stops against the internal midplane.
b. Close the two levers on the SIOC to fully engage the SIOC connector with its backplane.
1 Screws that secure NVME 1 SERVER SSD to the
sled assembly (three)
Two screws enter from the side and one from the
underside.
2 Screws that secure NVME 2 SERVER
SSD to the sled assembly (three)
Two screws enter from the side and one
from the underside.
