• LEDs
• Mode button
All of the switches have similar components. See the following illustrations for examples.
The Catalyst 3850 switches might have slight cosmetic differences on the bezels.
Note

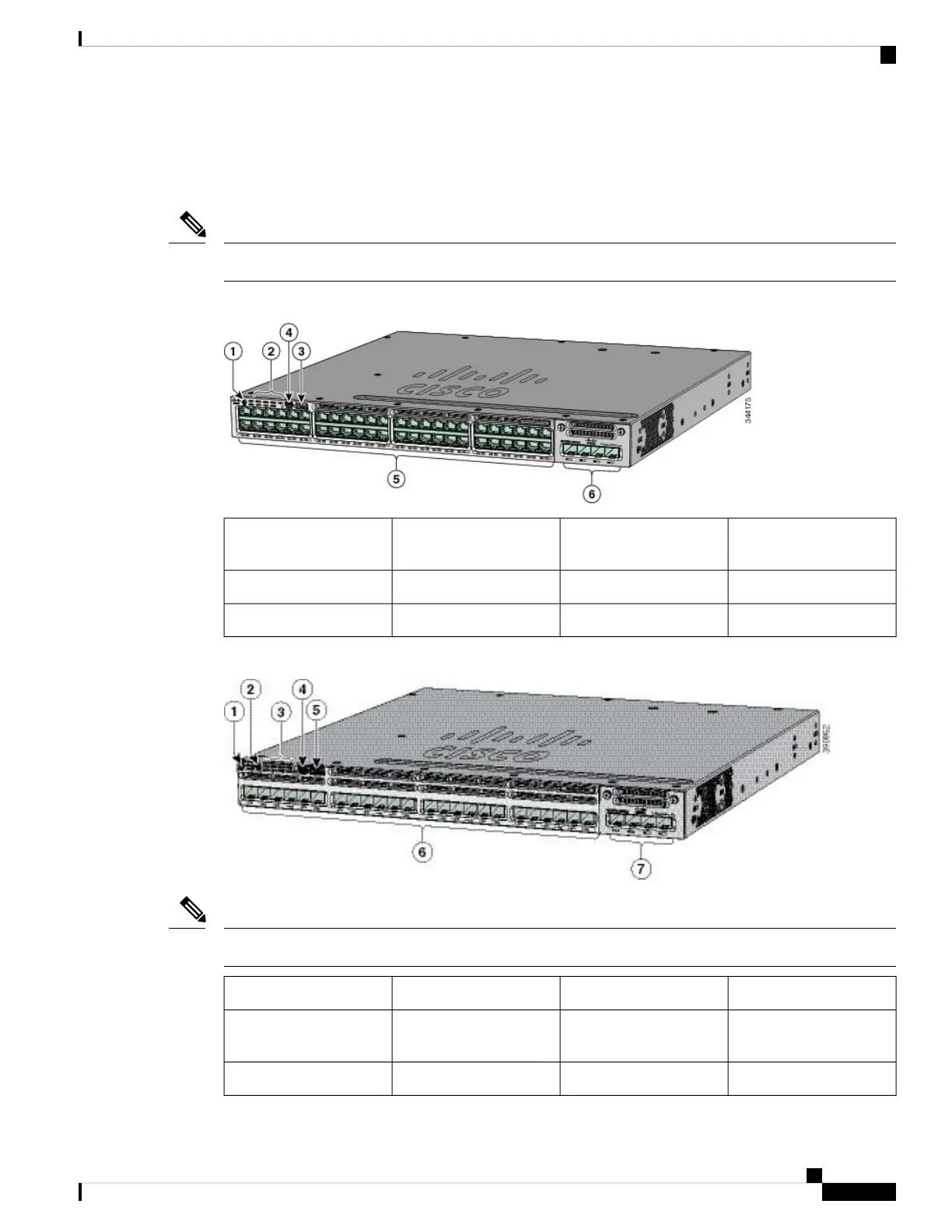

Figure 1: WS-C3850-48P-L Switch Front Panel
USB mini-Type B
(console) port
4Mode button1
10/100/1000 PoE+ ports5Status LEDs2
Network module6USB Type A storage port3
Figure 2: WS-C3850-24S Switch Front Panel
The WS-C3850-12S switches have similar front panels.
Note
USB Type A storage port5UID button1
SFP module slots
(downlink)
6Mode button2
Network module7Status LEDs3
Catalyst 3850 Switch Hardware Installation Guide
7OL-26779-05
Product Overview
Front Panel
