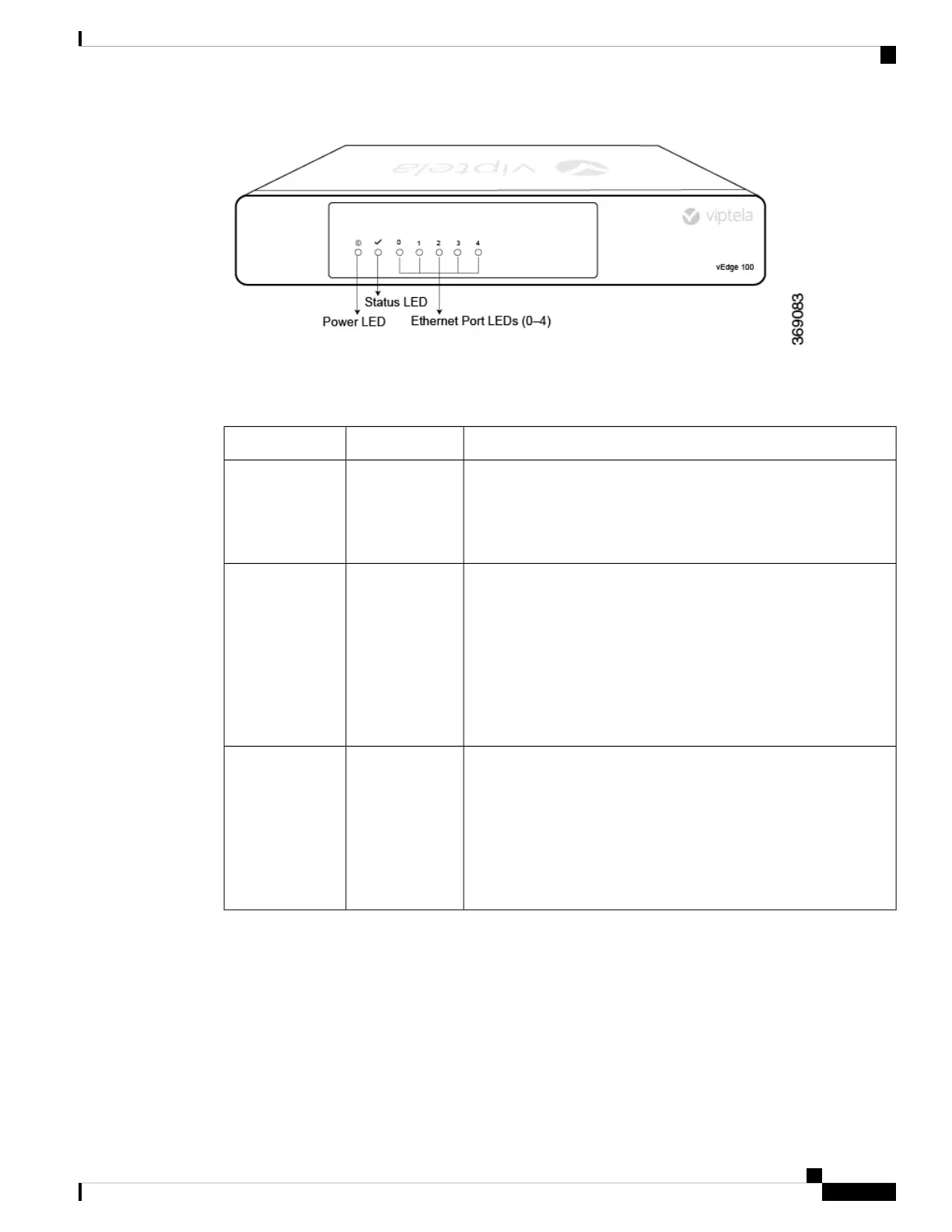

Table 1 describes the LEDs , their color and states, and the status they indicate.
Table 2:
StatusColorLED
• Off: System is not on
• Green: System is healthy and operating fine
• Red: Power supply fault
Green/RedPower
• Off: System is not on
• Solid Green: System is fully functional
• Blinking Green: System is booting up
• Solid Yellow: No Internet connectivity or the system has detected
a minor alarm
• Red: System has detected a major system level fault or alarm
Green/Yellow/RedStatus
• Off: No link
• Solid Green: 1000 Mbps link detected
• Blinking Green: 1000 Mbps link detected and link activity
• Solid yellow: 10/100 Mbps link detected
• Blinking Yellow: 10/100 Mbps link detected and link activity
Green/YellowEthernet Port
(LED 0–4)
Rear Panel
The rear panel of the vEdge 100 router has a Reset button, a Kensington security lock slot, and a GPS antenna
input. See Chassis Views for the location of these components.
Reset Button
The Reset button on the rear panel is recessed, to avoid accidentally pressing it while the router is operational.
To press the Reset button, use a sharp narrow tool. Table 2 describes the effects of pressing the Reset button.
Hardware Installation Guide for vEdge Routers
5
vEdge 100 Router
Front and Rear Panel Components
