PIM and Transceiver Modules
This article describes the Pluggable Interface Modules (PIMs) for the vEdge 2000 router as well as the SFP
and SFP+ transceivers for those PIMs.
PIMs for the vEdge 2000 Router
The vEdge 2000 router offers interface modularity, providing two PIM slots that support two types of PIMs:
• 8x1-Gigabit Ethernet SFP PIM (Model: PIM-8x1GE-SFP)
• 2x10-Gigabit Ethernet SFP+ PIM (Model: PIM-2x10GE-SFP+)
The two PIM slots are labeled PIM Slot 0 and PIM Slot 1.
Figure 1 and Figure 2 show the front panel of the 8x1-Gigabit Ethernet SFP PIM and the 2x10-Gigabit Ethernet
SFP+ PIM, respectively.

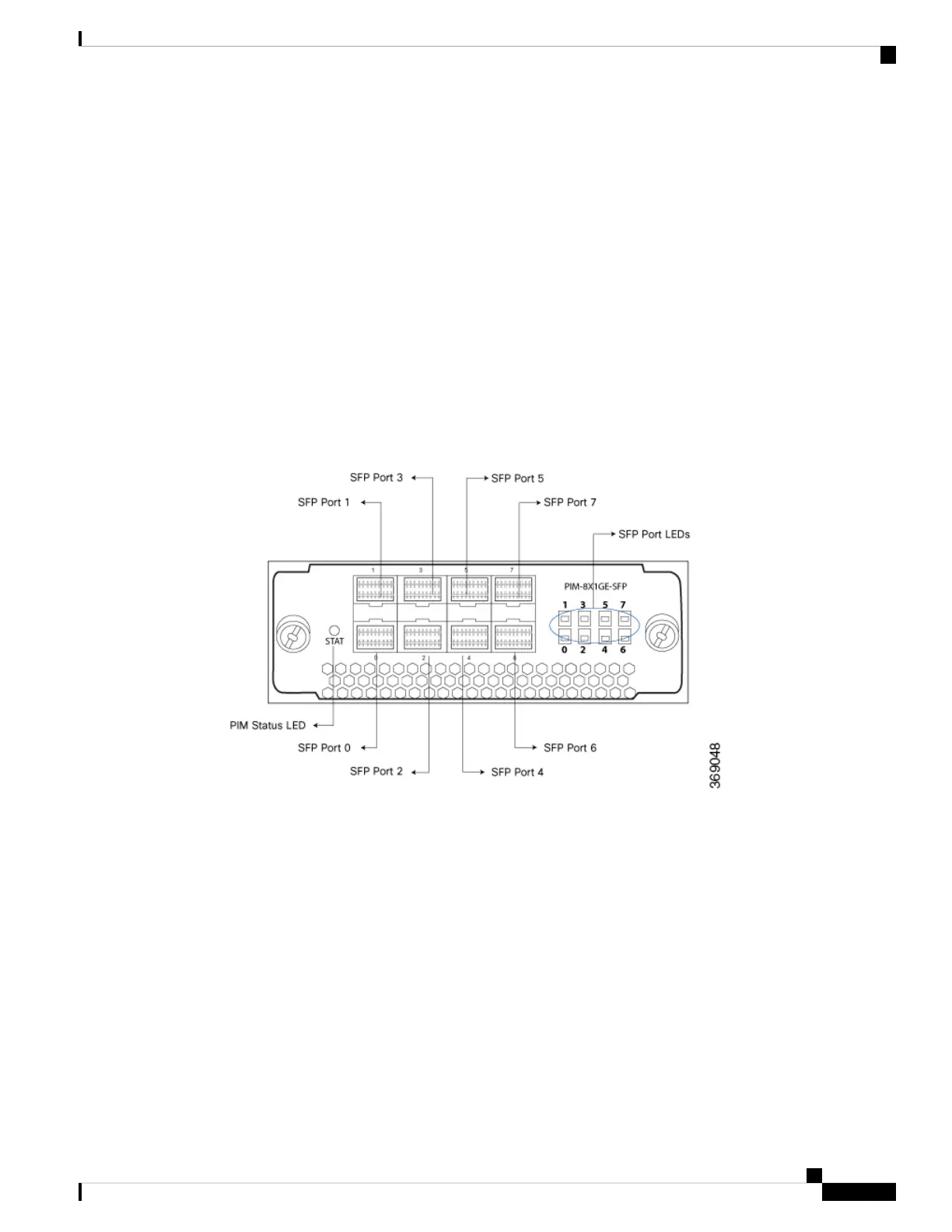

Figure 1: Front Panel of 8x1-Gigabit Ethernet SFP PIM
Figure 2: Front Panel of 2x10-Gigabit Ethernet SFP+ PIM
