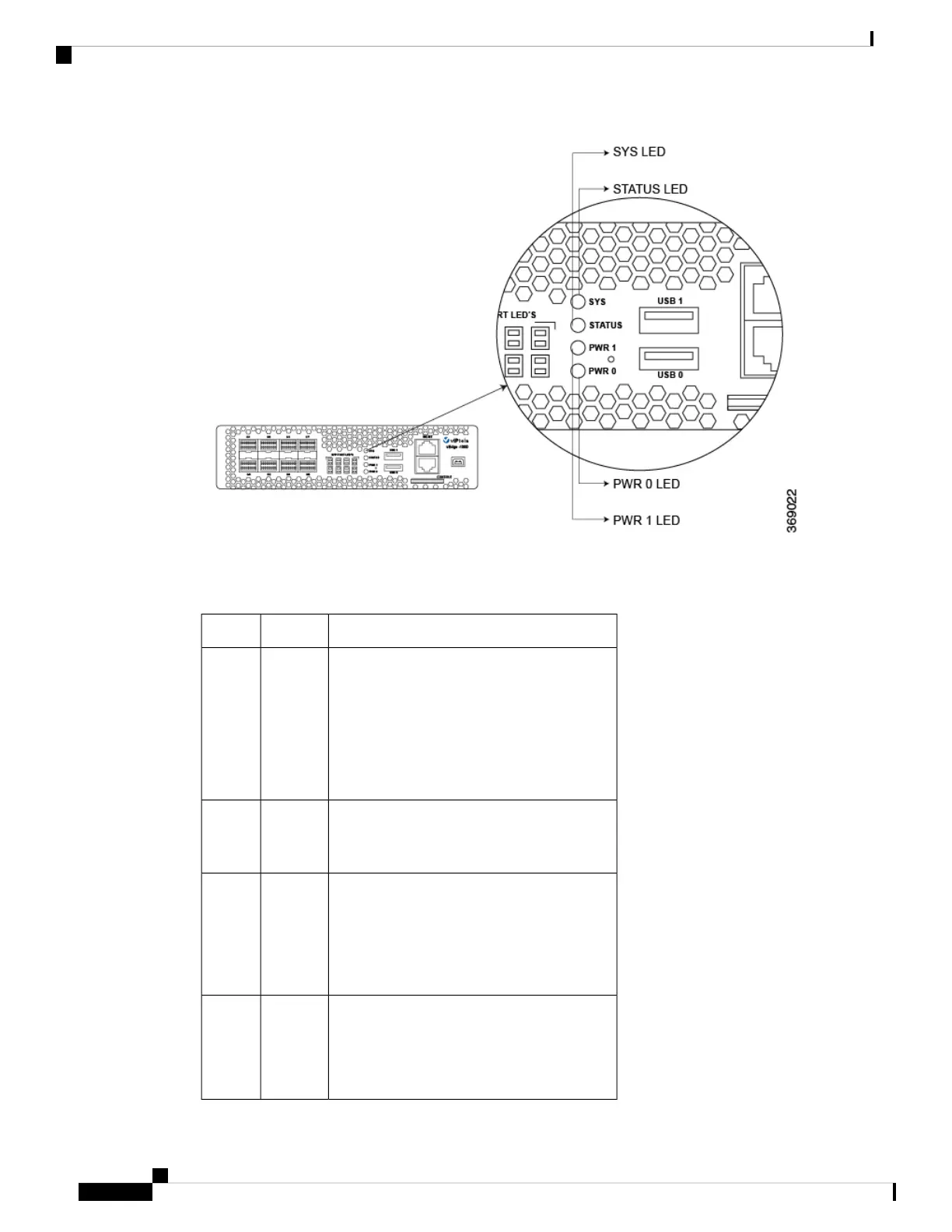

Table 1 describes the LEDs , their color and states, and the status they indicate.
Table 33:
StatusColorLED
• Off: System is not on
• Green: System is healthy and operating
fine
• Blinking Green: System is booting up
• Red: One of the daemons has failed
Green/RedSYS
• Off: OMP is down
• Green: OMP with vSmart is up
GreenSTATUS
• Off: Power adapter input 0 is unpowered
• Green: 12-Volt output is OK on power
input 0
• Red: Fault on power input 0
Green/RedPWR 0
• Off: Power adapter input 1 is unpowered
• Green: 12-Volt output is OK on power
input 1
• Red: Fault on power input 1
Green/RedPWR 1
Hardware Installation Guide for vEdge Routers
116
vEdge 1000 Router
Front Panel Components
