Cisco VG202, Cisco VG202XM, Cisco VG204, and Cisco VG204XM Voice Gateways Hardware Installation Guide
OL-15959-01
Chapter 1 Overview of the Cisco VG202, Cisco VG202XM, Cisco VG204, and Cisco VG204XM Voice Gateways
Physical Description

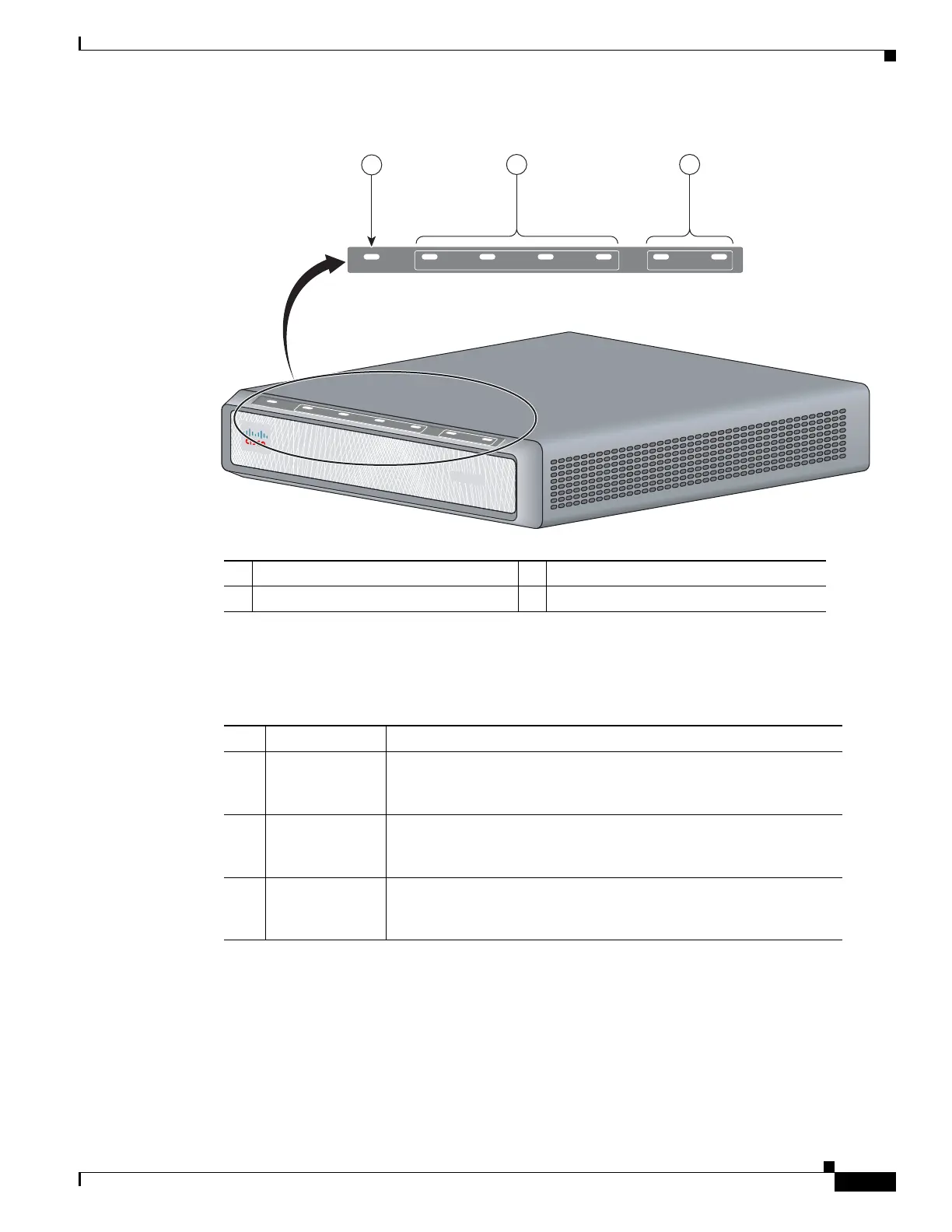

Figure 1-5 Cisco VG204 Chassis LEDs
Table 1-1 describes the status of each LED on the Cisco VG202, Cisco VG202XM, Cisco VG204, and
Cisco VG204XM chassis.
Product Serial Number Location
The serial number label for the Cisco VG202, Cisco VG202XM, Cisco VG204, and Cisco VG204XM
voice gateways is located on the bottom of the chassis, near the compliance label. The size of the serial
number label is 0.25 x 1 inch (0.635 x 2.54 centimeters). It has the letters “SN:” followed by eleven
characters. See Figure 1-6.
1 OK LED 2 FXS0, FXS1, FXS2, FXS3 LEDs
3 Fast Ethernet 0/0 and 0/1 LEDs
V
G204
O
K
F
X
S
0
/
0
0/
1
0
/
2
F
E
0
/
0
0
/
1
0
/
3
272226
OK 0/0 0/00/1 0/10/2 0/3
FXS FE
2
3
1
Table 1-1 Cisco VG202, Cisco VG202XM, Cisco VG204, and Cisco VG204XM LEDs
No LED/Color Description
1PWR
OK—green
Off—no power
Steady on—normal operation
Slow blink—bootup phase or in ROMMON monitor mode
2FXS ports 0
through
3—green
Off—On hook
Steady On—Off hook
3 Fast Ethernet
ports 0/1—green
Off—No link
Steady on—link
Blinking—TXD/RXD data
