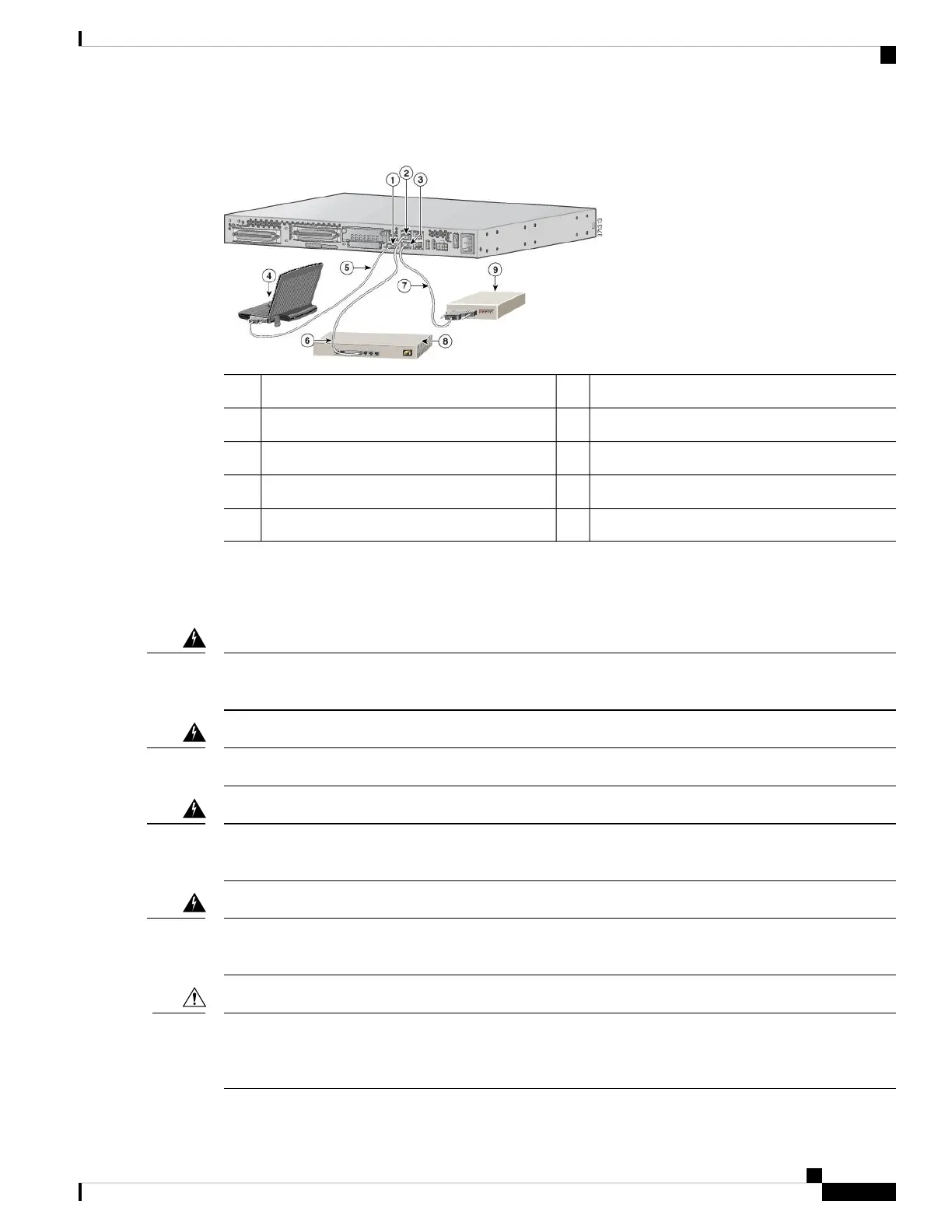

Figure 7: LAN and Administrative Access Connections
RJ-45-to-DB9 auxiliary cable6Mini USB port1
RJ-45-to-DB25 console cable7AUX port2
Ethernet hub8Console port3
Modem9PC4
USB cable5
Connecting Power
Do not work on the system or connect or disconnect cables during periods of lightning activity. Statement
1001
Warning
Read the installation instructions before you connect the system to its power source. Statement 1004
Warning
This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the
protective device is rated not greater than 120 V, 15 A or 240 V, 16 A for the Circuit Breaker. Statement 1005
Warning
This unit is intended for installation in restricted access areas. A restricted access area can be accessed only
through the use of a special tool, lock and key, or other means by security. Statement 1017
Warning
The Cisco chassis provides inputs for both AC and DC power. Design your installation to use only one type
of power. Do not use AC and DC power at the same time. If you do, the unit stops operating, and you must
reboot it with only a single power source.
Caution
Installing the Cisco VG310 and Cisco VG320 Voice Gateways
13
Installing the Cisco VG310 and Cisco VG320 Voice Gateways
Connecting Power
