Chapter 5 Installing and Upgrading Internal Modules and FRUs
Removing and Installing CompactFlash Memory Cards

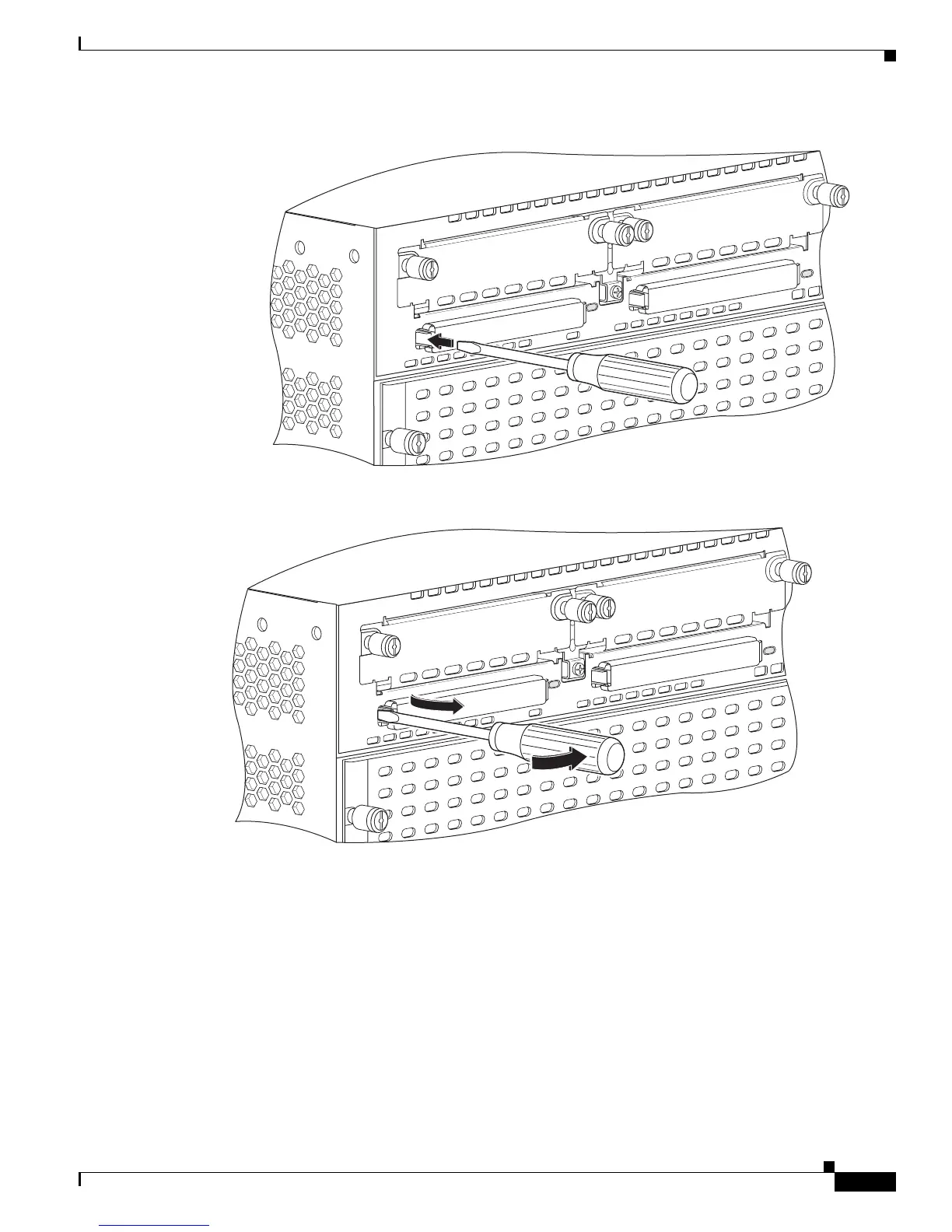

Figure 5-42 Inserting Screwdriver Into the CompactFlash Cover
Figure 5-43 Removing the CompactFlash Cover
Step 3
Press the ejector button next to the CompactFlash memory card. The ejector button moves outward so
that it projects from the panel.
CF 1
CF 0
DO NOT REMOVE DURING
NETWORK OPERATION
DO NOT REMOVE DURING
NETWORK OPERATION
252934
CF 1
CF 0
DO NOT REMOVE DURING
NETWORK OPERATION
DO NOT REMOVE DURING
NETWORK OPERATION
252935
