Cisco 2900 and 3900 Series Hardware Installation
OL-18712-01
Chapter 3 Installing and Connecting the Router
Installing the Router

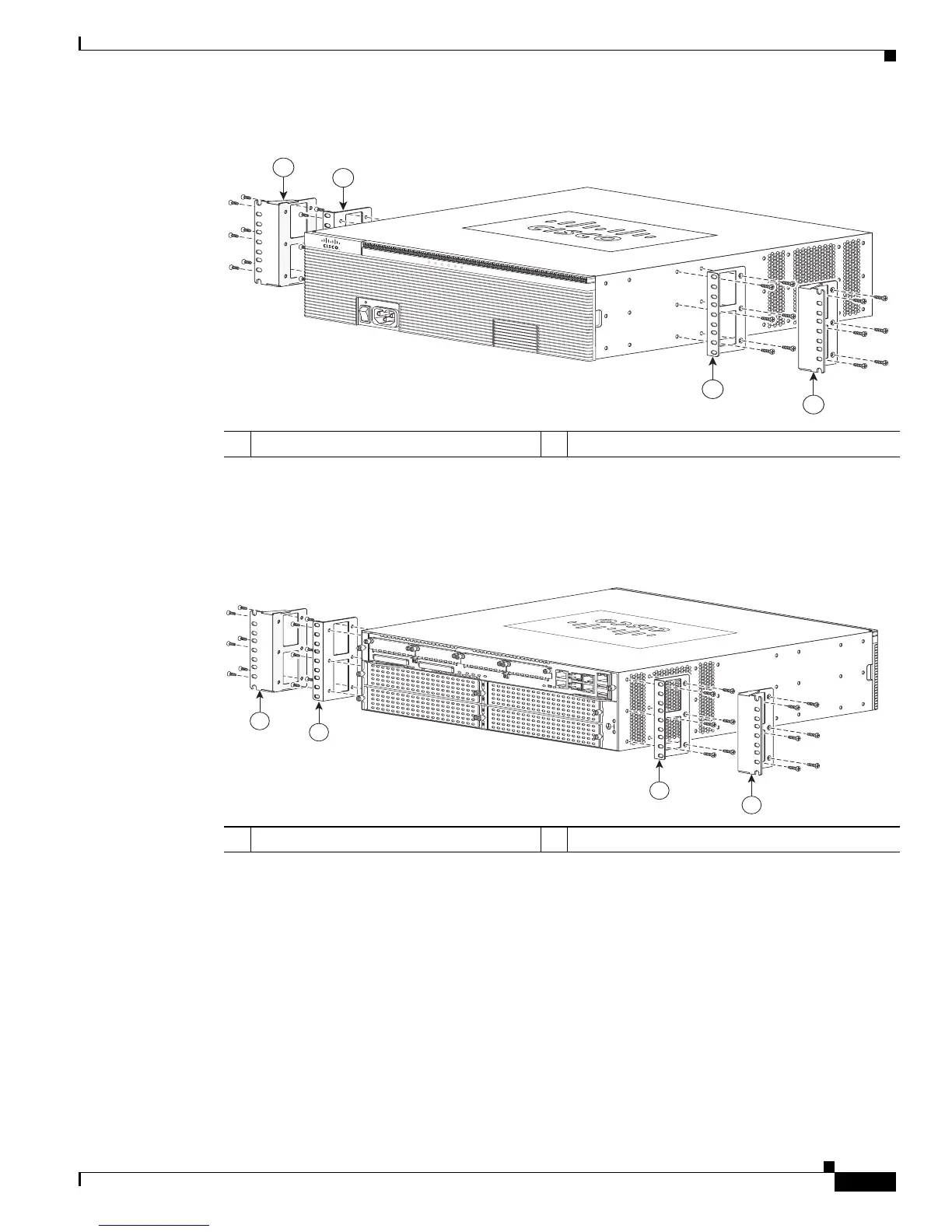

Figure 3-9 Bracket Installation for Center-Front Mounting
Figure 3-10 Bracket Installation for Rear Mounting
1 23-inch EIA brackets 2 19-inch EIA brackets
250924
SY
S
AC
T
SYS
P
W
R1
AU
X
P
W
R
1
SYS
P
W
R
2
AU
X
P
WR
2
Cisco 3900 Series
1
2
1
2
1 23-inch EIA brackets 2 19-inch EIA brackets
