Cisco WS-SUP720-3B - Supervisor Engine 720 User Manual

2-11
Cisco 7600 Series Router Supervisor Engine and Route Switch Processor Guide
OL-10100-11
Chapter 2 Route Switch Processors and Supervisor Engines
RSP720 with 10GE Uplink Ports

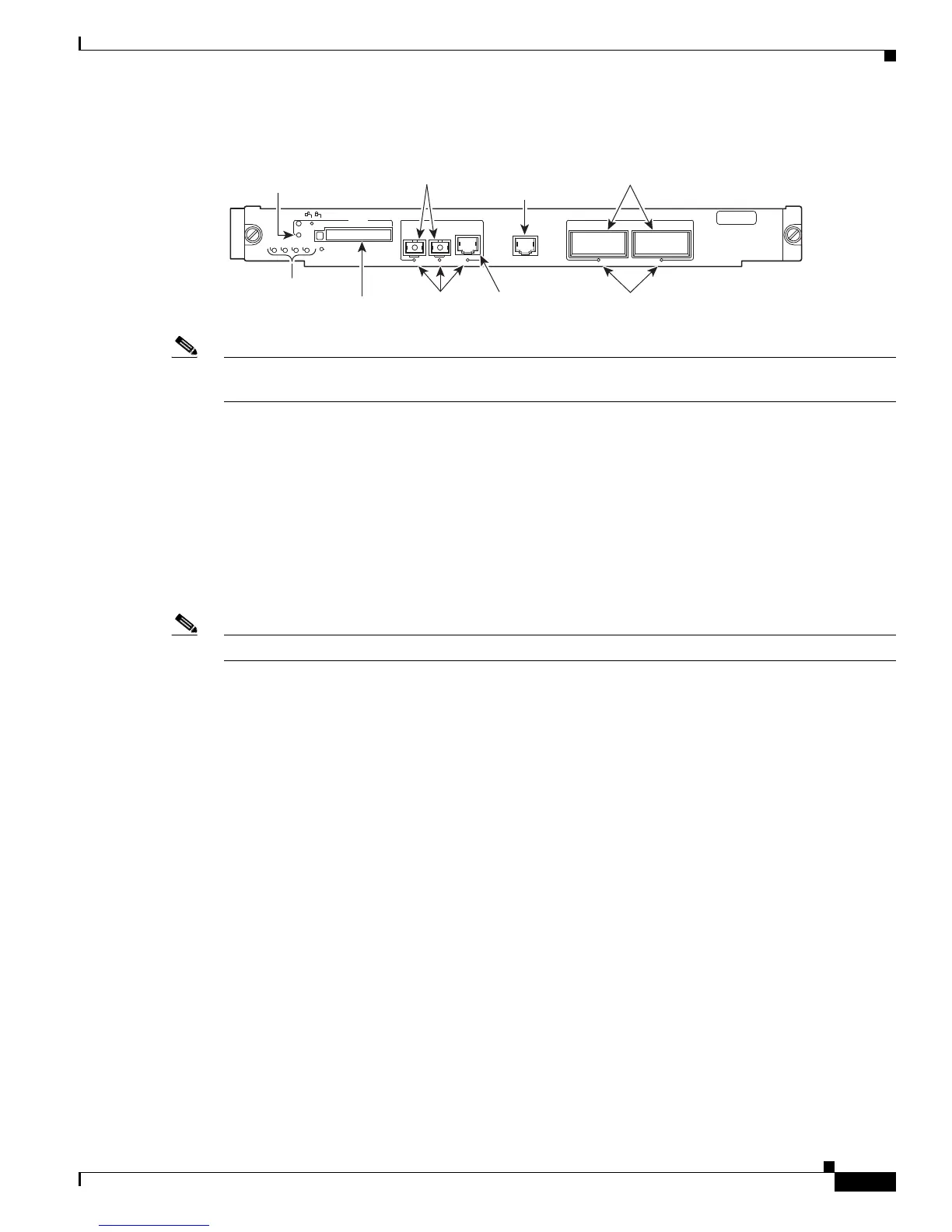

Figure 2-2 RSP720-3C-10GE Front Panel
Note Use Category 5 Shielded Twisted Pair cable at the port that supports the10/100/1000-Mbps RJ-45
connector.
RSP720-10GE Features
The RSP720-10GE provides all of the features of the RSP720 and also provides the following benefits:
• The RSP720-10GE has two 10GE uplink ports and three 1GE uplink ports. You can use the 10GE
ports as high-bandwidth uplinks and save chassis slots for high-density interfaces, such as a
SIP/SPA. This is especially useful in smaller chassis and in redundant configurations. For the three
1GE uplink ports, two ports support 1-Gbps SFP modules and one port supports a 10/100/1000-Mbps
RJ-45 connector.
Note Use CAT5 Shielded Twisted Pair cable at the port that supports the10/100/1000-Mbps RJ-45 connector.
• The RSP720-10GE supports the following line rates for uplink traffic and backplane forwarding:
– 10 gigabits per second (Gbps) on both 10GE ports
– 1 Gbps on all three 1GE ports
– 16 Gbps backplane forwarding
When all five uplink ports are operational, the total bandwidth for uplink traffic is 20 Gbps (20 GE).
• The RSP720-10GE provides flexible memory options like the RSP720. The RSP720-10GE ships on
the route processor (RP) with a default 2-GB memory for the 3CXL version and 1-GB for the 3C
version. The switch processor (SP) ships with a default 1-GB memory. Memory options are available
to upgrade to 4-GB memory on the RP. From Cisco IOS Release 12.2(33)SRD1 onwards, a 2-GB
memory upgrade option is supported on the SP.
• The RSP720-10GE supports Stateful Switchover (SSO) mode and the uplink ports are supported on
the standby supervisor card beginning with Cisco IOS Release 12.2(33)SRE.
See the “RSP720-10GE Usage Guidelines and Limitations” section on page 2-13 for information about
things to consider when you use the RSP720-10GE.
Supported Chassis, Line Cards, and Modules
The RSP720-10GE supports the following chassis and modules:
• Supported on the Cisco 7604 and 7609 chassis and the Cisco 7603-S, 7606-S, and 7609-S chassis
RSP720-3C-10GE
STATUS SYSTEM
ACTIVE
PWR MGMT
RESET
EJECT
DISK 0
UPLINK
SFP
1
3
10/100/100
3
LINK LINKLINK
CONSOLE
LINK
LINK
4
10GE UPLINK
5
RSP720 WITH INTERATED SWITCH FABRIC/PFC3C-10GE
250253
Disk LEDs
LINK
LEDs
STATUS
LEDs
CompactFlash
Type II slots
1-GE uplink
ports
CONSOLE
port
10/100/1000
uplink port
10-GE uplink
ports
LINK
LEDs
