Cisco XR 12000 Series Hardware Installation Guide

1-15
Cisco XR 12000 Series Router SIP and SPA Hardware Installation Guide
OL-17438-04
Chapter 1 Overview: Cisco XR 12000 Series Router SPA Interface Processors
Cisco XR 12000 SIP-601 Overview

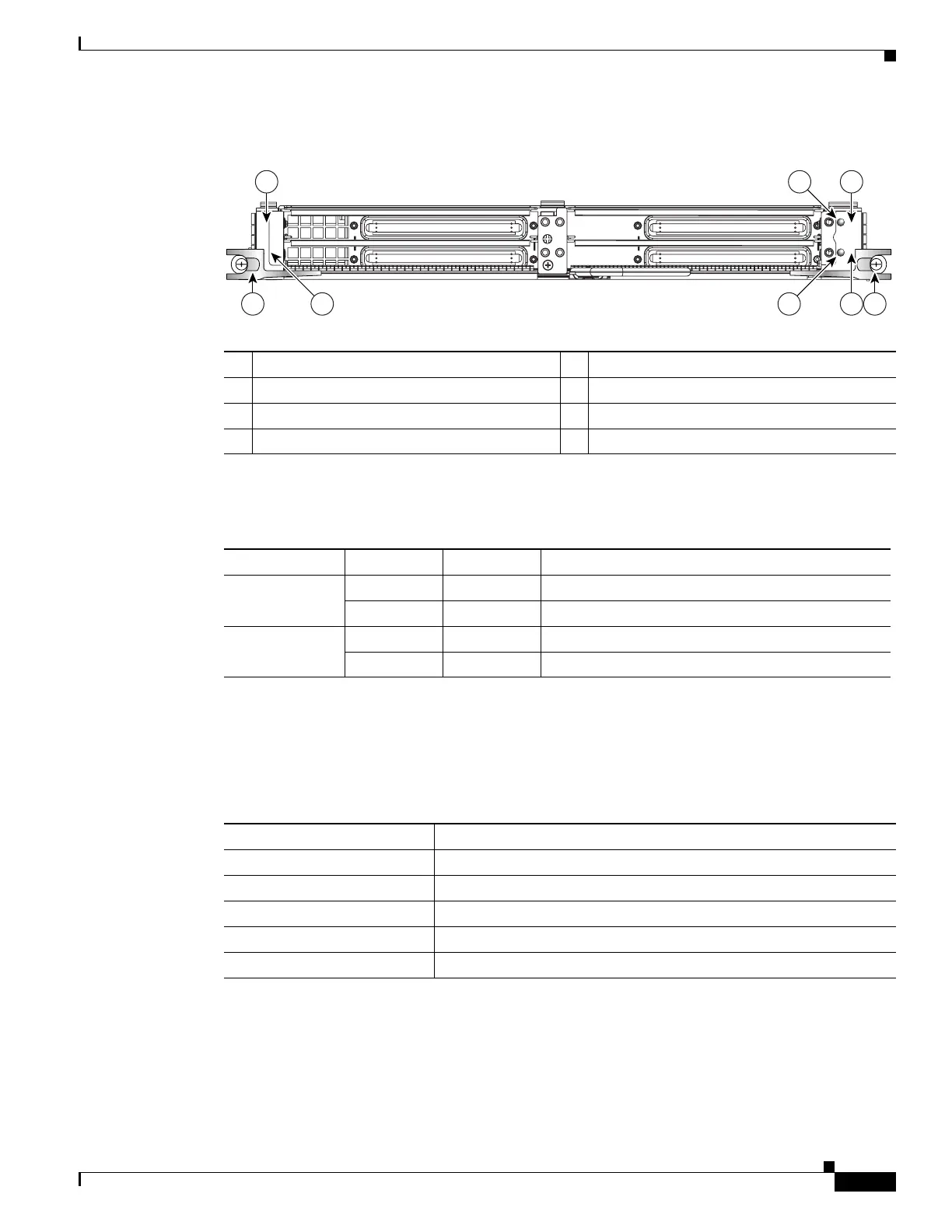

Figure 1-14 Cisco XR 12000 SIP-601 Face Plate
The Cisco XR 12000 SIP-601 LEDs are described in Table 1-14.
Cisco XR 12000 SIP-601 Physical Specifications
The Cisco XR 12000 SIP-601 physical specifications are shown in the following table.
SPA Subslot Numbering on the Cisco XR 12000 SIP-601
The Cisco XR 12000 SIP-601 accepts 4 single-height SPAs (the aggregate throughput should not exceed
2 full-rate SPAs); 2 double-height SPAs; 1 dual-width, double-height SPA, or a combination of
single-height and double-height SPAs.
1 SPA subslot 0 5 Ejector Levers
2 SPA subslot 1 6 Status LED
3 SPA subslot 2 7 Rate LED
4 SPA subslot 3
1
3
0
2
12000-SIP-400
158211
RATE
5 54
1 2
3 7
6
STATUS
Table 1-14 Cisco XR 12000 SIP-601 LEDs
LED Label Color State Meaning
Status Yellow On IOS is loaded and SIP is ready to be enabled.
Green On SIP is active.
Rate Off Off SIP is SIP-401 or SIP-501.
Green On SIP is SIP-601.
Table 1-15 Cisco XR 12000 SIP-601 Physical Specifications
Description Specifications
Physical dimensions Occupies one line card slot on a Cisco 12000 Series Router
Shipping weight 10kg
Operating temperature 32 to 104°F (0 to 40°C)
Relative humidity 10 to 90 percent, noncondensing
Storage temperature –4 to 149°F (–20 to 65°C)
