Chapter 2 Overview: Cisco XR 12000 Series Router Shared Port Adapters
1-Port and 3-Port Clear Channel OC-3 ATM SPA Overview
1-Port and 3-Port Clear Channel OC-3 ATM SPA Interface Specifications
The physical layer interface for the 1-Port and 3-Port Clear Channel OC-3 ATM SPA is Optical Carrier-3
(OC-3), and the data link layer is designed to comply with ATM specifications. The 1-Port and 3-Port
Clear Channel OC-3 ATM SPA provides up to one and three 155-Mbps OC-3 network interfaces,
respectively, for all supported platforms.
Each SPA port accepts an SFP module with a duplex LC-type receptacle that allows connection to
single-mode or multimode optical fiber.
1-Port and 3-Port Clear Channel OC-3 ATM SPA Cables and Connectors
The 1-Port and 3-Port Clear Channel OC-3 ATM SPA uses a small form-factor pluggable (SFP) optical
transceiver module installed in each port for SONET and SDH single-mode and multimode optical fiber
connection (see Figure 2-50).

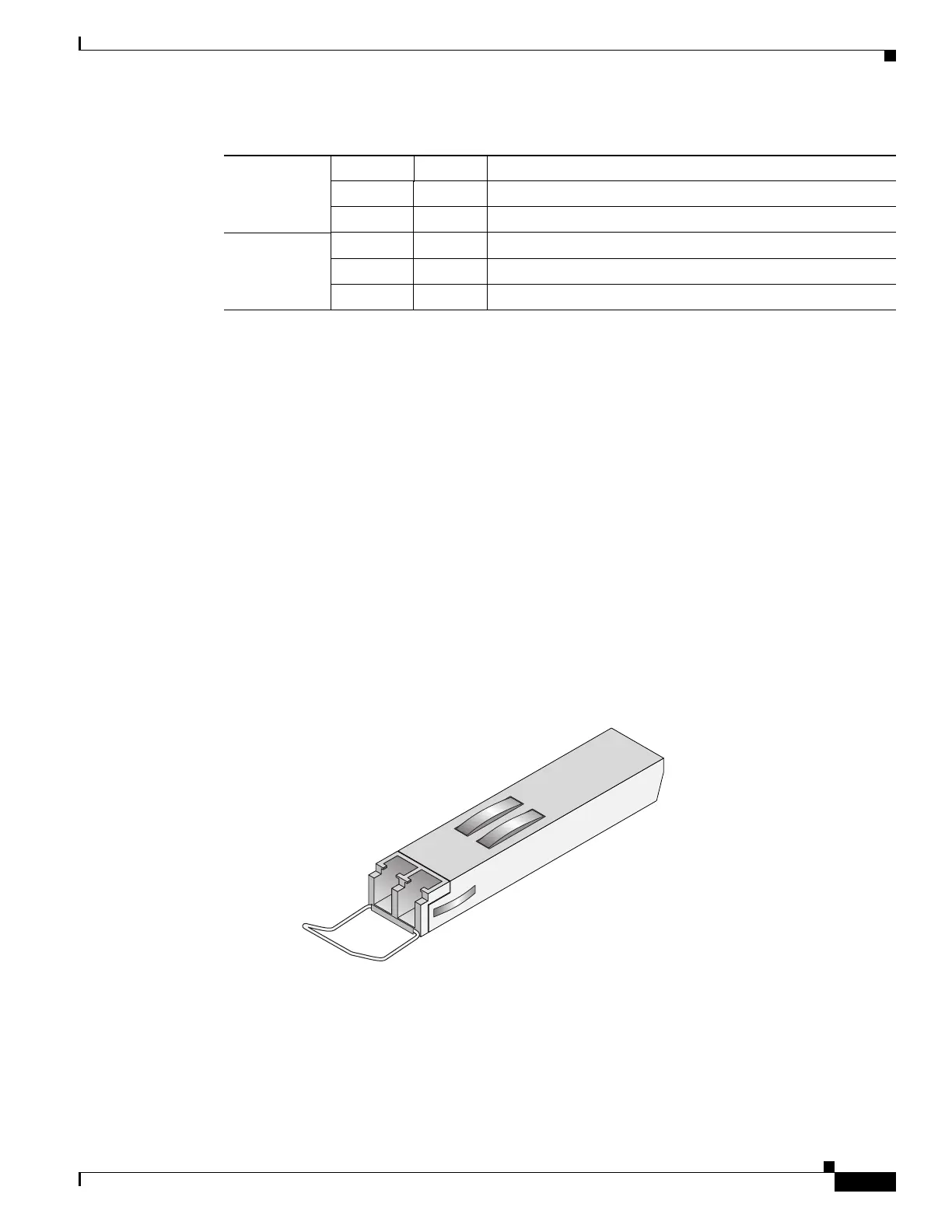

Figure 2-50 SFP Optics Module
The SFP optical transceiver modules used with the 1-Port and 3-Port Clear Channel OC-3 ATM SPA
provide the following optical fiber options:
• Multimode—155-Mbps, OC-3 optical fiber (SONET STS-3c or SDH STM-1)
Use a multimode optical fiber that has a core/cladding diameter of 62.5/125 microns.
Green On Port is enabled by software, and loopback is off.
Amber On Port is enabled by software, and loopback is on.
STATUS Off Off SPA power is off.
Amber On SPA power is on and good, and SPA is being configured.
Green On SPA is ready and operational.
Table 2-44 1-Port and 3-Port Clear Channel OC-3 ATM SPA LEDs (continued)
LED Label Color State Meaning
