Chapter 2 Overview: Cisco XR 12000 Series Router Shared Port Adapters
8 Port FastEthernet SPA Overview
8-Port FastEthernet SPA LEDs
The 8-Port FastEthernet SPA has two types of LEDs: an A/L LED for each individual port and a STATUS
LED for the SPA, as shown in Figure 2-5.

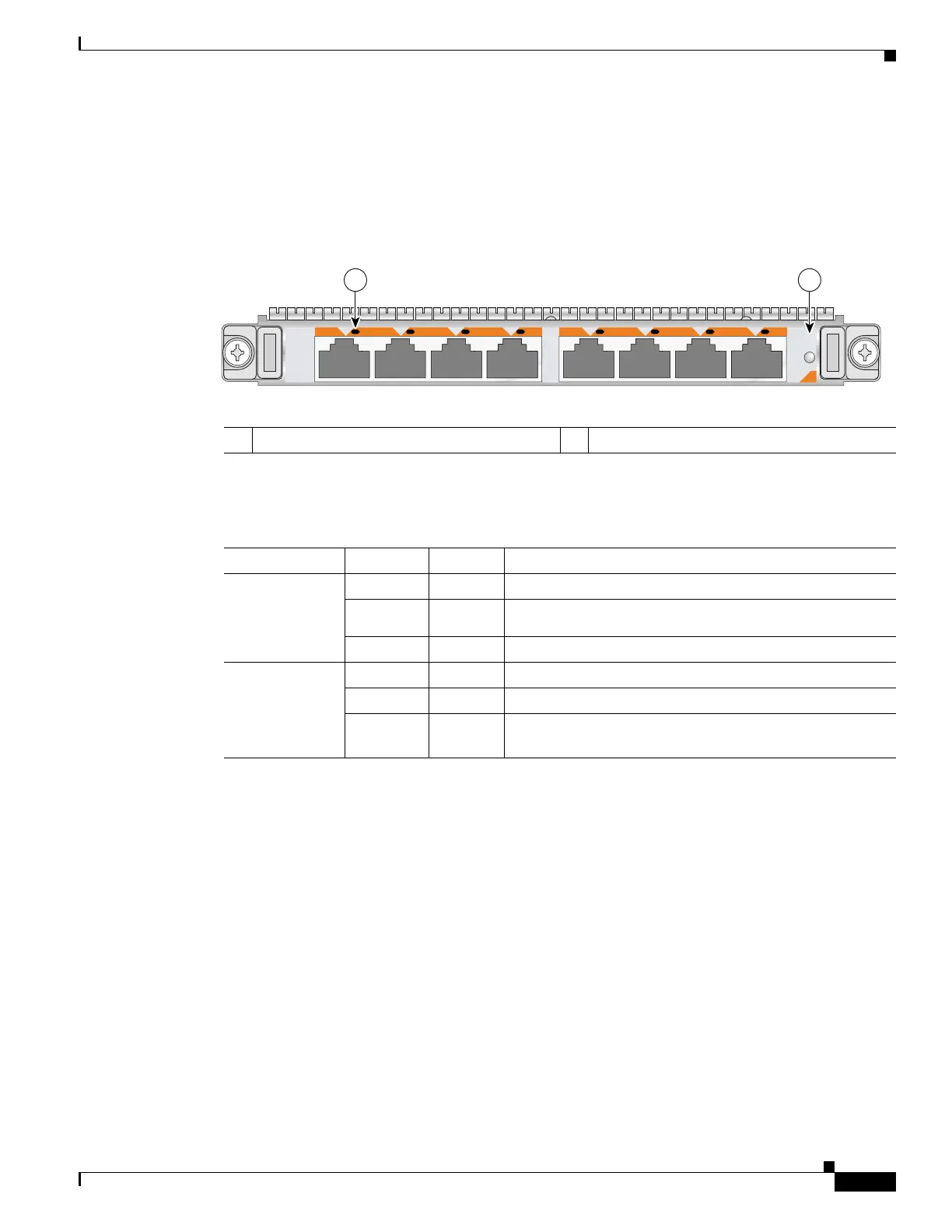

Figure 2-5 8-Port FastEthernet SPA Faceplate
Table 2-9 describes the 8-Port FastEthernet SPA LEDs.
8-Port FastEthernet SPA Cables, Connectors, and Pinouts
The interface connectors on the 8-Port FastEthernet SPA are eight individual RJ-45 receptacles. You can
use all eight interface connectors simultaneously. Each connection supports IEEE 802.3 and Ethernet
10/100BASE-T interfaces compliant with appropriate standards. Cisco Systems does not supply
Category 5 unshielded twisted-pair (UTP) RJ-45 cables; these cables are available commercially.
Figure 2-6 shows the RJ-45 connector.
1 A/L (Active/Link) LED 2 STATUS LED
138712
STATUS
A/L
SPA-8X1FE-TX-V2
0
A/L
1
A/L
2
A/L
3
A/L
4
A/L
5
A/L
6
A/L
7
1 2
Table 2-9 8-Port FastEthernet SPA LEDs
LED Label Color State Meaning
Port Number
A/L (0, 1, 2, 3, 4,
5, 6 or 7)
1
1. In this case, port number refers to the numbered LEDs on the 8-Port FastEthernet SPA (0, 1, 2, 3, 4, 5, 6 or 7). Each LED
number on the 8-Port FastEthernet SPA references a port on the SPA.
Off Off Port is not enabled.
Green On Port is enabled and the link is up.
Amber On Port is enabled and the link is down.
STATUS Off Off SPA power is off.
Green On SPA is ready and operational.
Amber On SPA power is on and good, and the SPA is being
configured.
