Cisco XR 12000 Series Hardware Installation Guide

2-34
Cisco XR 12000 Series Router SIP and SPA Hardware Installation Guide
OL-17438-04
Chapter 2 Overview: Cisco XR 12000 Series Router Shared Port Adapters
1-Port Channelized STM-16/OC-48 SPA Overview
The SFP optical transceiver modules used with the 1-Port Channelized STM-4/OC-12 SPA provide the
following optical fiber options:
• Multimode—622-Mbps, OC-12/STM-4 optical fiber (SONET STS-12 or SDH STM-4)
Use a multimode optical fiber that has a core/cladding diameter of 62.5/125 microns.
• Single-mode—622-Mbps, OC-12/STM-4 optical fiber (SONET STS-12 or SDH STM-4)
Use a single-mode optical fiber that has a modal-field diameter of 8.7 ±0.5 microns. (Nominal
diameter is approximately 10/125 microns.)
For single-mode and multimode optical fiber connections, you can use either a duplex LC-type cable (see
Figure 2-21) or two simplex LC-type cables, one for transmit (TX) and one for receive (RX).
Use single-mode (for intermediate- or long-reach configurations) or multimode optical fiber cable to
connect your router to a network or to connect two 1-Port Channelized STM-4/OC-12 SPA-equipped
routers back to back.
Long-range SFP optical transceiver modules (for long-reach configurations) cannot be connected
back-to-back without using an attenuator between the two of them.

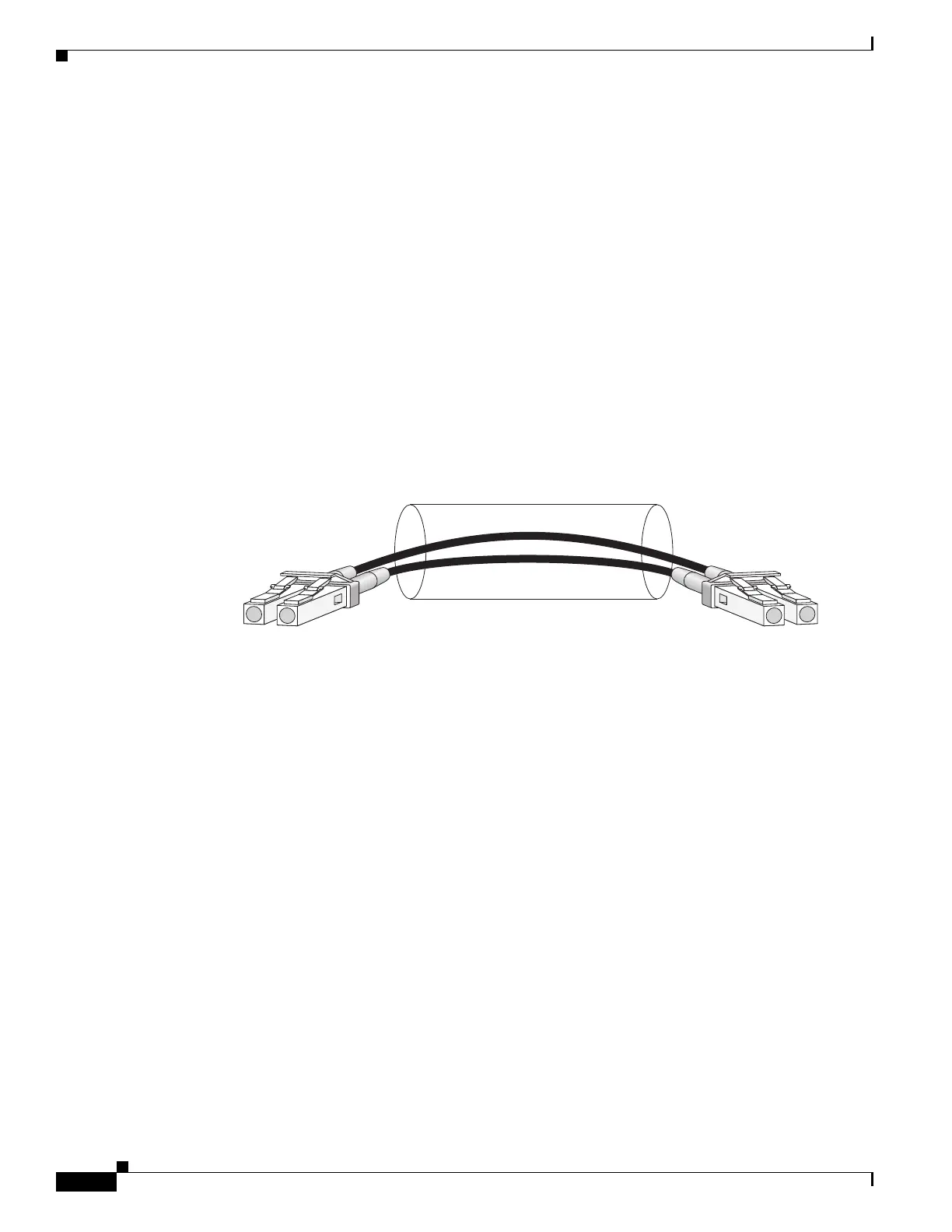

Figure 2-21 LC Type Cables
1-Port Channelized STM-16/OC-48 SPA Overview
The following sections describe the 1-Port Channelized STM-4/OC-12 SPA:
• 1-Port Channelized STM-16/OC-48 SPA LEDs, page 2-34
• 1-Port Channelized STM-16/OC-48 SPA Interface Specifications, page 2-35
• 1-Port Channelized STM-16/OC-48 SPA Cables and Connectors, page 2-36
1-Port Channelized STM-16/OC-48 SPA LEDs
The 1-Port Channelized STM-16/OC-48 SPA has two types of LEDs: an A/L LED for each port and a
STATUS LED, as shown in Figure 2-22.
/ / / /
/ /
TXRX
84929
