— 56 —
Note 1: Drawings above indicate the bottom and side views of CBM-910 main body.
Note 2: The wall hanging screw head shall be below 3 mm long.
2 Rubber foot guide height
Wall mounting hole
Mounting screw

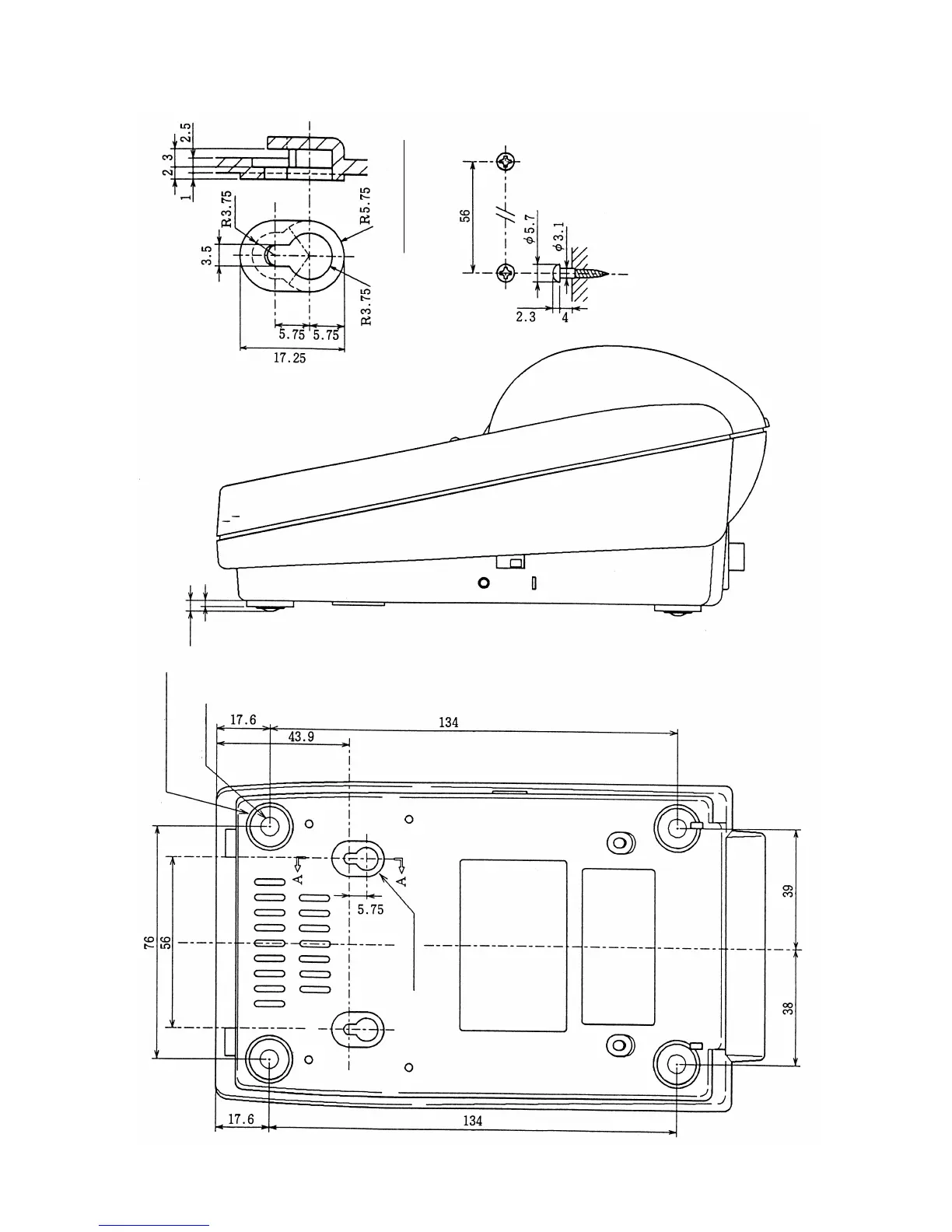

Drawing for Installation
Dimensions (Remarks)
Details A-A (2/1)
Rubber foot height
3.5
Rubber foot guide
φ15.4
Rubber foot (4)
