Citizen CT-S651 Series

CT-S651 Series Service Manual
- 15 -

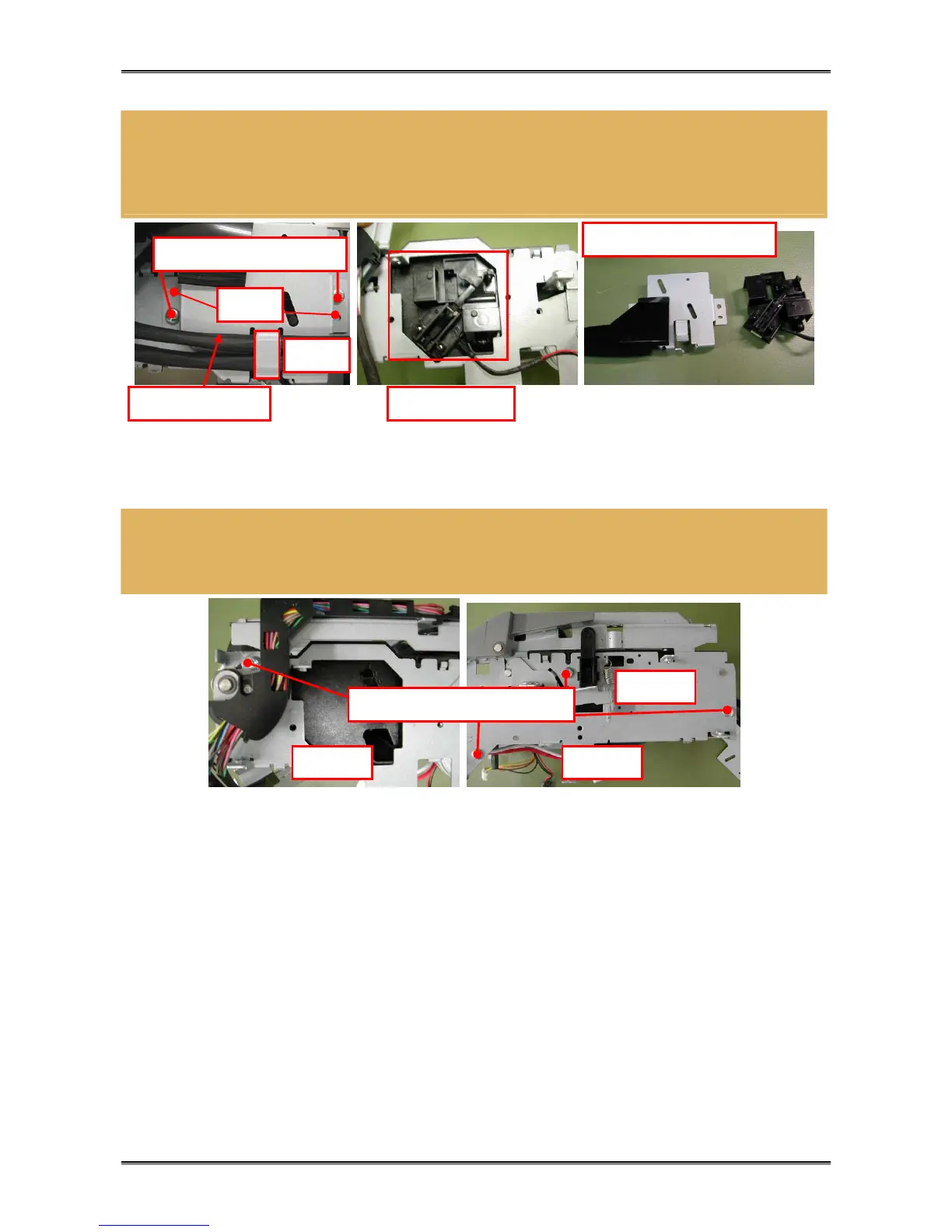

4. Disassembling “UNIT, PNE-02”
Remove two “SCREW, PHT (#2), M3.0 × 8” that fasten “SA, MAIN FRAME” and “PLATE, PNE
SENSOR-02”, and remove “SA, HEAD CABLE-F” from the hook. Remove “PLATE, PNE
SENSOR-02”, and then remove “UNIT, PNE -02”.
<Precaution at disassembly / reassembly>
Align two holes at “PLATE, PNE SENSOR-02” with the bosses at “SA, MAIN FRAME” and secure them with
screws.
5. Disassembling “SA, PAPER HOLDER-02”
Remove four “SCREW, BHT (BT), M3.0 × 6” that fasten “SA, MAIN FRAME” and “SA, PAPER
HOLDER-02”.
<Precaution at disassembly / reassembly>
Remove one screw from the left rear and three screws from the right.
SCREW, PHT (#2), M3.0 × 8
BOSS
Hooks
SA, HEAD CABLE-F UNIT, PNE-02
PLATE, PNE SENSOR-02
SCREW, BHT (BT), M3.0 × 6
Left side Right side
Right side
