- 47 -
Cooperation of the deviations with other functions
During activation of the function set option YES for parameters M4 03, 04, 05. Select field
START and start work.
- after setting function Dosage YES give up and down stage as % values
- after setting function Dosage YES give the mass value in %
after selecting Statistics select field Cancel and cancel previous statistics and change the
attribute NO into attribute YES. Confirm this option and press the key Enter.

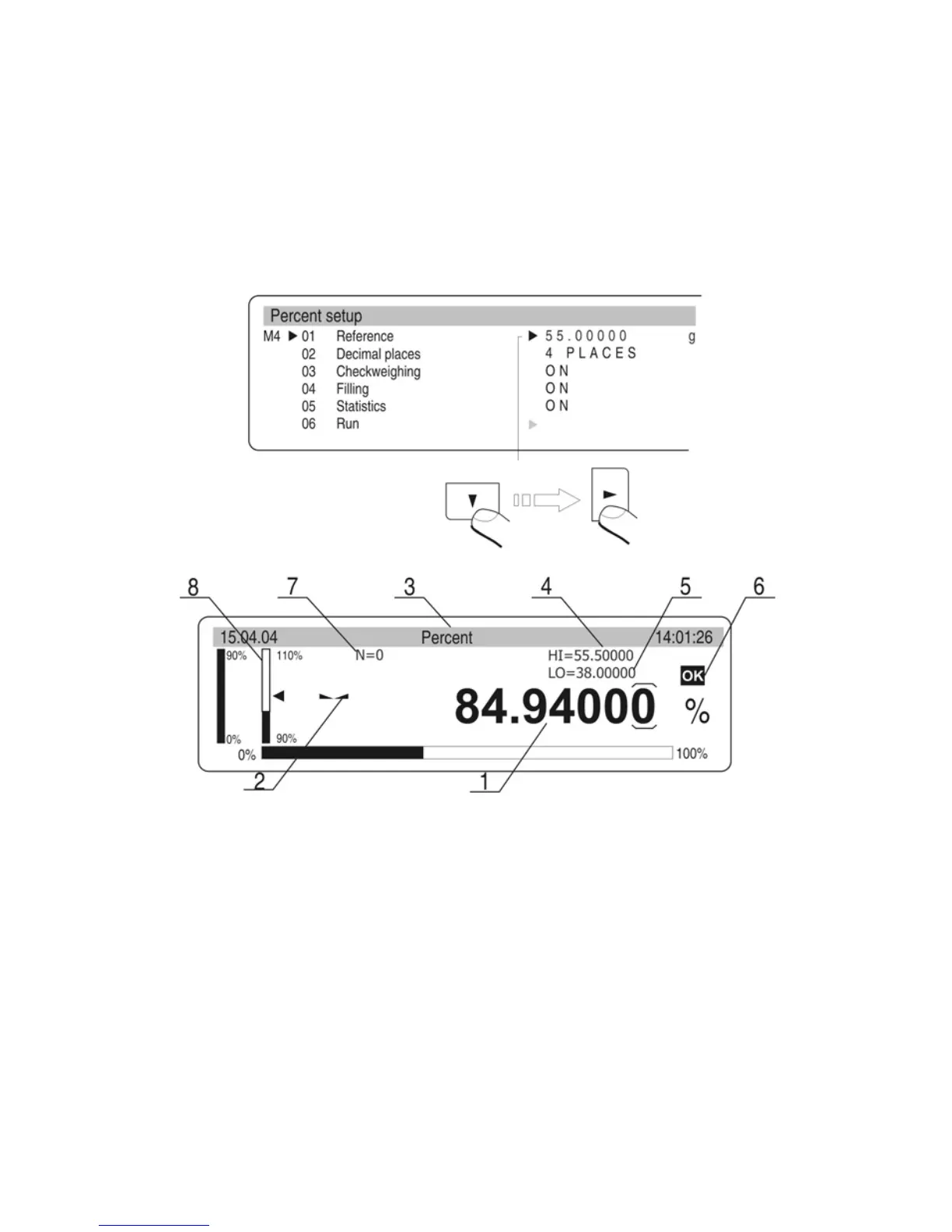

Draw. 44. Percents –cooperation with other functions
1 – percentage value relation of the load on the pan to reference mass
2 – stable measurement sign
3 – function name
4 – REF reference mass
5 – WGH mass on the pan
6 – graph which presents weighign range where the weighing range is
7 – statistics (N=0 – no measurements)
8 – active function dosage (load mass between 90 – 110%)
After measurements eg. 10 (quantity of measurements N=10) user can see results of
statistics of made measurements.
