- 53 -

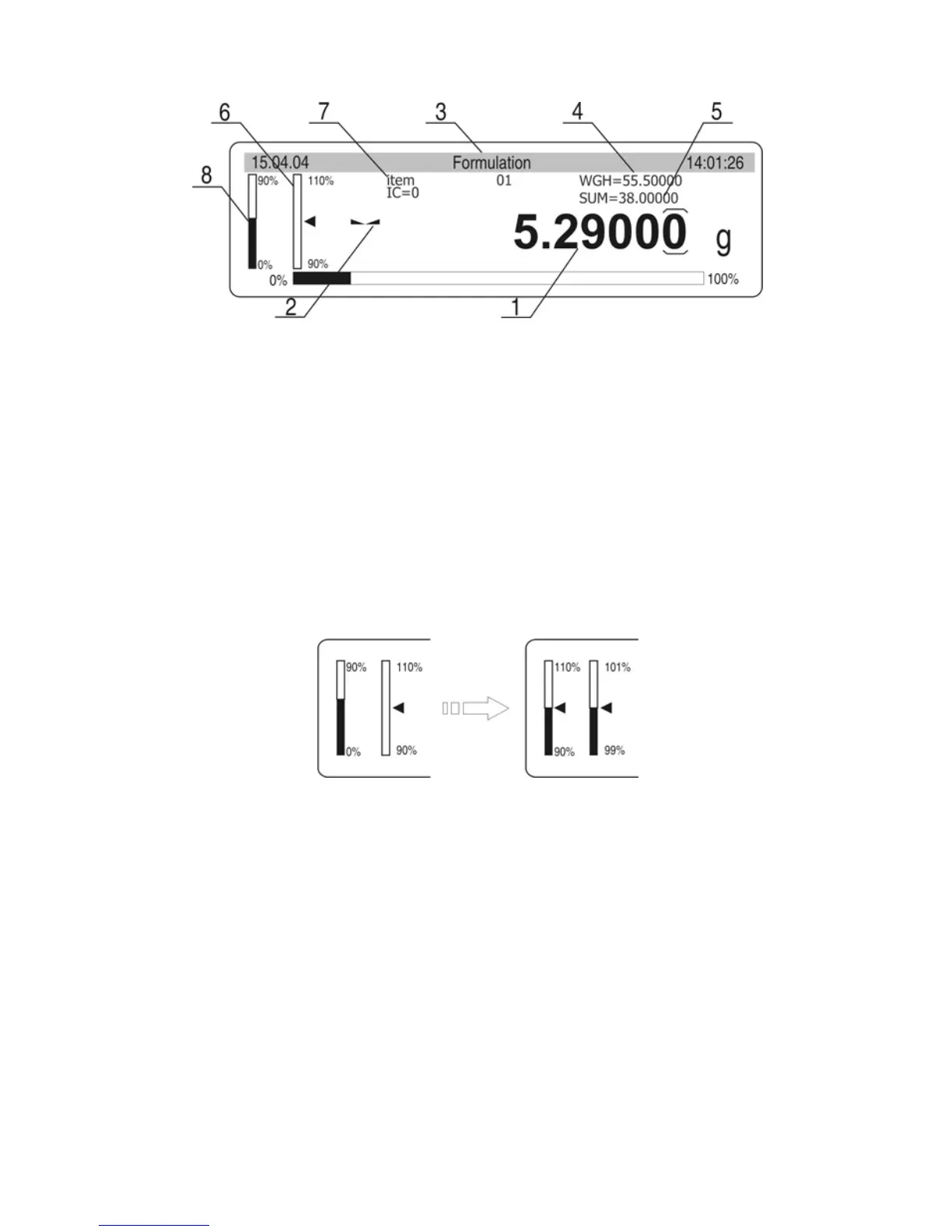

Information on the graphic display for recipes
Draw. 49. Recipes –functions
1 – mass which is actually on the pan.
2 – stable measurement sing
3 – function name
4 – settled mass of the weighed component in the parameter
04 Recipe
5 – Sum of weighed components of the mixture which are in calculate memory of the
balance
6 – quantity of weighed components in the recipe
7 – name of weighed component
8 – side graphs, Information how much left to gain settled component is presented on
these graphs.
Draw. 50. Graphs – automatic scale
Procedure of preparing mixtures – according to recorded components and their
mass in the balance memory
Write names and components mass in the parameter 04 Recipe. Remember about the
dependences:
− there cannot be more than 10 signs
confirm each name by the ENTER key and write mass which will be in the mixture
