Citizen E760 - Disassembly & Assembly Precautions; Setting Stem Removal

11
§11. PRECAUTIONS FOR DISASSEMBLY AND ASSEMBLY

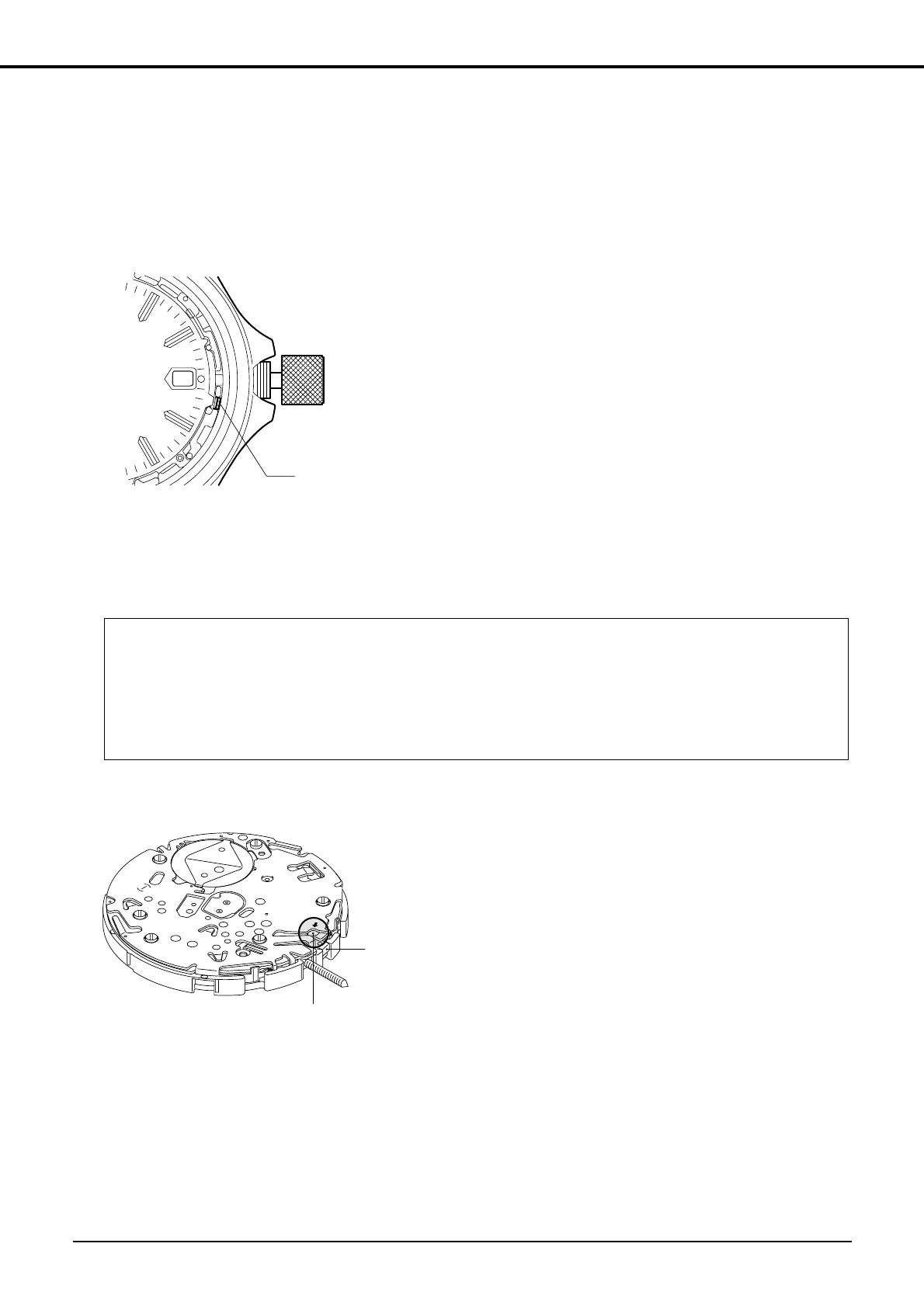

A. How to Pull Out Setting Stem from One-piece Case
1. When removing the setting stem from the case
• Pressing down the end of the unlocking lever for setting stem from above, pull out the setting
stem.
<Procedure>
(1) Set the crown at the normal position (Push it
in).
(2) Lightly press the end of the unlocking lever
for setting stem with a screwdriver, etc. from
above.
(3) With the lever pressed, pull out the setting
stem.
2. When removing the setting stem from the movement
• Pressing the base of the unlocking lever for setting stem (“PUSH →” position), pull out the set-
ting stem.
<Note>
When the movement has been removed from the case, do not press the end of the unlocking
lever for setting stem. If it is pressed in this case, it may be pressed too much to deform
itself, circuit unit supporter, etc. since there is not a stopper.
If the movement is installed to the case with any part deformed, the setting stem may not be
pulled out even if the unlocking lever for setting stem is pressed.
<Procedure>
(1) Set the crown at the normal position (Push it
in).
(2) Lightly press the base of the unlocking lever
for setting stem (“PUSH →” position) with a
screwdriver, etc. from above.
(3) With the lever pressed, pull out the setting
stem.
Unlocking lever
for setting stem
CITIZEN
WATCH CO.
E760M
NO JEWELS
A1
A1
A3
A3
A2
AR
PUSH
Push here lightly
Unlocking lever
for setting stem
