Citizen E760 - Secondary Battery Voltage Check; General Connection Check

18
Check Items How to Check Result and Treatment

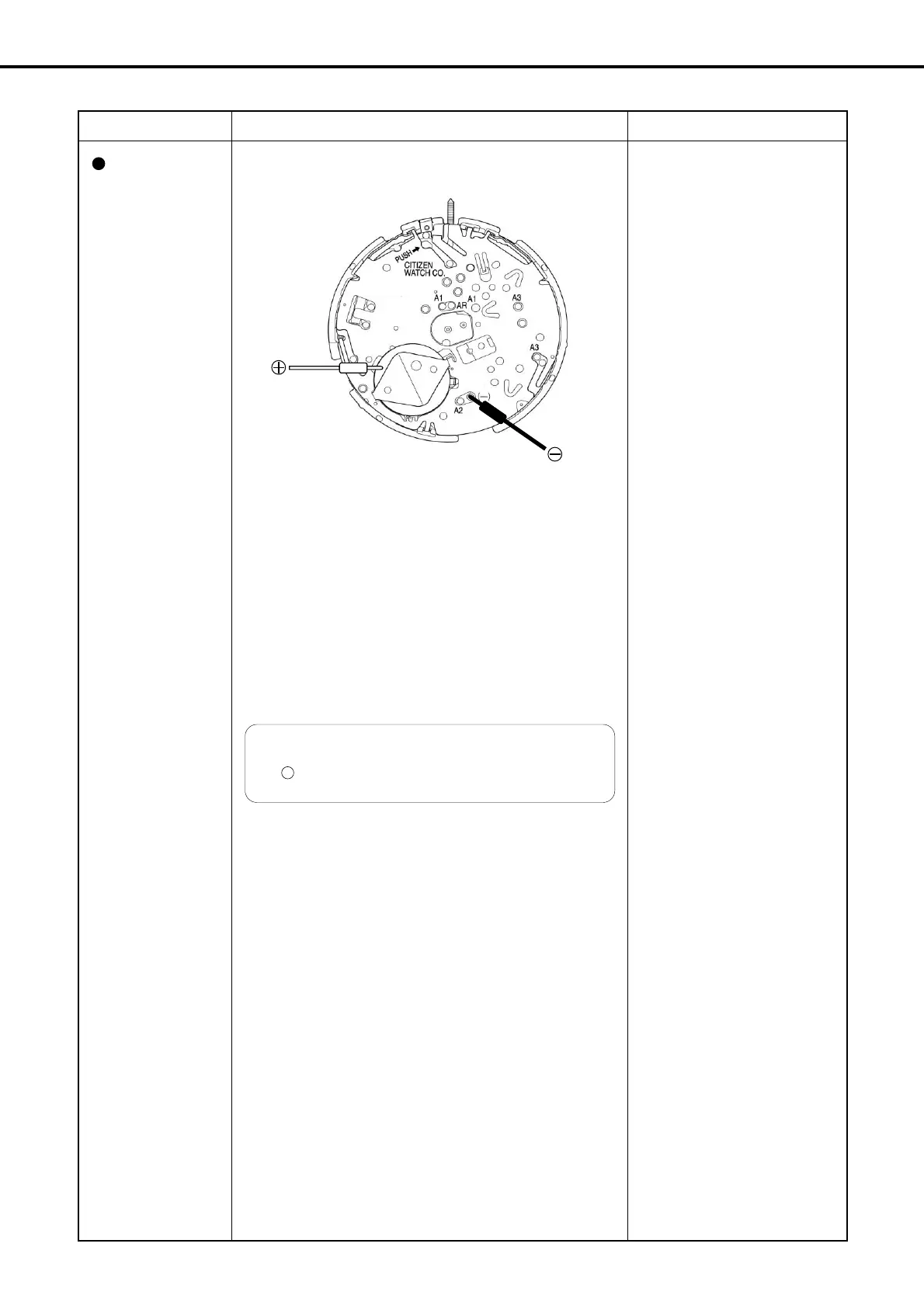

Measurement of
secondary
battery voltage
<Tester range: DC. 3V>
Reference:
¡ 1.1V~1.3V: 2-second interval movement
1.3V~2.6V: Normal 1-second interval movement
¡ 2-second hitch movement is a function that signals that
the watch has stopped and restarted.
This mode will continue until the watch is set to the
correct time, irrespective of the voltage.
¡ In the case the watch has stopped due to insufficient
charging, a minimum of 30 minutes are required until
the watch changes to the time setting warning display
even if sufficiently exposed to light.
Caution:
When measuring the voltage, be careful not to place
the
– tester pin on the supporter for electronic circuit
(a short circuit will occur).
E760M
NO JEWELS
1.3V or higher
→ Good
Below 1.3V
→ Charge.
d
Measure again after charging.
1.3V or higher
→ Check connecting parts.
Below 1.3V
→ Check solar cell.
d
Good
d
Replace secondary battery.
