iDP-562 User’s Manual
CITIZEN 5
4. Operation
4.1 The Ribbon Cassette Installation
For setting the ribbon, disconnect the power source beforehand. When the printing has been continued for many
hours, be careful not touch printer head as it might be hot.
1) Remove the printer cover.
2) While inserting the ribbon into the space between the print head and the ribbon guide, press the cassette into
the holder unit it clicks into place. (Ref. to Fig. 3 & 4)
3) Turn the cassette ribbon knob in the direction of the arrow to take up slack in the ribbon.

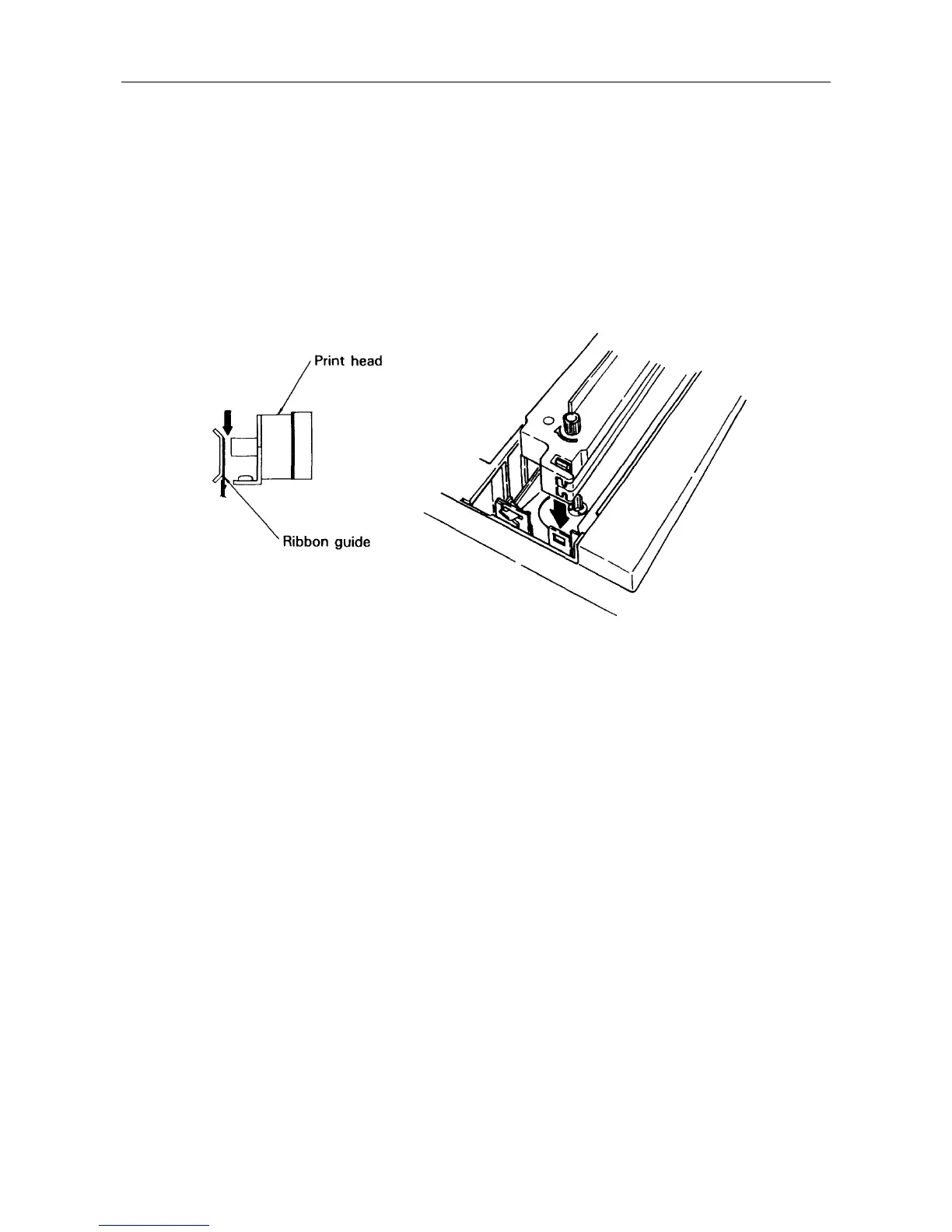

(Fig. 3) (Fig. 4)
