Citizen iDP-562 Series

iDP-562 User’s Manual
CITIZEN 6
4.2 Loading the Paper

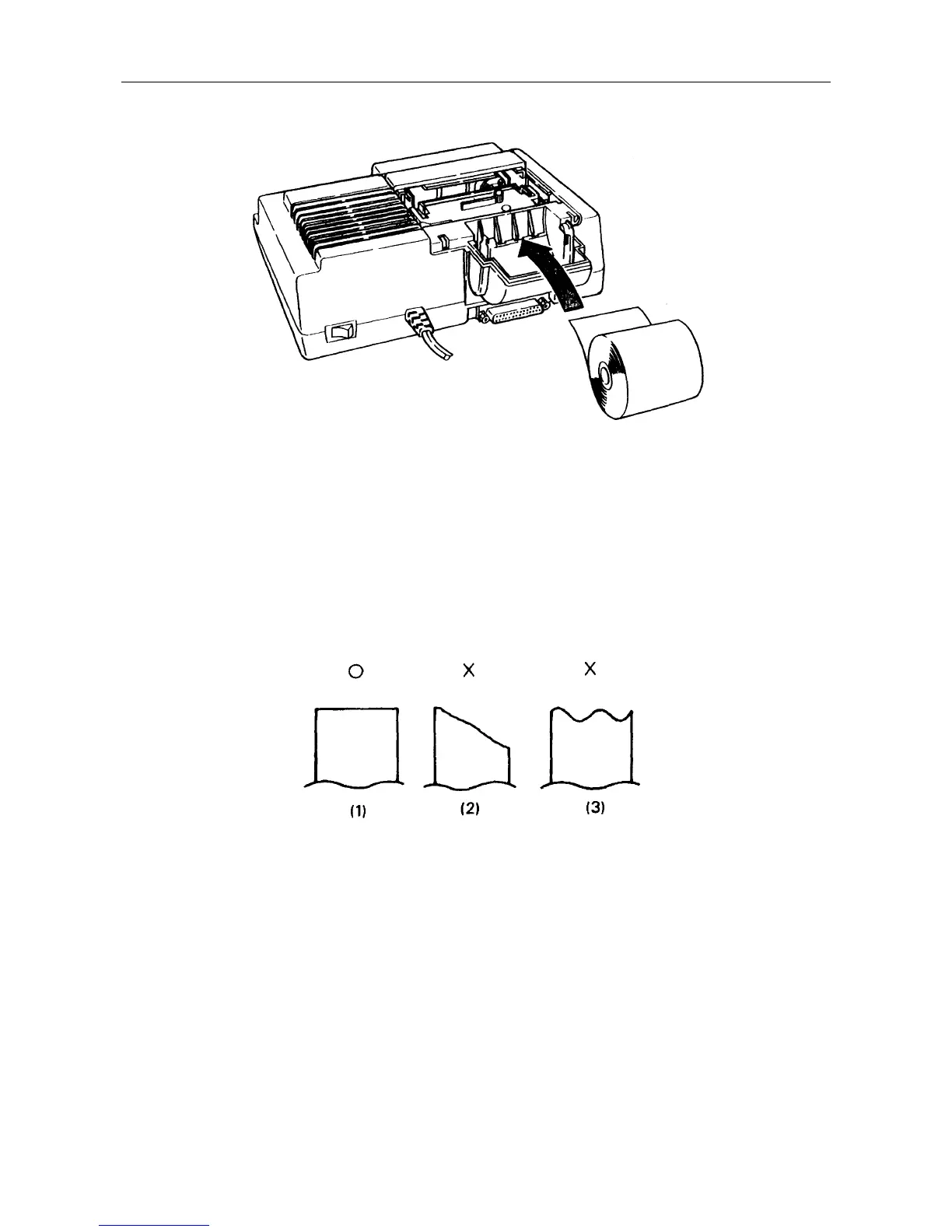

(Fig.5)
Procedures Paper Insertion
1. Turn OFF the power switch.
2. Remove the printer cover.
3. Cut the paper in right angle to its longitudinal center line as shown in Fig. 6.
4. Insert the paper into insertion inlet on the rear side of the printer.
5. Turn on the power switch. And then press LF switch to forward the paper into the printer.
6. Fix the roll paper at paper holder and set the printer cover.
7. Press the LF switch until the paper comes out from the paper exit of the printer cover.
Caution: Do not pull paper to backward.
(Fig. 6)
