In the event of a breakdown
8

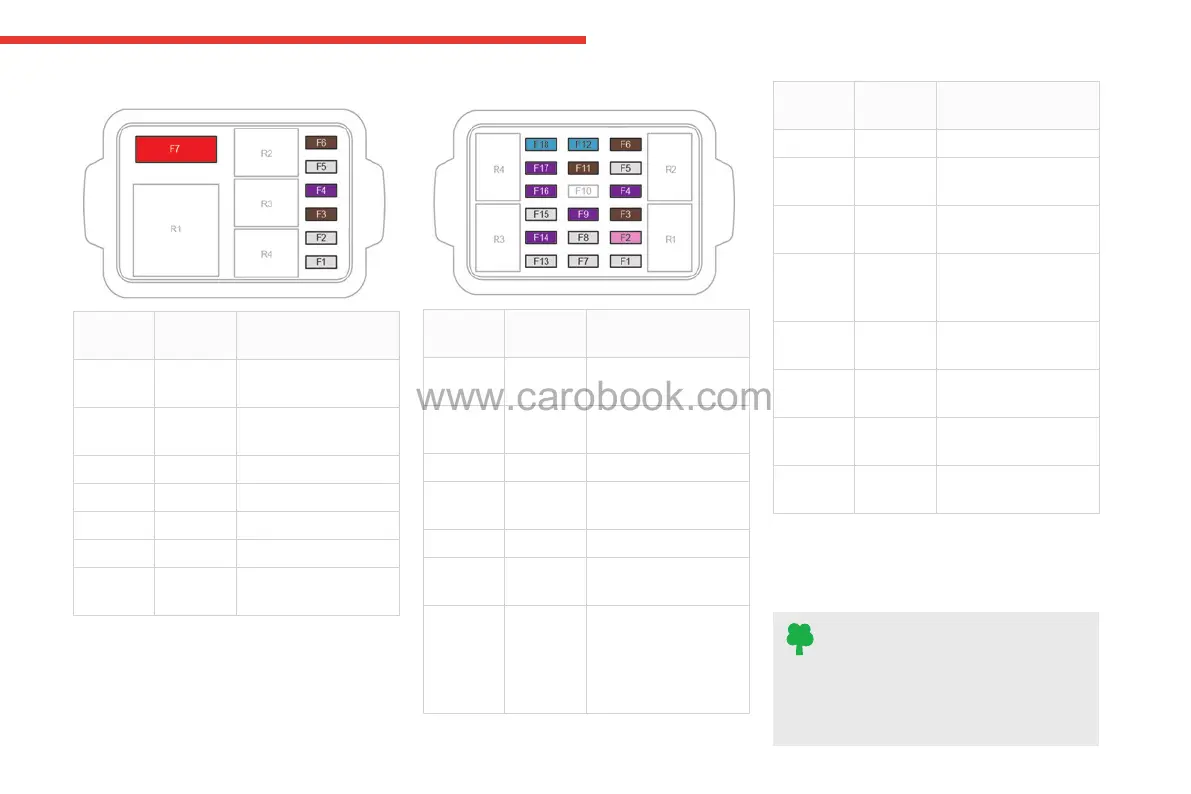

Fuse table - Box 1
Fuse N° Rating
(Amps)
Functions
F1 2 A Brake switch
(+Battery)
F2 2 A Main computer
(+Battery)
F3 7.5 A Fan
F4 3 A Instrument panel
F5 2 A Battery computer
F6 7.5 A Horn
F7 50 A Battery drive train/
DC/DC converter
Fuse table - Box 2
Fuse N° Rating
(Amps)
Functions
F1 2 A Steering mounted
control (left)
F2 4 A Main computer
(+After ignition)
F3 15 A Screenwash pump
F5 2 A Instrument panel
warning lamps
F7 2 A Motor computer
F8 2 A Brake switch (+After
ignition)
F9 3 A USB socket
- Lighting for
ventilation/heating/
demisting buttons,
drive selector
Fuse N° Rating
(Amps)
Functions
F11 7.5 A Diagnostic socket
F12 15 A Wiper motor
(+Battery)
F13 2 A Rear left wheel
speed sensor
F14 3 A Sidelamps front
left and rear right -
Number plate lamp
F15 2 A Sidelamps rear left
and front right
F16 3 A Right-hand dipped
beam headlamp
F17 3 A Left-hand dipped
beam headlamp
F18 15 A Wiper motor (+After
ignition)
12 V battery
Lead-acid starter batteries
These batteries contain harmful
substances (sulphuric acid and lead).
They must be disposed of in accordance
with regulations and must never under any
circumstances be discarded with household
waste.
