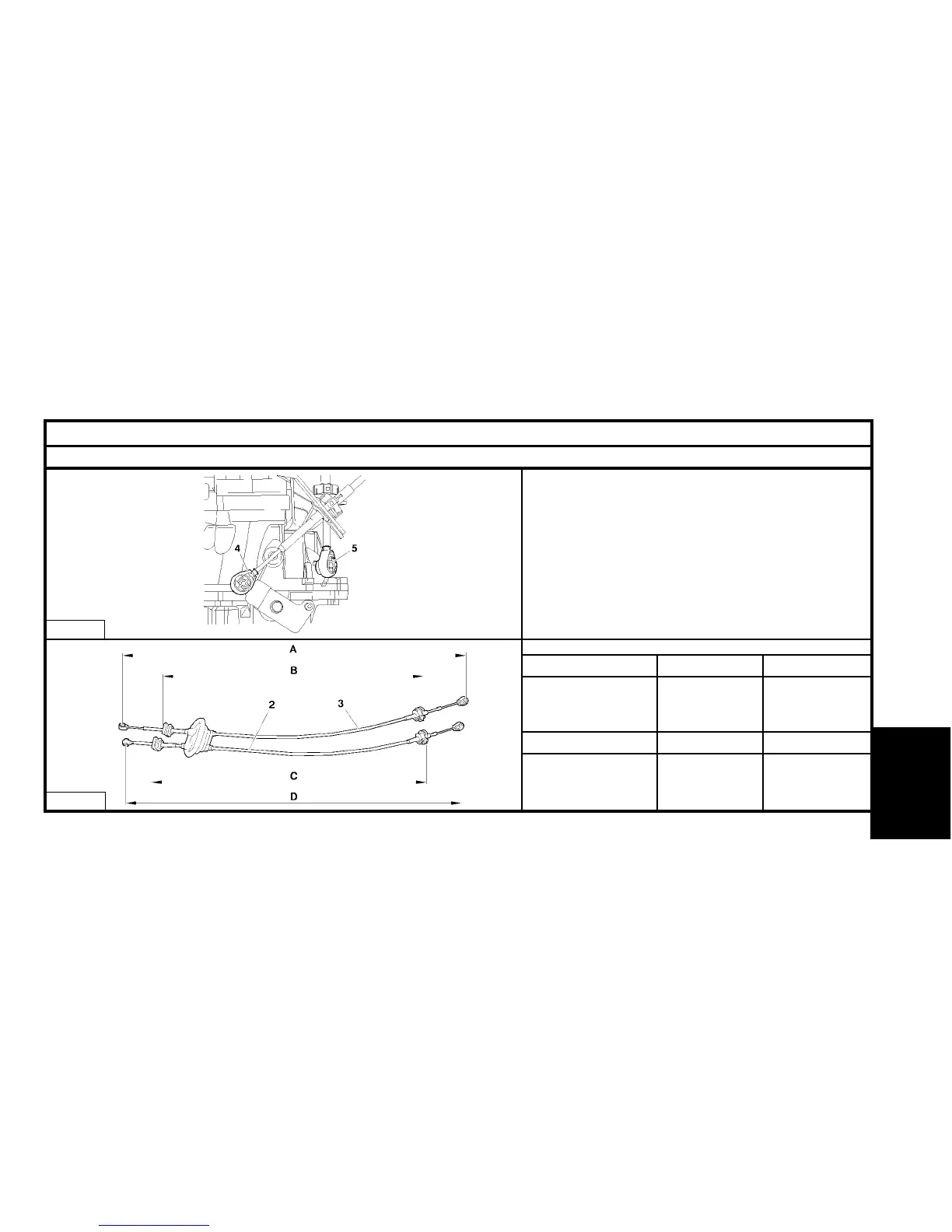

MA/5 GEARBOX CONTROLS

Engines : HFX - KFV - NFU - 8HX - 8HW

(4) Gear engagement ball-joint Ø 10 mm.

(5) Gear selection ball-joint Ø 10 mm.

Length D Length C

Gear engagement

control cable (2)

1015 mm 790 mm

Length A Length B

Gear selection

control cable (3)

1093 mm 775 mm

B2CP3HZD

B2CP3HYC

165

CLUTCH

GEARBOX

DRIVESHAFTS
