CITROEN C3 2002 - Checking and Setting the Valve Timing (8 HY-8 HV)

77
CHECKING AND SETTING THE VALVE TIMING
Engines : 8HY - 8HV
B1BP2N0C
Tools.
[1] Engine flywheel peg Ø 12 mm : (-).0194-C.
[2] Camshaft pulley peg Ø 8 mm : (-).0194-B.
[3] Crankshaft pulley peg Ø 5 mm : (-).0194-A.
Preliminary operations.
Remove:
- The front RH wheel.
- The front RH splash-shield.
- The accessories belt (see corresponding operation).

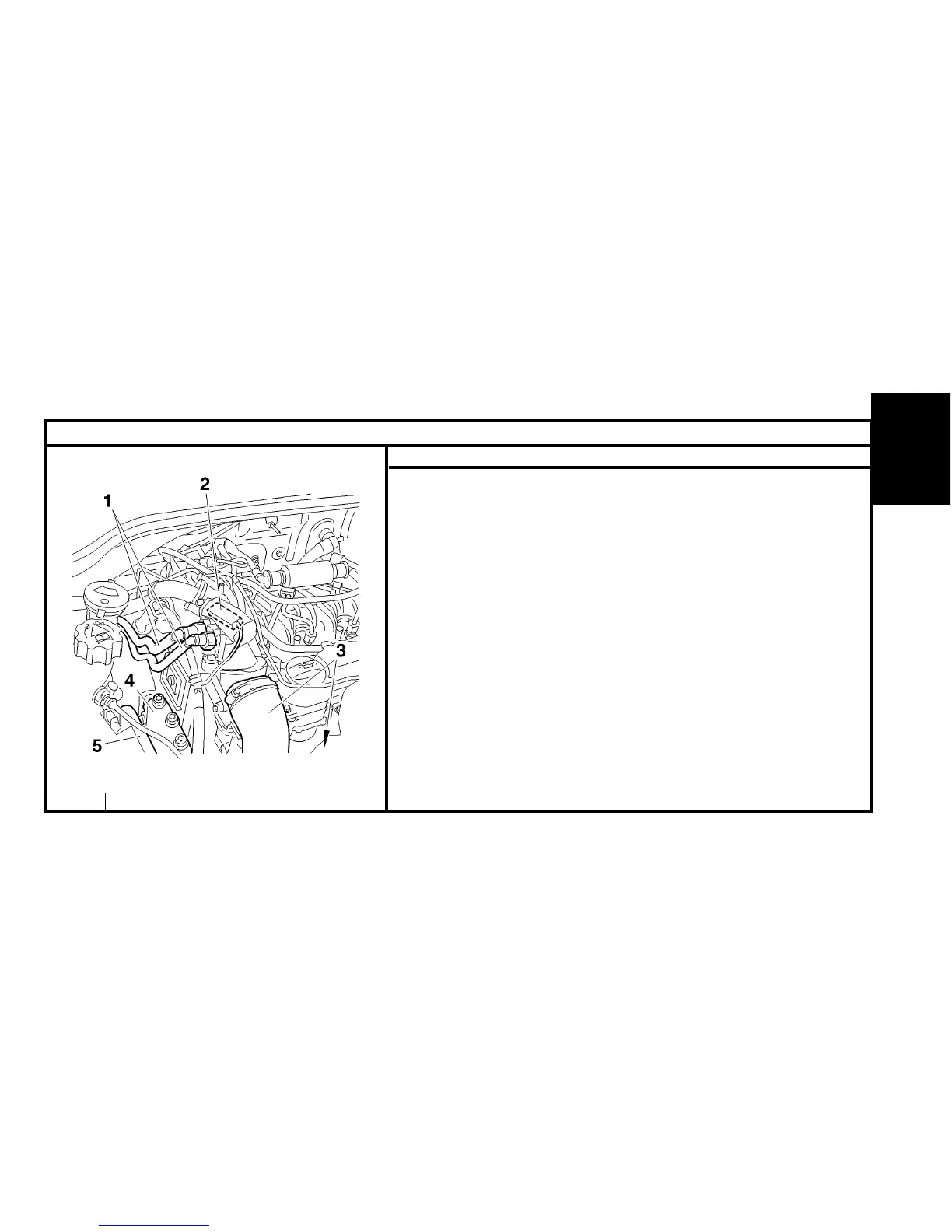

Uncouple:
- The supply unions (1).
- The air/air heat exchanger inlet/outlet pipes (3).
- The exhaust line (at the flexible pipe).
Disconnect the connector (2).
Support the engine by means of a roller jack equipped with a chock.
Remove the engine supports (4) and (5).
ENGINE
