CITROEN C3 2002 - Steering Mechanism

FEATURES OF ELECTRIC POWER STEERING
Engines : HFX – KFV – NFU – 8HX – 8HW – 8HY

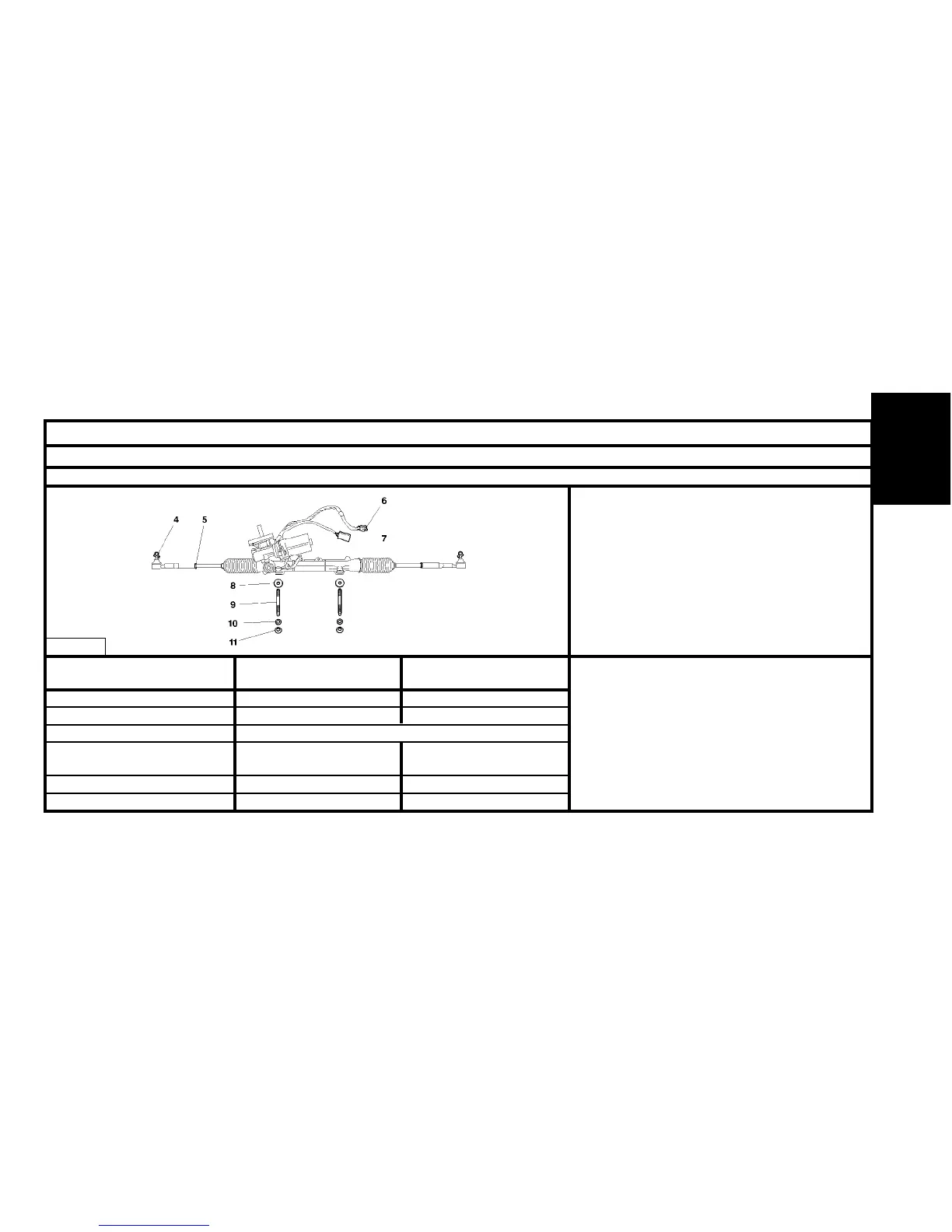

Steering mechanism
Tightening torques m.daN
(4) Ball-joint fixing on pivot : 3.5 ± 0.3
(5) Steering rod lock-nut : 5 ± 0.5
(8) Threaded washer
(9) Stud : 0.8 ± 0.1
(10) Flat washers
(11) Fixing of mechanism on subframe : 8 ± 0.8
Connectors.
(6) Supply of electric assistance motor.
(7) Torque sensor signals.
HFX - KFV - 8HX - 8HW
KFV (Auto.)
NFU - 8HY - 8HV
Electric motor 60 A 65 A
Steering rack travel 2x72 2x64
Steering ratio 45.6/1
Number of rotations
of steering wheel
3.2 2.8
Inner angle of lock 38° 32°30’
Outer angle of lock 32°24’ 28°42’
