CITROEN C3 2002 - Pollen Filter

To Next Page

To Previous Page

SPECIAL FEATURES : AIR CONDITIONING SYSTEM (R 134.a)

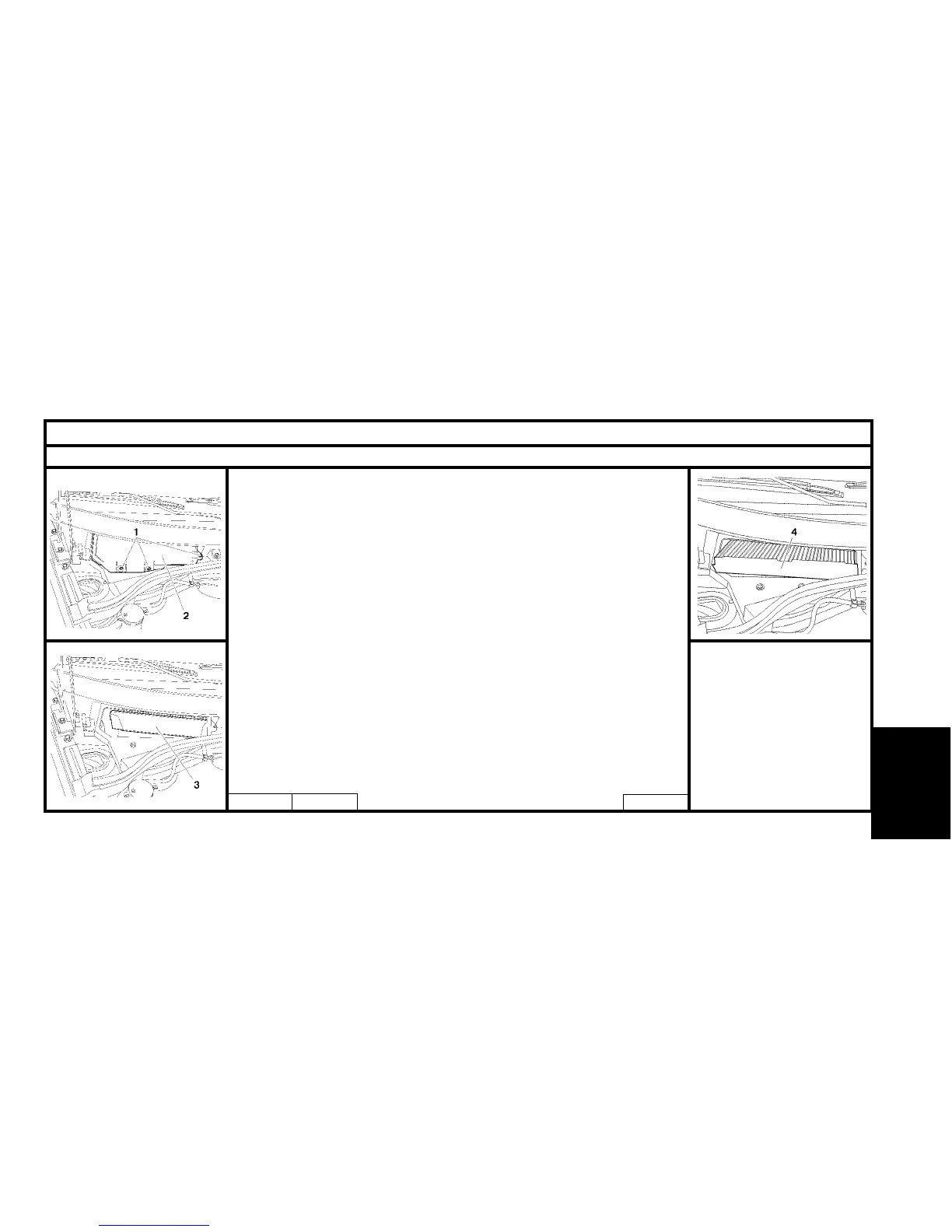

Pollen filter

Note : The pollen filter is located in the engine compartment on the RH side.

Removing

Remove:

- The three screws (1).

- The plastic cover (2).

Tilt the flap (3).

Remove the pollen filter (4).

Refitting

Proceed in reverse order.

C4AP169C C4AP16AC

C4AP16BC

215

AIR

CONDITIONING
